SN74F112D

SN74F112D Overview

Product belongs to the 74F series. Type: JK Type Tube Alternate Packaging is the packaging method for this product Weight of 0.004998 oz SMD/SMT Mounting-Style SOIC-16 The TTL for this product is CMOS/TTL. Operational temperature range: 0°C ~ 70°C (TA) Surface Mount mounting type Output-Type: Differential Product function is Set(Preset) and Reset. Voltage Supply Range: 4.5 V ~ 5.5 V 2 is 8. 130MHz is 26GHz. 2 element J-K Flip-Flop logic type 1 bits per element Negative Edge trigger type Maximum operating temperature of + 70 C Minimum operating temperature: 0 C Polarity: Inverting/Non-Inverting Maximum supply voltage of 5.5 V Minimum supply voltage is 4.5 V F logic type 6.5 ns is 23 microseconds. High-Level-Output-Current of - 1 mA 20 mA low-level output current Number-of-Input-Lines: 2 Number-of-Output-Lines: 1

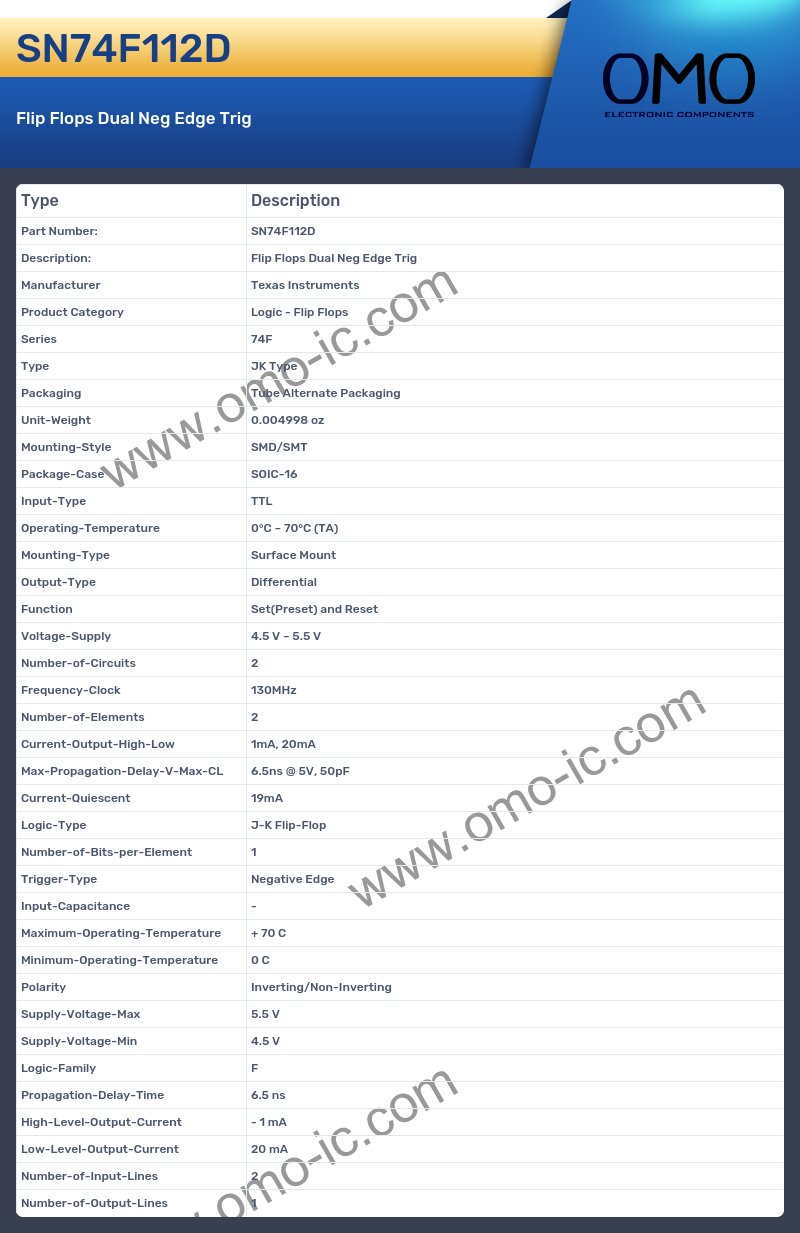

SN74F112D Image

SN74F112D Specifications

• Manufacturer Texas Instruments
• Product Category Logic - Flip Flops
• Series 74F
• Type JK Type
• Packaging Tube Alternate Packaging
• Unit-Weight 0.004998 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-16
• Input-Type TTL
• Operating-Temperature 0°C ~ 70°C (TA)
• Mounting-Type Surface Mount
• Output-Type Differential
• Function Set(Preset) and Reset
• Voltage-Supply 4.5 V ~ 5.5 V
• Number-of-Circuits 2
• Frequency-Clock 130MHz
• Number-of-Elements 2
• Current-Output-High-Low 1mA, 20mA
• Max-Propagation-Delay-V-Max-CL 6.5ns @ 5V, 50pF
• Current-Quiescent 19mA
• Logic-Type J-K Flip-Flop
• Number-of-Bits-per-Element 1
• Trigger-Type Negative Edge
• Input-Capacitance -
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Polarity Inverting/Non-Inverting
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 4.5 V
• Logic-Family F
• Propagation-Delay-Time 6.5 ns
• High-Level-Output-Current - 1 mA
• Low-Level-Output-Current 20 mA
• Number-of-Input-Lines 2
• Number-of-Output-Lines 1
