SN74HC166DBR

SN74HC166DBR Overview

Product belongs to the 74HC series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.004586 oz SMD/SMT Mounting-Style SSOP-16 Operational temperature range: -40°C ~ 85°C Surface Mount mounting type Output-Type: Push-Pull Product function is Parallel or Serial to Serial. Voltage Supply Range: 2 V ~ 6 V Supplier device package: 16-SSOP 1 is 8. 8 bit bits 1 element Shift Register logic type 8 bits per element Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product operates at a 5 V supply voltage for reliable performance. Maximum supply voltage of 6 V Minimum supply voltage is 2 V HC logic type Serial/Parallel to Serial counting sequence 150 ns 30 ns 26 ns is 23 microseconds. Number-of-Input-Lines: 9 Number-of-Output-Lines: 1 Positive Edge triggering type This product features an Asynchronous reset type, ensuring reliable and predictable performance.

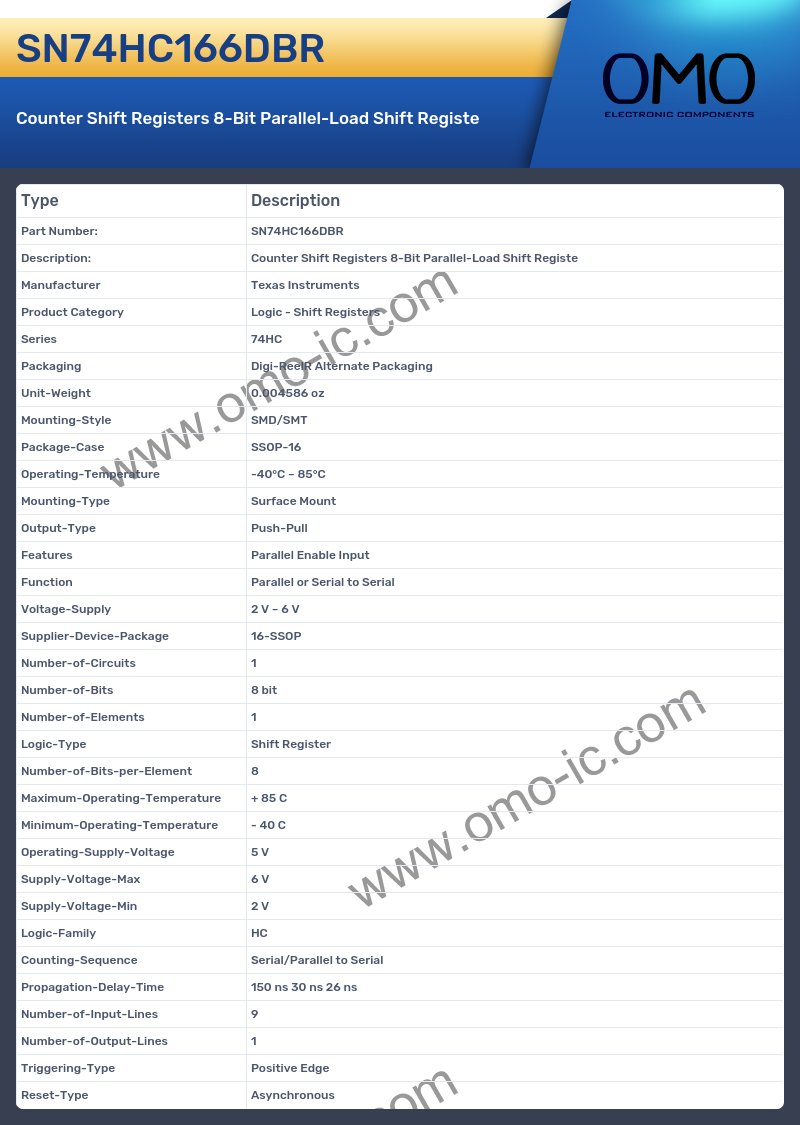

SN74HC166DBR Image

SN74HC166DBR Specifications

• Manufacturer Texas Instruments
• Product Category Logic - Shift Registers
• Series 74HC
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.004586 oz
• Mounting-Style SMD/SMT
• Package-Case SSOP-16
• Operating-Temperature -40°C ~ 85°C
• Mounting-Type Surface Mount
• Output-Type Push-Pull
• Features Parallel Enable Input
• Function Parallel or Serial to Serial
• Voltage-Supply 2 V ~ 6 V
• Supplier-Device-Package 16-SSOP
• Number-of-Circuits 1
• Number-of-Bits 8 bit
• Number-of-Elements 1
• Logic-Type Shift Register
• Number-of-Bits-per-Element 8
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 5 V
• Supply-Voltage-Max 6 V
• Supply-Voltage-Min 2 V
• Logic-Family HC
• Counting-Sequence Serial/Parallel to Serial
• Propagation-Delay-Time 150 ns 30 ns 26 ns
• Number-of-Input-Lines 9
• Number-of-Output-Lines 1
• Triggering-Type Positive Edge
• Reset-Type Asynchronous
