SN74LS629D

SN74LS629D Overview

Product belongs to the 74LS series. Type: VCO (Dual) Tube is the packaging method for this product Weight of 0.004938 oz SMD/SMT Mounting-Style SOIC-16 This product's 20MHz range is 0Hz to 2.2GHz. Operational temperature range: 0°C ~ 70°C Surface Mount mounting type Voltage Supply Range: 4.75 V ~ 5.25 V Supplier device package: 16-SOIC The 45 pF is 1000 pF, providing stable and reliable performance. This product has a 35mA of 200μA. Maximum operating temperature of + 70 C Minimum operating temperature: 0 C This product operates at a 5 V supply voltage for reliable performance. Maximum supply voltage of 5.25 V Minimum supply voltage is 4.75 V Maximum duty cycle of 50 %

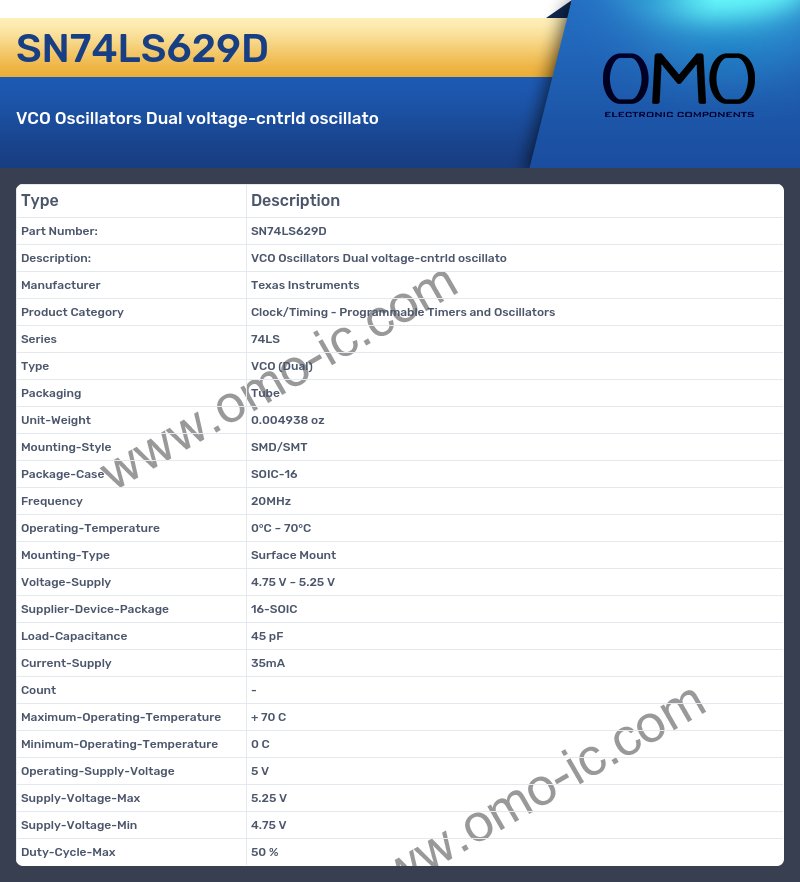

SN74LS629D Image

SN74LS629D Specifications

• Manufacturer Texas Instruments
• Product Category Clock/Timing - Programmable Timers and Oscillators
• Series 74LS
• Type VCO (Dual)
• Packaging Tube
• Unit-Weight 0.004938 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-16
• Frequency 20MHz
• Operating-Temperature 0°C ~ 70°C
• Mounting-Type Surface Mount
• Voltage-Supply 4.75 V ~ 5.25 V
• Supplier-Device-Package 16-SOIC
• Load-Capacitance 45 pF
• Current-Supply 35mA
• Count -
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Operating-Supply-Voltage 5 V
• Supply-Voltage-Max 5.25 V
• Supply-Voltage-Min 4.75 V
• Duty-Cycle-Max 50 %
