| Mfr. #: | SN74LS76AN |
|---|---|
| 製造商: | Texas Instruments |
| 描述: | IC FF JK TYPE DUAL 1BIT 16DIP |
| 生命週期: | 製造商新產品 |
| 數據表: | SN74LS76AN 數據表 |
Product belongs to the - series. Tube is the packaging method for this product Product Obsolete Product function is Set(Preset) and Reset. Type: JK Type Output Type is Differential 2-elemented 1 Number of Bits per Element The 45MHz Clock Frequency; The Maximum Propagation Delay at V and Maximum CL is 20ns @ 5V, 15pF. Negative Edge triggered 400A, 8mA Current Output High and Low; The supply voltage is set to 4.75 V ~ 5.25 V. The 4mA Current - Quiescent (Iq) Operating Temperature of 0°C ~ 70°C (TA) This product has a Through Hole. Package type is 16-DIP (0.300", 7.62mm)
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

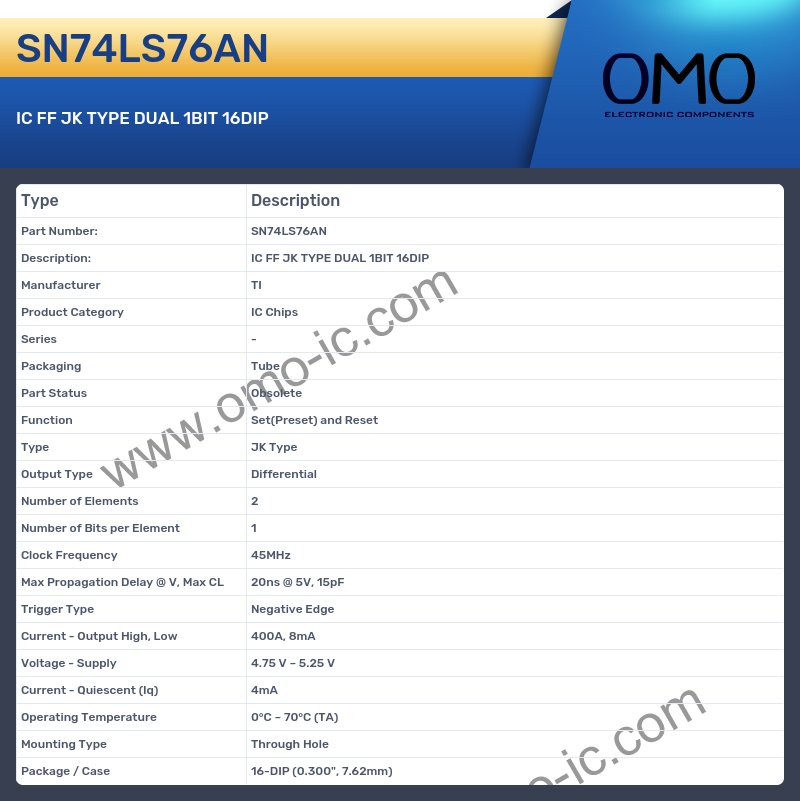

SN74LS76AN Specifications
A: Is the cutoff frequency of the product Series?
Q: Yes, the product's Series is indeed -
A: Is the cutoff frequency of the product Packaging?
Q: Yes, the product's Packaging is indeed Tube
A: At what frequency does the Part Status?
Q: The product Part Status is Obsolete.
A: What is the Function of the product?
Q: The Function of the product is Set(Preset) and Reset.
A: Is the cutoff frequency of the product Type?
Q: Yes, the product's Type is indeed JK Type
A: Is the cutoff frequency of the product Output Type?
Q: Yes, the product's Output Type is indeed Differential
A: At what frequency does the Number of Elements?
Q: The product Number of Elements is 2.
A: What is the Number of Bits per Element of the product?
Q: The Number of Bits per Element of the product is 1.
A: Is the cutoff frequency of the product Clock Frequency?
Q: Yes, the product's Clock Frequency is indeed 45MHz
A: What is the Max Propagation Delay @ V, Max CL of the product?
Q: The Max Propagation Delay @ V, Max CL of the product is 20ns @ 5V, 15pF.
A: Is the cutoff frequency of the product Trigger Type?
Q: Yes, the product's Trigger Type is indeed Negative Edge
A: What is the Current - Output High, Low of the product?
Q: The Current - Output High, Low of the product is 400A, 8mA.
A: What is the Voltage - Supply of the product?
Q: The Voltage - Supply of the product is 4.75 V ~ 5.25 V.
A: At what frequency does the Current - Quiescent (Iq)?
Q: The product Current - Quiescent (Iq) is 4mA.
A: At what frequency does the Operating Temperature?
Q: The product Operating Temperature is 0°C ~ 70°C (TA).
A: What is the Mounting Type of the product?
Q: The Mounting Type of the product is Through Hole.
A: What is the Package / Case of the product?
Q: The Package / Case of the product is 16-DIP (0.300", 7.62mm).
