SN74LS90DR

SN74LS90DR Overview

Product belongs to the 74LS series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.004564 oz SMD/SMT Mounting-Style Wide 0 C to + 70 C operating temperature range for diverse applications SOIC-14 Operational temperature range: 0°C ~ 70°C Surface Mount mounting type Up directionality Voltage Supply Range: 4.75 V ~ 5.25 V Supplier device package: 14-SOIC 4 bit bits 1 element Counter, Decade logic type 4 bits per element This product's Asynchronous. - timing The 42MHz count rate. Negative Edge trigger type This product operates at a 4.75 V to 5.25 V supply voltage for reliable performance. Decade Counter-Type LS logic type Up counting sequence

SN74LS90DR Image

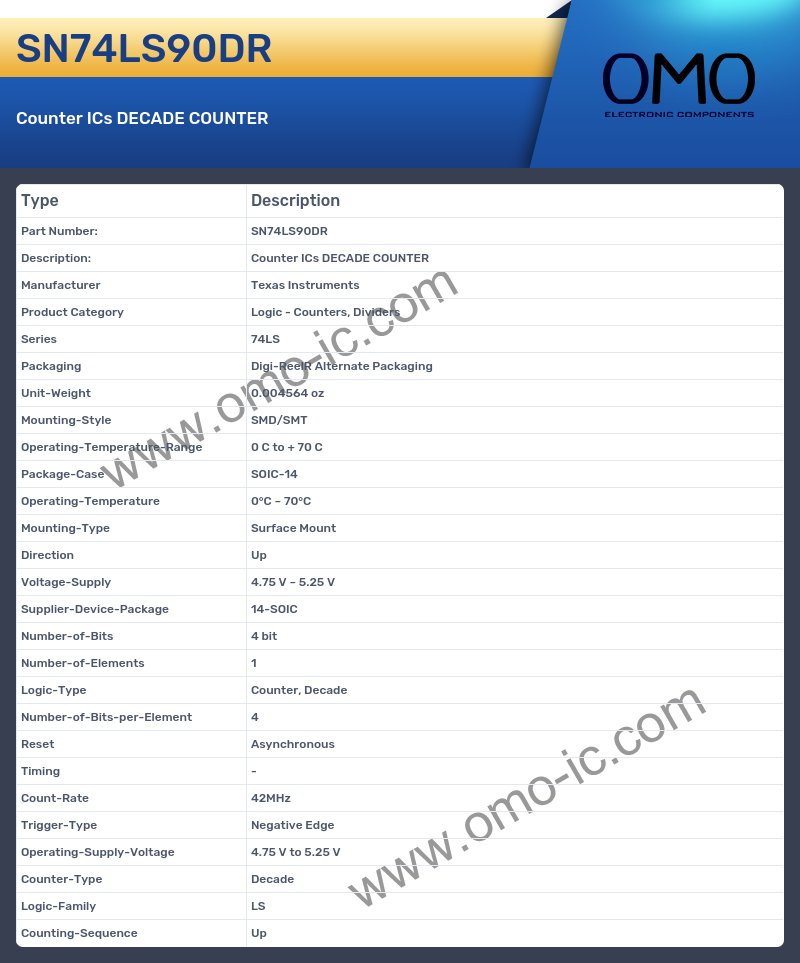

SN74LS90DR Specifications

• Manufacturer Texas Instruments
• Product Category Logic - Counters, Dividers
• Series 74LS
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.004564 oz
• Mounting-Style SMD/SMT
• Operating-Temperature-Range 0 C to + 70 C
• Package-Case SOIC-14
• Operating-Temperature 0°C ~ 70°C
• Mounting-Type Surface Mount
• Direction Up
• Voltage-Supply 4.75 V ~ 5.25 V
• Supplier-Device-Package 14-SOIC
• Number-of-Bits 4 bit
• Number-of-Elements 1
• Logic-Type Counter, Decade
• Number-of-Bits-per-Element 4
• Reset Asynchronous
• Timing -
• Count-Rate 42MHz
• Trigger-Type Negative Edge
• Operating-Supply-Voltage 4.75 V to 5.25 V
• Counter-Type Decade
• Logic-Family LS
• Counting-Sequence Up
