SN74LVC125AMDREP

SN74LVC125AMDREP Overview

Product belongs to the 74LVC series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.004318 oz SMD/SMT Mounting-Style SOIC-14 Operational temperature range: -55°C ~ 125°C Surface Mount mounting type Output-Type: 3-State Number of channels: 4 Voltage Supply Range: 1.65 V ~ 3.6 V Supplier device package: 14-SOIC 4 element Buffer/Line Driver, Non-Inverting logic type 1 bits per element Maximum operating temperature of + 125 C Minimum operating temperature: - 55 C Polarity: Non-Inverting 10 uA is 92 nA. This product is also known as V62/04656-02YE and can be referred to by either part number. Maximum supply voltage of 3.6 V Minimum supply voltage is 1.65 V LVC logic type 7 ns at 2.7 V is 23 microseconds. High-Level-Output-Current of - 24 mA 24 mA low-level output current Number-of-Input-Lines: 4 Input Number-of-Output-Lines: 4 Output

SN74LVC125AMDREP Image

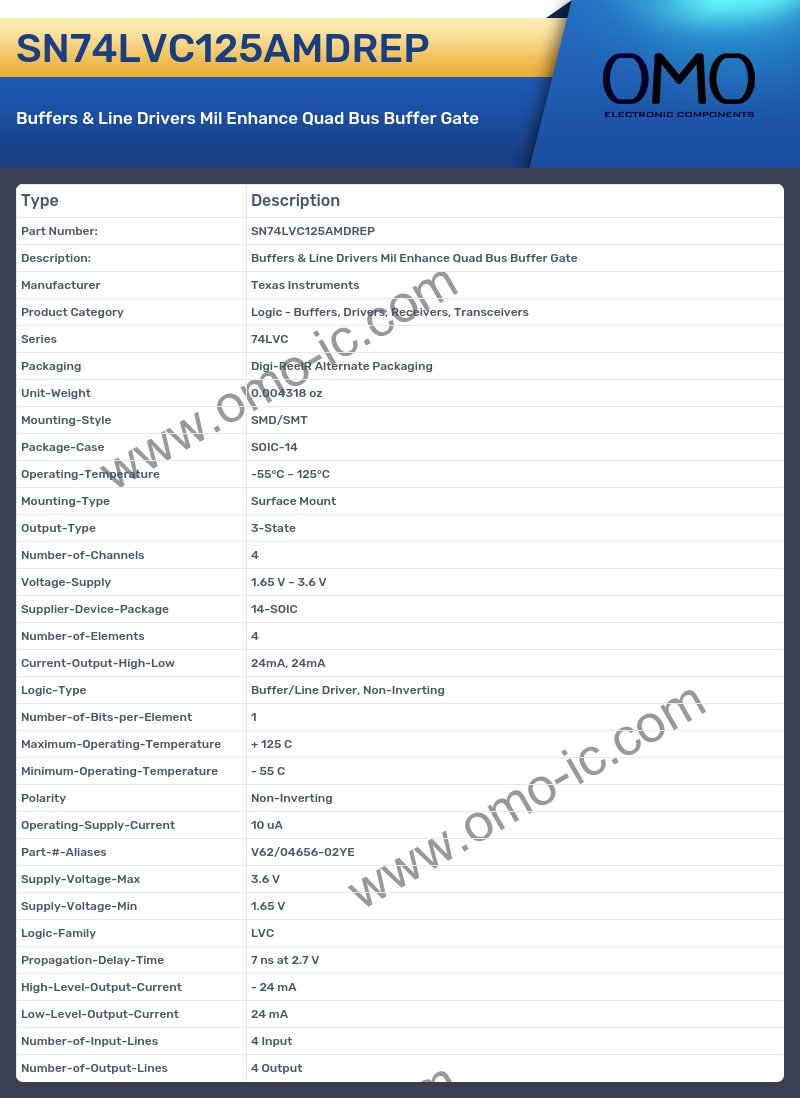

SN74LVC125AMDREP Specifications

• Manufacturer Texas Instruments
• Product Category Logic - Buffers, Drivers, Receivers, Transceivers
• Series 74LVC
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.004318 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-14
• Operating-Temperature -55°C ~ 125°C
• Mounting-Type Surface Mount
• Output-Type 3-State
• Number-of-Channels 4
• Voltage-Supply 1.65 V ~ 3.6 V
• Supplier-Device-Package 14-SOIC
• Number-of-Elements 4
• Current-Output-High-Low 24mA, 24mA
• Logic-Type Buffer/Line Driver, Non-Inverting
• Number-of-Bits-per-Element 1
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 55 C
• Polarity Non-Inverting
• Operating-Supply-Current 10 uA
• Part-#-Aliases V62/04656-02YE
• Supply-Voltage-Max 3.6 V
• Supply-Voltage-Min 1.65 V
• Logic-Family LVC
• Propagation-Delay-Time 7 ns at 2.7 V
• High-Level-Output-Current - 24 mA
• Low-Level-Output-Current 24 mA
• Number-of-Input-Lines 4 Input
• Number-of-Output-Lines 4 Output
