SN74LVC2G74DCTR

SN74LVC2G74DCTR Overview

Product belongs to the 74LVC series. Type: D-Type Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.000825 oz SMD/SMT Mounting-Style SSOP-8 The Single-Ended for this product is CMOS/TTL. Operational temperature range: -40°C ~ 125°C (TA) Surface Mount mounting type Output-Type: Differential Product function is Set(Preset) and Reset. Voltage Supply Range: 1.65 V ~ 5.5 V 1 is 8. 200MHz is 26GHz. 1 element CMOS logic type 1 bits per element Positive Edge trigger type Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Polarity: Inverting/Non-Inverting Maximum supply voltage of 5.5 V Minimum supply voltage is 1.65 V 74LVC logic type 6.2 ns is 23 microseconds. High-Level-Output-Current of - 32 mA 32 mA low-level output current Number-of-Input-Lines: 1 Number-of-Output-Lines: 1

SN74LVC2G74DCTR Image

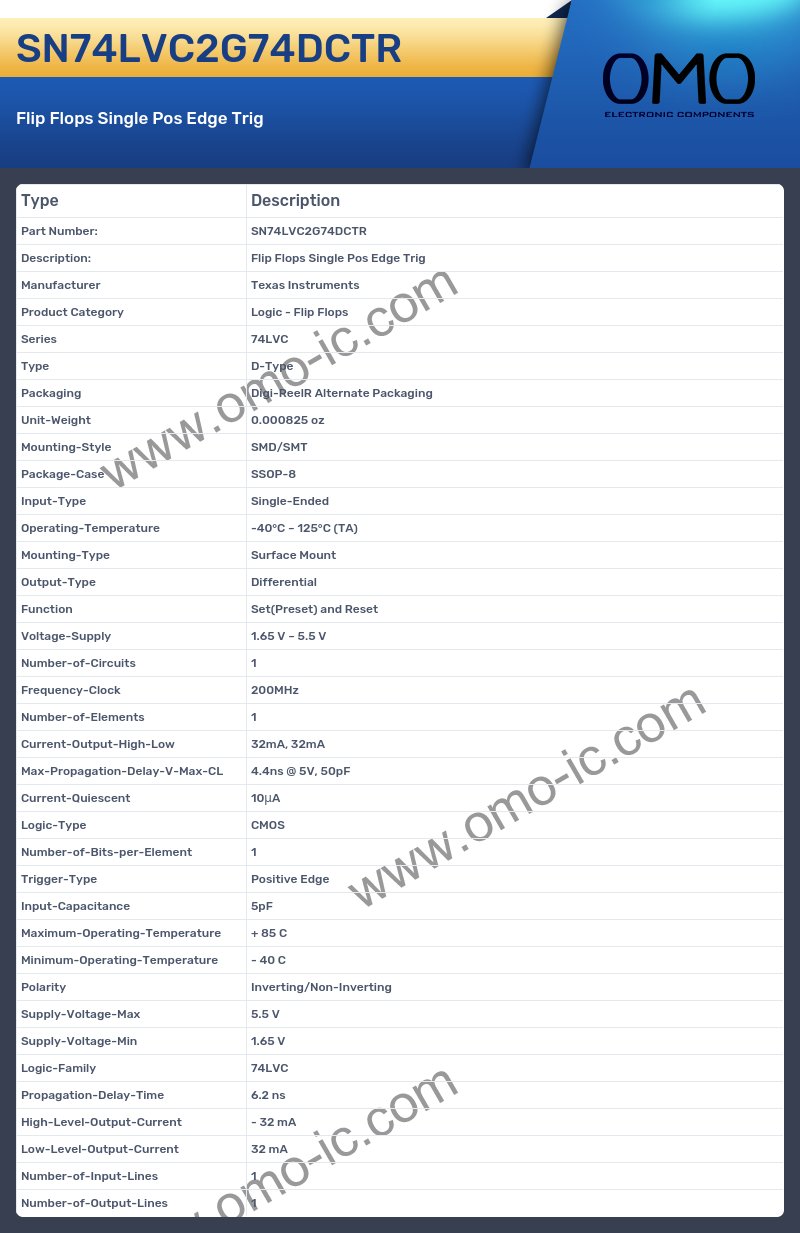

SN74LVC2G74DCTR Specifications

• Manufacturer Texas Instruments
• Product Category Logic - Flip Flops
• Series 74LVC
• Type D-Type
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.000825 oz
• Mounting-Style SMD/SMT
• Package-Case SSOP-8
• Input-Type Single-Ended
• Operating-Temperature -40°C ~ 125°C (TA)
• Mounting-Type Surface Mount
• Output-Type Differential
• Function Set(Preset) and Reset
• Voltage-Supply 1.65 V ~ 5.5 V
• Number-of-Circuits 1
• Frequency-Clock 200MHz
• Number-of-Elements 1
• Current-Output-High-Low 32mA, 32mA
• Max-Propagation-Delay-V-Max-CL 4.4ns @ 5V, 50pF
• Current-Quiescent 10μA
• Logic-Type CMOS
• Number-of-Bits-per-Element 1
• Trigger-Type Positive Edge
• Input-Capacitance 5pF
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Polarity Inverting/Non-Inverting
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 1.65 V
• Logic-Family 74LVC
• Propagation-Delay-Time 6.2 ns
• High-Level-Output-Current - 32 mA
• Low-Level-Output-Current 32 mA
• Number-of-Input-Lines 1
• Number-of-Output-Lines 1
