SN74LVC32AMDREP

SN74LVC32AMDREP Overview

Product belongs to the 74LVC series. This product is categorized as Single-Function Gate Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.004564 oz SMD/SMT Mounting-Style Wide - 55 C to + 125 C operating temperature range for diverse applications SOIC-14 Operational temperature range: -55°C ~ 125°C Surface Mount mounting type Voltage Supply Range: 2 V ~ 3.6 V Supplier device package: 14-SOIC 4 is 8. 4 Gate is the number of gates included in this product. 10μA maximum quiescent current. OR Gate logic type 0.8V is a Logic-Level-Low; 2V is the Logic-Level-High Maximum operating temperature of + 125 C Minimum operating temperature: - 55 C This product is also known as V62/04661-02XE and can be referred to by either part number. Maximum supply voltage of 3.6 V Minimum supply voltage is 2 V LVC logic type 4.4 ns is 23 microseconds. High-Level-Output-Current of - 24 mA 24 mA low-level output current Number-of-Input-Lines: 2 Input Number-of-Output-Lines: 1 Output OR logic function

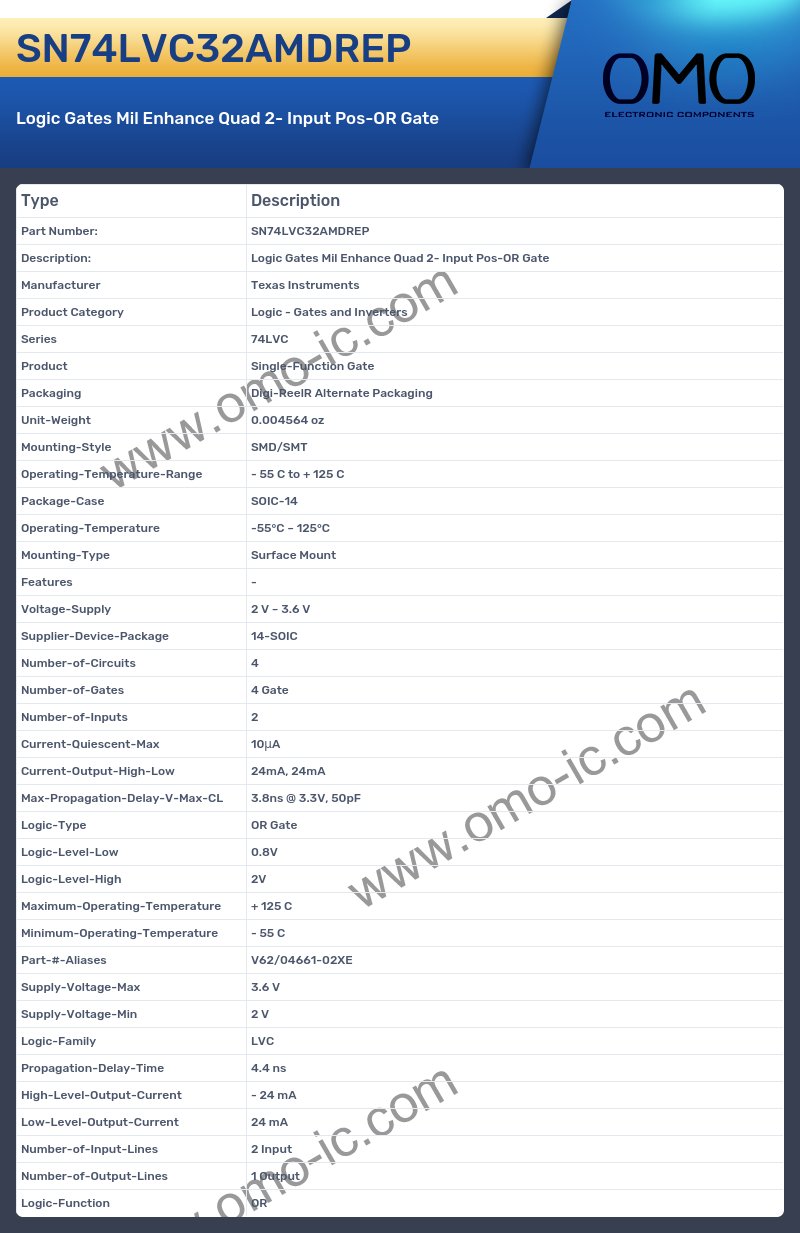

SN74LVC32AMDREP Image

SN74LVC32AMDREP Specifications

• Manufacturer Texas Instruments
• Product Category Logic - Gates and Inverters
• Series 74LVC
• Product Single-Function Gate
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.004564 oz
• Mounting-Style SMD/SMT
• Operating-Temperature-Range - 55 C to + 125 C
• Package-Case SOIC-14
• Operating-Temperature -55°C ~ 125°C
• Mounting-Type Surface Mount
• Features -
• Voltage-Supply 2 V ~ 3.6 V
• Supplier-Device-Package 14-SOIC
• Number-of-Circuits 4
• Number-of-Gates 4 Gate
• Number-of-Inputs 2
• Current-Quiescent-Max 10μA
• Current-Output-High-Low 24mA, 24mA
• Max-Propagation-Delay-V-Max-CL 3.8ns @ 3.3V, 50pF
• Logic-Type OR Gate
• Logic-Level-Low 0.8V
• Logic-Level-High 2V
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 55 C
• Part-#-Aliases V62/04661-02XE
• Supply-Voltage-Max 3.6 V
• Supply-Voltage-Min 2 V
• Logic-Family LVC
• Propagation-Delay-Time 4.4 ns
• High-Level-Output-Current - 24 mA
• Low-Level-Output-Current 24 mA
• Number-of-Input-Lines 2 Input
• Number-of-Output-Lines 1 Output
• Logic-Function OR
