| Mfr. #: | SN75469N |
|---|---|
| 製造商: | Texas Instruments |
| 描述: | Darlington Transistors High V Darlington |
| 生命週期: | 製造商新產品 |
| 數據表: | SN75469N 數據表 |
Product belongs to the SN75469 series. Tube Alternate Packaging is the packaging method for this product Weight of 0.033570 oz Through Hole Mounting-Style 16-DIP (0.300", 7.62mm) Through Hole mounting type Supplier device package: 16-PDIP Configuration Array 7 Transistor type: 7 NPN Darlington Maximum current collector Ic is 500mA . Maximum collector-emitter breakdown voltage of 100V DC current gain minimum (hFE) of Ic/Vce at -. Product Attribute: Vce-Saturation-Max-Ib-Ic: 1.6V @ 500μA, 350mA Maximum operating temperature of + 70 C Minimum operating temperature: 0 C Rated VCEO up to 100 V The transistor polarity is NPN. Max DC collector current: 0.5 A 500 uA Maximum Collector Cut-off Current;
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

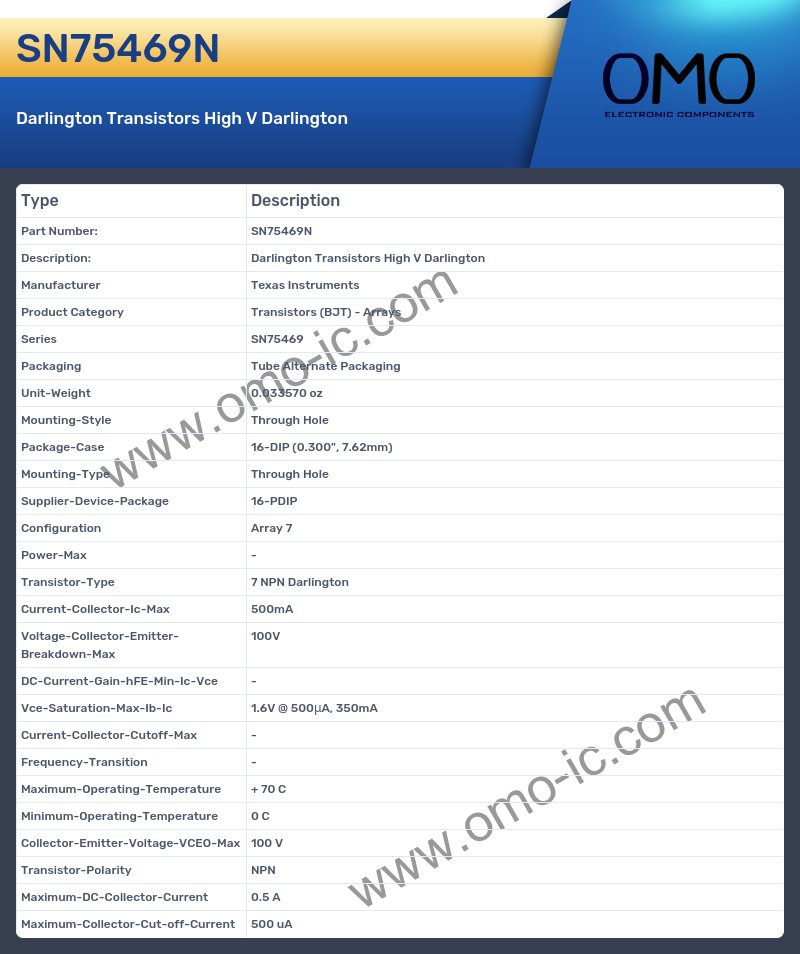

SN75469N Specifications
A: What is the Series of the product?
Q: The Series of the product is SN75469.
A: At what frequency does the Packaging?
Q: The product Packaging is Tube Alternate Packaging.
A: What is the Unit-Weight of the product?
Q: The Unit-Weight of the product is 0.033570 oz.
A: What is the Mounting-Style of the product?
Q: The Mounting-Style of the product is Through Hole.
A: At what frequency does the Package-Case?
Q: The product Package-Case is 16-DIP (0.300", 7.62mm).
A: What is the Mounting-Type of the product?
Q: The Mounting-Type of the product is Through Hole.
A: Is the cutoff frequency of the product Supplier-Device-Package?
Q: Yes, the product's Supplier-Device-Package is indeed 16-PDIP
A: What is the Configuration of the product?
Q: The Configuration of the product is Array 7.
A: At what frequency does the Transistor-Type?
Q: The product Transistor-Type is 7 NPN Darlington.
A: At what frequency does the Current-Collector-Ic-Max?
Q: The product Current-Collector-Ic-Max is 500mA.
A: Is the cutoff frequency of the product Voltage-Collector-Emitter-Breakdown-Max?
Q: Yes, the product's Voltage-Collector-Emitter-Breakdown-Max is indeed 100V
A: At what frequency does the DC-Current-Gain-hFE-Min-Ic-Vce?
Q: The product DC-Current-Gain-hFE-Min-Ic-Vce is -.
A: Is the cutoff frequency of the product Vce-Saturation-Max-Ib-Ic?
Q: Yes, the product's Vce-Saturation-Max-Ib-Ic is indeed 1.6V @ 500μA, 350mA
A: At what frequency does the Maximum-Operating-Temperature?
Q: The product Maximum-Operating-Temperature is + 70 C.
A: What is the Minimum-Operating-Temperature of the product?
Q: The Minimum-Operating-Temperature of the product is 0 C.
A: At what frequency does the Collector-Emitter-Voltage-VCEO-Max?
Q: The product Collector-Emitter-Voltage-VCEO-Max is 100 V.
A: Is the cutoff frequency of the product Transistor-Polarity?
Q: Yes, the product's Transistor-Polarity is indeed NPN
A: Is the cutoff frequency of the product Maximum-DC-Collector-Current?
Q: Yes, the product's Maximum-DC-Collector-Current is indeed 0.5 A
A: At what frequency does the Maximum-Collector-Cut-off-Current?
Q: The product Maximum-Collector-Cut-off-Current is 500 uA.
