SN75C198DR

SN75C198DR Overview

Product belongs to the SN75C198 series. This product is categorized as RS-232 Drivers Type: Driver Tape & Reel (TR) Alternate Packaging is the packaging method for this product Weight of 0.004564 oz SMD/SMT Mounting-Style SOIC-14 Operational temperature range: 0°C ~ 70°C Surface Mount mounting type Product function is Driver. Voltage Supply Range: 4.5 V ~ 15 V Supplier device package: 14-SOIC This product has a 4/0 number of drivers and receivers. Maximum operating temperature of + 70 C Minimum operating temperature: 0 C This product operates at a 12 V supply voltage for reliable performance. 160 uA is 92 nA. RS-232 protocol is supported. Maximum supply voltage of 15 V Minimum supply voltage is 4.5 V Number-of-Drivers: 4 Driver The product has 0 Receiver receivers.

SN75C198DR Image

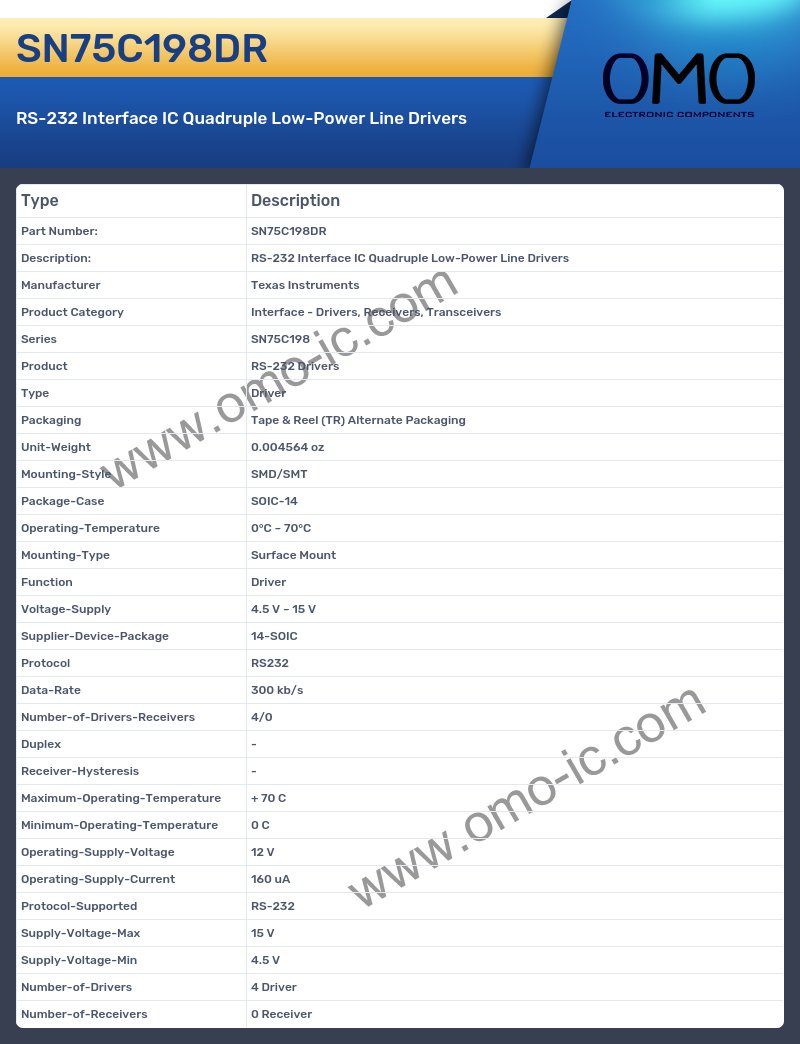

SN75C198DR Specifications

• Manufacturer Texas Instruments
• Product Category Interface - Drivers, Receivers, Transceivers
• Series SN75C198
• Product RS-232 Drivers
• Type Driver
• Packaging Tape & Reel (TR) Alternate Packaging
• Unit-Weight 0.004564 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-14
• Operating-Temperature 0°C ~ 70°C
• Mounting-Type Surface Mount
• Function Driver
• Voltage-Supply 4.5 V ~ 15 V
• Supplier-Device-Package 14-SOIC
• Protocol RS232
• Data-Rate 300 kb/s
• Number-of-Drivers-Receivers 4/0
• Duplex -
• Receiver-Hysteresis -
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Operating-Supply-Voltage 12 V
• Operating-Supply-Current 160 uA
• Protocol-Supported RS-232
• Supply-Voltage-Max 15 V
• Supply-Voltage-Min 4.5 V
• Number-of-Drivers 4 Driver
• Number-of-Receivers 0 Receiver
