STB30NF20

STB30NF20 Overview

Product belongs to the STripFET series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.139332 oz SMD/SMT Mounting-Style TO-263-3, D2Pak (2 Leads + Tab), TO-263AB Si is the technology used. Operational temperature range: -55°C ~ 150°C (TJ) Surface Mount mounting type Number of channels: 1 Channel Supplier device package: D2PAK Configuration Single This product uses an MOSFET N-Channel, Metal Oxide FET-Type transistor. Transistor type: 1 N-Channel 200V This product has an 1597pF @ 25V value of 300pF @ 25V. This product's Standard. 30A (Tc) continuous drain-ID current at 25°C; This product has an 75 mOhm @ 15A, 10V of 12 Ohm @ 150mA, 0V. Power-off control: 125 W Maximum operating temperature of + 150 C Minimum operating temperature: - 55 C This product has a 8.8 ns of 16 ns. This product has a 15.7 ns of 16 ns. This product's 20 V. The ID of continuous drain current is 30 A. This product has a Vds-Drain-Source-Breakdown-Voltageof 200 V. The 75 mOhms for this product is 12 Ohms. The transistor polarity is N-Channel. 'Typical-Turn-Off-Delay-Time' of 38 ns This product has a 35 ns. This product operates in Enhancement channel mode for optimal performance.

STB30NF20 Image

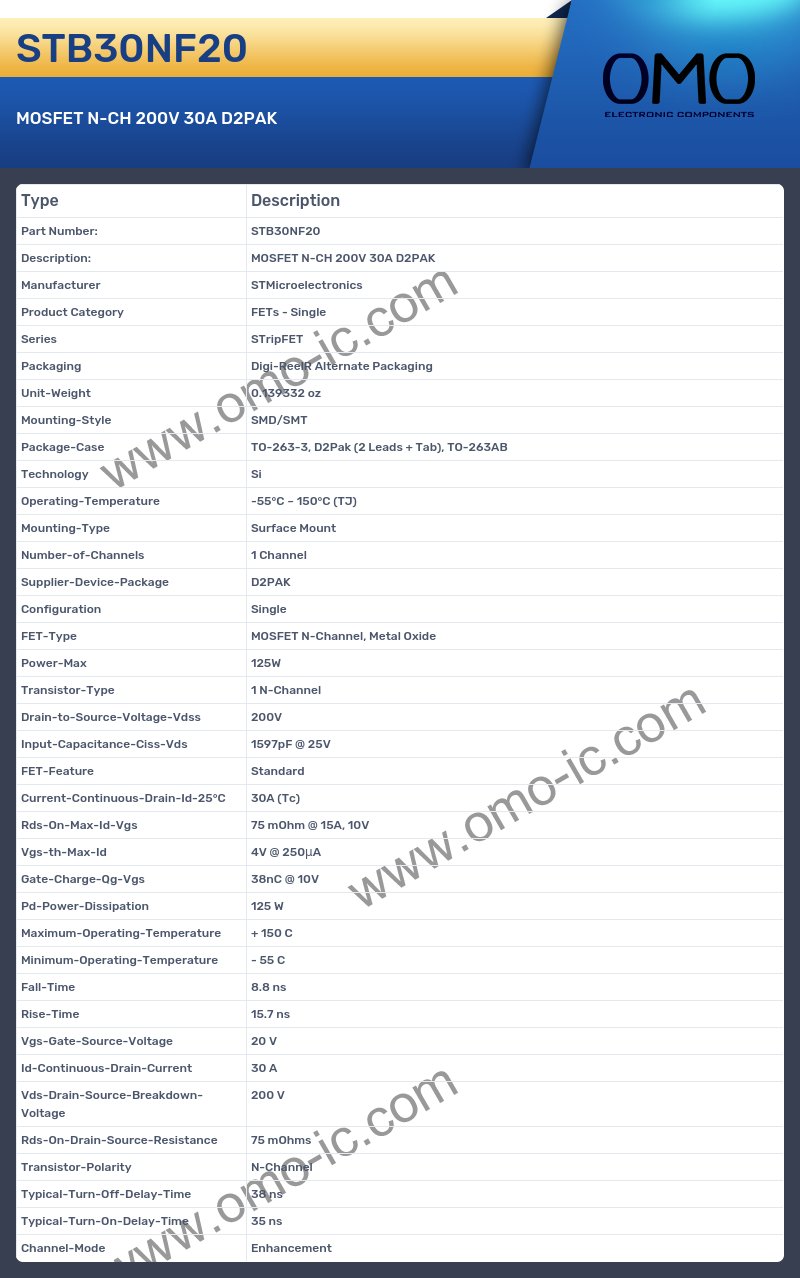

STB30NF20 Specifications

• Manufacturer STMicroelectronics
• Product Category FETs - Single
• Series STripFET
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.139332 oz
• Mounting-Style SMD/SMT
• Package-Case TO-263-3, D2Pak (2 Leads + Tab), TO-263AB
• Technology Si
• Operating-Temperature -55°C ~ 150°C (TJ)
• Mounting-Type Surface Mount
• Number-of-Channels 1 Channel
• Supplier-Device-Package D2PAK
• Configuration Single
• FET-Type MOSFET N-Channel, Metal Oxide
• Power-Max 125W
• Transistor-Type 1 N-Channel
• Drain-to-Source-Voltage-Vdss 200V
• Input-Capacitance-Ciss-Vds 1597pF @ 25V
• FET-Feature Standard
• Current-Continuous-Drain-Id-25°C 30A (Tc)
• Rds-On-Max-Id-Vgs 75 mOhm @ 15A, 10V
• Vgs-th-Max-Id 4V @ 250μA
• Gate-Charge-Qg-Vgs 38nC @ 10V
• Pd-Power-Dissipation 125 W
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 55 C
• Fall-Time 8.8 ns
• Rise-Time 15.7 ns
• Vgs-Gate-Source-Voltage 20 V
• Id-Continuous-Drain-Current 30 A
• Vds-Drain-Source-Breakdown-Voltage 200 V
• Rds-On-Drain-Source-Resistance 75 mOhms
• Transistor-Polarity N-Channel
• Typical-Turn-Off-Delay-Time 38 ns
• Typical-Turn-On-Delay-Time 35 ns
• Channel-Mode Enhancement
