| Mfr. #: | STD30PF03LT4 |
|---|---|
| 製造商: | STMicroelectronics |
| 描述: | MOSFET P-CH 30V 24A DPAK |
| 生命週期: | 製造商新產品 |
| 數據表: | STD30PF03LT4 數據表 |
Product belongs to the STripFET II series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.139332 oz SMD/SMT Mounting-Style TO-252-3, DPak (2 Leads + Tab), SC-63 Si is the technology used. Operational temperature range: 175°C (TJ) Surface Mount mounting type Number of channels: 1 Channel Supplier device package: D-Pak Configuration Single This product uses an MOSFET P-Channel, Metal Oxide FET-Type transistor. Transistor type: 1 P-Channel 30V This product has an 1670pF @ 25V value of 300pF @ 25V. This product's Standard. 24A (Tc) continuous drain-ID current at 25°C; This product has an 28 mOhm @ 12A, 10V of 12 Ohm @ 150mA, 0V. Power-off control: 70 W Maximum operating temperature of + 175 C Minimum operating temperature: - 55 C This product has a 26 ns of 16 ns. This product has a 122 ns of 16 ns. This product's 16 V. The ID of continuous drain current is 24 A. This product has a Vds-Drain-Source-Breakdown-Voltageof - 30 V. The 32 mOhms for this product is 12 Ohms. The transistor polarity is P-Channel. 'Typical-Turn-Off-Delay-Time' of 36 ns This product has a 64 ns. This product features a 23 S of 500 S for high performance. This product operates in Enhancement channel mode for optimal performance.
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

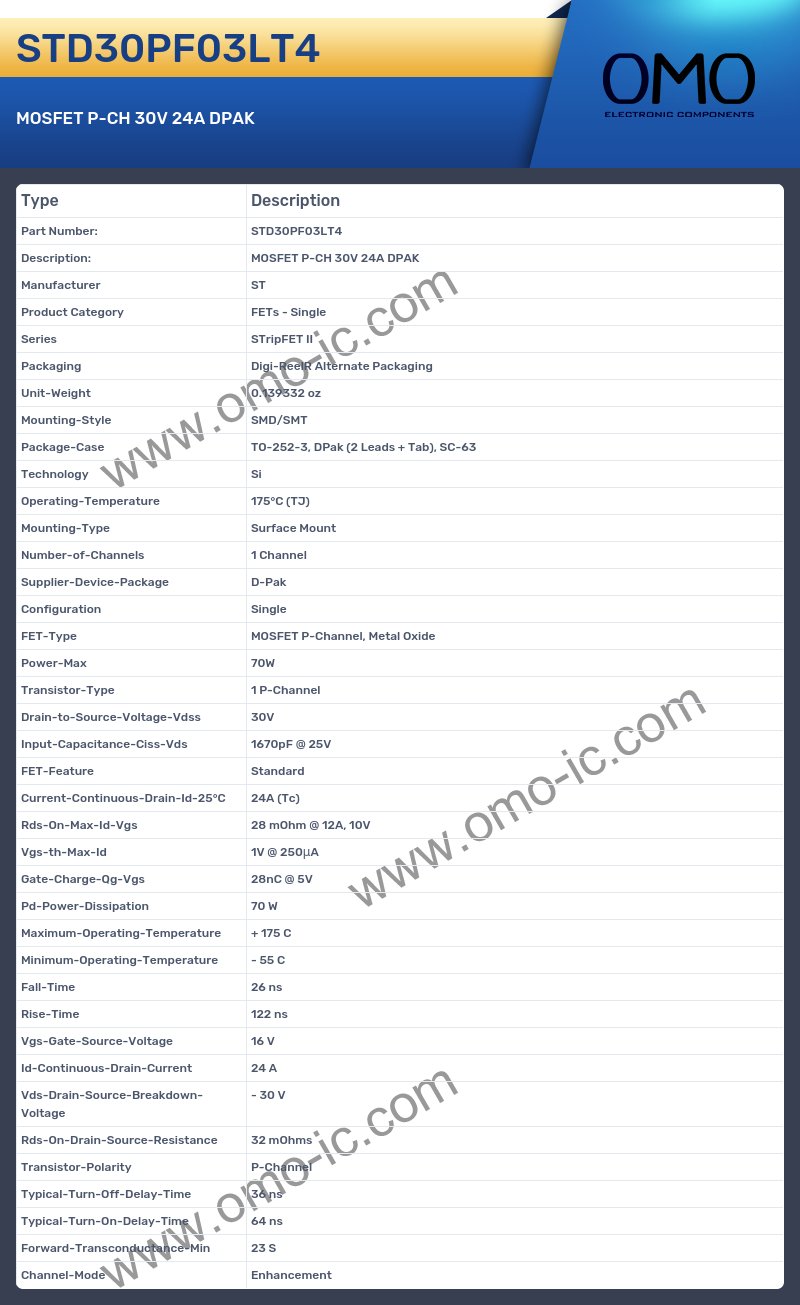

STD30PF03LT4 Specifications
A: Is the cutoff frequency of the product Series?
Q: Yes, the product's Series is indeed STripFET II
A: At what frequency does the Packaging?
Q: The product Packaging is Digi-ReelR Alternate Packaging.
A: Is the cutoff frequency of the product Unit-Weight?
Q: Yes, the product's Unit-Weight is indeed 0.139332 oz
A: What is the Mounting-Style of the product?
Q: The Mounting-Style of the product is SMD/SMT.
A: What is the Package-Case of the product?
Q: The Package-Case of the product is TO-252-3, DPak (2 Leads + Tab), SC-63.
A: What is the Technology of the product?
Q: The Technology of the product is Si.
A: What is the Operating-Temperature of the product?
Q: The Operating-Temperature of the product is 175°C (TJ).
A: Is the cutoff frequency of the product Mounting-Type?
Q: Yes, the product's Mounting-Type is indeed Surface Mount
A: At what frequency does the Number-of-Channels?
Q: The product Number-of-Channels is 1 Channel.
A: At what frequency does the Supplier-Device-Package?
Q: The product Supplier-Device-Package is D-Pak.
A: What is the Configuration of the product?
Q: The Configuration of the product is Single.
A: What is the FET-Type of the product?
Q: The FET-Type of the product is MOSFET P-Channel, Metal Oxide.
A: At what frequency does the Transistor-Type?
Q: The product Transistor-Type is 1 P-Channel.
A: At what frequency does the Drain-to-Source-Voltage-Vdss?
Q: The product Drain-to-Source-Voltage-Vdss is 30V.
A: Is the cutoff frequency of the product Input-Capacitance-Ciss-Vds?
Q: Yes, the product's Input-Capacitance-Ciss-Vds is indeed 1670pF @ 25V
A: At what frequency does the FET-Feature?
Q: The product FET-Feature is Standard.
A: Is the cutoff frequency of the product Current-Continuous-Drain-Id-25°C?
Q: Yes, the product's Current-Continuous-Drain-Id-25°C is indeed 24A (Tc)
A: What is the Rds-On-Max-Id-Vgs of the product?
Q: The Rds-On-Max-Id-Vgs of the product is 28 mOhm @ 12A, 10V.
A: What is the Pd-Power-Dissipation of the product?
Q: The Pd-Power-Dissipation of the product is 70 W.
A: Is the cutoff frequency of the product Maximum-Operating-Temperature?
Q: Yes, the product's Maximum-Operating-Temperature is indeed + 175 C
A: At what frequency does the Minimum-Operating-Temperature?
Q: The product Minimum-Operating-Temperature is - 55 C.
A: Is the cutoff frequency of the product Fall-Time?
Q: Yes, the product's Fall-Time is indeed 26 ns
A: At what frequency does the Rise-Time?
Q: The product Rise-Time is 122 ns.
A: Is the cutoff frequency of the product Vgs-Gate-Source-Voltage?
Q: Yes, the product's Vgs-Gate-Source-Voltage is indeed 16 V
A: At what frequency does the Id-Continuous-Drain-Current?
Q: The product Id-Continuous-Drain-Current is 24 A.
A: Is the cutoff frequency of the product Vds-Drain-Source-Breakdown-Voltage?
Q: Yes, the product's Vds-Drain-Source-Breakdown-Voltage is indeed - 30 V
A: Is the cutoff frequency of the product Rds-On-Drain-Source-Resistance?
Q: Yes, the product's Rds-On-Drain-Source-Resistance is indeed 32 mOhms
A: What is the Transistor-Polarity of the product?
Q: The Transistor-Polarity of the product is P-Channel.
A: What is the Typical-Turn-Off-Delay-Time of the product?
Q: The Typical-Turn-Off-Delay-Time of the product is 36 ns.
A: Is the cutoff frequency of the product Typical-Turn-On-Delay-Time?
Q: Yes, the product's Typical-Turn-On-Delay-Time is indeed 64 ns
A: At what frequency does the Forward-Transconductance-Min?
Q: The product Forward-Transconductance-Min is 23 S.
A: What is the Channel-Mode of the product?
Q: The Channel-Mode of the product is Enhancement.
