| Mfr. #: | STD3NK50ZT4 |
|---|---|
| 製造商: | STMicroelectronics |
| 描述: | MOSFET N-CH 500V 2.3A DPAK |
| 生命週期: | 製造商新產品 |
| 數據表: | STD3NK50ZT4 數據表 |
Product belongs to the SuperMESH series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.139332 oz SMD/SMT Mounting-Style TO-252-3, DPak (2 Leads + Tab), SC-63 Si is the technology used. Operational temperature range: -55°C ~ 150°C (TJ) Surface Mount mounting type Number of channels: 1 Channel Supplier device package: D-Pak Configuration Single This product uses an MOSFET N-Channel, Metal Oxide FET-Type transistor. Transistor type: 1 N-Channel 500V This product has an 280pF @ 25V value of 300pF @ 25V. This product's Standard. 2.3A (Tc) continuous drain-ID current at 25°C; This product has an 3.3 Ohm @ 1.15A, 10V of 12 Ohm @ 150mA, 0V. Power-off control: 45 W Maximum operating temperature of + 150 C Minimum operating temperature: - 55 C This product has a 14 ns of 16 ns. This product has a 13 ns of 16 ns. This product's 30 V. The ID of continuous drain current is 2.3 A. This product has a Vds-Drain-Source-Breakdown-Voltageof 500 V. The 2.8 Ohms for this product is 12 Ohms. The transistor polarity is N-Channel. 'Typical-Turn-Off-Delay-Time' of 24 ns This product has a 8 ns. Qg-Gate-Charge is 11 nC. This product features a 1.5 S of 500 S for high performance. This product operates in Enhancement channel mode for optimal performance.
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

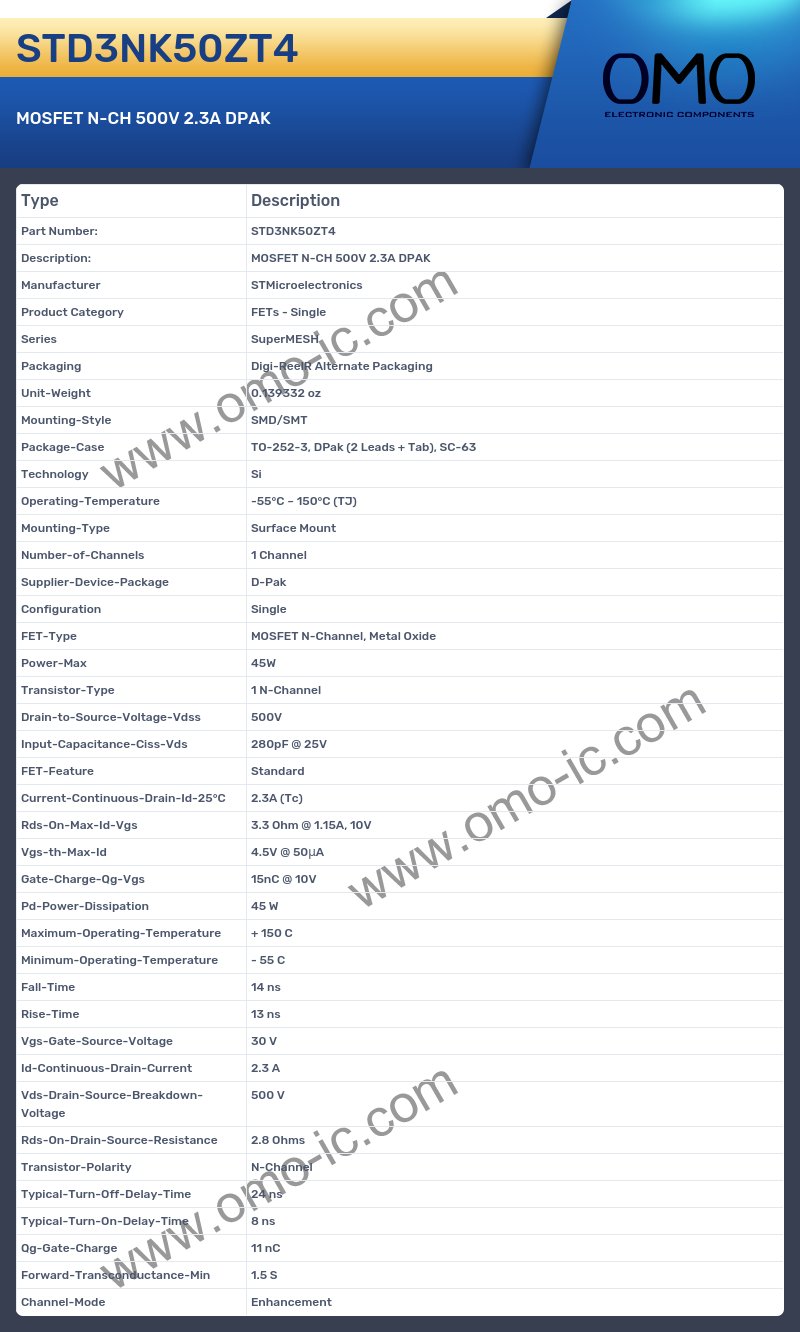

STD3NK50ZT4 Specifications
A: Is the cutoff frequency of the product Series?
Q: Yes, the product's Series is indeed SuperMESH
A: What is the Packaging of the product?
Q: The Packaging of the product is Digi-ReelR Alternate Packaging.
A: At what frequency does the Unit-Weight?
Q: The product Unit-Weight is 0.139332 oz.
A: Is the cutoff frequency of the product Mounting-Style?
Q: Yes, the product's Mounting-Style is indeed SMD/SMT
A: Is the cutoff frequency of the product Package-Case?
Q: Yes, the product's Package-Case is indeed TO-252-3, DPak (2 Leads + Tab), SC-63
A: At what frequency does the Technology?
Q: The product Technology is Si.
A: Is the cutoff frequency of the product Operating-Temperature?
Q: Yes, the product's Operating-Temperature is indeed -55°C ~ 150°C (TJ)
A: Is the cutoff frequency of the product Mounting-Type?
Q: Yes, the product's Mounting-Type is indeed Surface Mount
A: At what frequency does the Number-of-Channels?
Q: The product Number-of-Channels is 1 Channel.
A: Is the cutoff frequency of the product Supplier-Device-Package?
Q: Yes, the product's Supplier-Device-Package is indeed D-Pak
A: What is the Configuration of the product?
Q: The Configuration of the product is Single.
A: What is the FET-Type of the product?
Q: The FET-Type of the product is MOSFET N-Channel, Metal Oxide.
A: At what frequency does the Transistor-Type?
Q: The product Transistor-Type is 1 N-Channel.
A: At what frequency does the Drain-to-Source-Voltage-Vdss?
Q: The product Drain-to-Source-Voltage-Vdss is 500V.
A: At what frequency does the Input-Capacitance-Ciss-Vds?
Q: The product Input-Capacitance-Ciss-Vds is 280pF @ 25V.
A: At what frequency does the FET-Feature?
Q: The product FET-Feature is Standard.
A: At what frequency does the Current-Continuous-Drain-Id-25°C?
Q: The product Current-Continuous-Drain-Id-25°C is 2.3A (Tc).
A: At what frequency does the Rds-On-Max-Id-Vgs?
Q: The product Rds-On-Max-Id-Vgs is 3.3 Ohm @ 1.15A, 10V.
A: At what frequency does the Pd-Power-Dissipation?
Q: The product Pd-Power-Dissipation is 45 W.
A: At what frequency does the Maximum-Operating-Temperature?
Q: The product Maximum-Operating-Temperature is + 150 C.
A: What is the Minimum-Operating-Temperature of the product?
Q: The Minimum-Operating-Temperature of the product is - 55 C.
A: What is the Fall-Time of the product?
Q: The Fall-Time of the product is 14 ns.
A: Is the cutoff frequency of the product Rise-Time?
Q: Yes, the product's Rise-Time is indeed 13 ns
A: Is the cutoff frequency of the product Vgs-Gate-Source-Voltage?
Q: Yes, the product's Vgs-Gate-Source-Voltage is indeed 30 V
A: What is the Id-Continuous-Drain-Current of the product?
Q: The Id-Continuous-Drain-Current of the product is 2.3 A.
A: Is the cutoff frequency of the product Vds-Drain-Source-Breakdown-Voltage?
Q: Yes, the product's Vds-Drain-Source-Breakdown-Voltage is indeed 500 V
A: What is the Rds-On-Drain-Source-Resistance of the product?
Q: The Rds-On-Drain-Source-Resistance of the product is 2.8 Ohms.
A: At what frequency does the Transistor-Polarity?
Q: The product Transistor-Polarity is N-Channel.
A: What is the Typical-Turn-Off-Delay-Time of the product?
Q: The Typical-Turn-Off-Delay-Time of the product is 24 ns.
A: Is the cutoff frequency of the product Typical-Turn-On-Delay-Time?
Q: Yes, the product's Typical-Turn-On-Delay-Time is indeed 8 ns
A: What is the Qg-Gate-Charge of the product?
Q: The Qg-Gate-Charge of the product is 11 nC.
A: What is the Forward-Transconductance-Min of the product?
Q: The Forward-Transconductance-Min of the product is 1.5 S.
A: At what frequency does the Channel-Mode?
Q: The product Channel-Mode is Enhancement.
