| Mfr. #: | STD7N60M2 |
|---|---|
| 製造商: | STMicroelectronics |
| 描述: | MOSFET N-CH 600V DPAK |
| 生命週期: | 製造商新產品 |
| 數據表: | STD7N60M2 數據表 |
Product belongs to the MDmesh II Plus series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.139332 oz SMD/SMT Mounting-Style TO-252-3, DPak (2 Leads + Tab), SC-63 Si is the technology used. Operational temperature range: -55°C ~ 150°C (TJ) Surface Mount mounting type Number of channels: 1 Channel Supplier device package: DPAK Configuration Single This product uses an MOSFET N-Channel, Metal Oxide FET-Type transistor. Transistor type: 1 N-Channel 600V This product has an 271pF @ 100V value of 300pF @ 25V. This product's Standard. 5A (Tc) continuous drain-ID current at 25°C; This product has an 950 mOhm @ 2.5A, 10V of 12 Ohm @ 150mA, 0V. Power-off control: 60 W Maximum operating temperature of + 150 C Minimum operating temperature: - 55 C This product has a 15.9 ns of 16 ns. This product has a 7.2 ns of 16 ns. This product's 25 V. The ID of continuous drain current is 5 A. This product has a Vds-Drain-Source-Breakdown-Voltageof 600 V. This product has a 3 V Vgs-th gate-source threshold voltage for efficient power management. The 860 mOhms for this product is 12 Ohms. The transistor polarity is N-Channel. 'Typical-Turn-Off-Delay-Time' of 19.3 ns This product has a 7.6 ns. Qg-Gate-Charge is 8.8 nC.
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

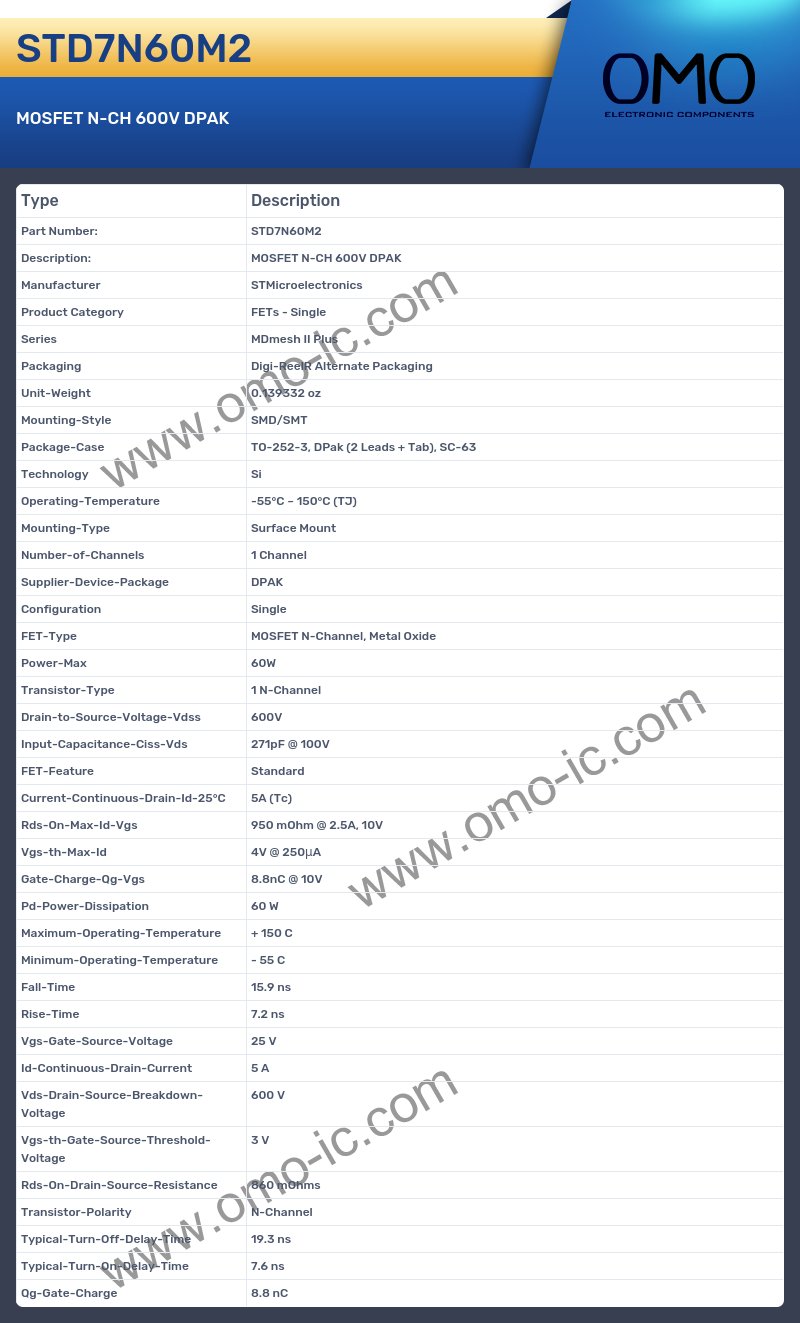

STD7N60M2 Specifications
A: At what frequency does the Series?
Q: The product Series is MDmesh II Plus.
A: Is the cutoff frequency of the product Packaging?
Q: Yes, the product's Packaging is indeed Digi-ReelR Alternate Packaging
A: What is the Unit-Weight of the product?
Q: The Unit-Weight of the product is 0.139332 oz.
A: Is the cutoff frequency of the product Mounting-Style?
Q: Yes, the product's Mounting-Style is indeed SMD/SMT
A: Is the cutoff frequency of the product Package-Case?
Q: Yes, the product's Package-Case is indeed TO-252-3, DPak (2 Leads + Tab), SC-63
A: What is the Technology of the product?
Q: The Technology of the product is Si.
A: What is the Operating-Temperature of the product?
Q: The Operating-Temperature of the product is -55°C ~ 150°C (TJ).
A: What is the Mounting-Type of the product?
Q: The Mounting-Type of the product is Surface Mount.
A: Is the cutoff frequency of the product Number-of-Channels?
Q: Yes, the product's Number-of-Channels is indeed 1 Channel
A: At what frequency does the Supplier-Device-Package?
Q: The product Supplier-Device-Package is DPAK.
A: Is the cutoff frequency of the product Configuration?
Q: Yes, the product's Configuration is indeed Single
A: Is the cutoff frequency of the product FET-Type?
Q: Yes, the product's FET-Type is indeed MOSFET N-Channel, Metal Oxide
A: At what frequency does the Transistor-Type?
Q: The product Transistor-Type is 1 N-Channel.
A: At what frequency does the Drain-to-Source-Voltage-Vdss?
Q: The product Drain-to-Source-Voltage-Vdss is 600V.
A: At what frequency does the Input-Capacitance-Ciss-Vds?
Q: The product Input-Capacitance-Ciss-Vds is 271pF @ 100V.
A: Is the cutoff frequency of the product FET-Feature?
Q: Yes, the product's FET-Feature is indeed Standard
A: Is the cutoff frequency of the product Current-Continuous-Drain-Id-25°C?
Q: Yes, the product's Current-Continuous-Drain-Id-25°C is indeed 5A (Tc)
A: What is the Rds-On-Max-Id-Vgs of the product?
Q: The Rds-On-Max-Id-Vgs of the product is 950 mOhm @ 2.5A, 10V.
A: What is the Pd-Power-Dissipation of the product?
Q: The Pd-Power-Dissipation of the product is 60 W.
A: What is the Maximum-Operating-Temperature of the product?
Q: The Maximum-Operating-Temperature of the product is + 150 C.
A: At what frequency does the Minimum-Operating-Temperature?
Q: The product Minimum-Operating-Temperature is - 55 C.
A: At what frequency does the Fall-Time?
Q: The product Fall-Time is 15.9 ns.
A: Is the cutoff frequency of the product Rise-Time?
Q: Yes, the product's Rise-Time is indeed 7.2 ns
A: Is the cutoff frequency of the product Vgs-Gate-Source-Voltage?
Q: Yes, the product's Vgs-Gate-Source-Voltage is indeed 25 V
A: At what frequency does the Id-Continuous-Drain-Current?
Q: The product Id-Continuous-Drain-Current is 5 A.
A: What is the Vds-Drain-Source-Breakdown-Voltage of the product?
Q: The Vds-Drain-Source-Breakdown-Voltage of the product is 600 V.
A: At what frequency does the Vgs-th-Gate-Source-Threshold-Voltage?
Q: The product Vgs-th-Gate-Source-Threshold-Voltage is 3 V.
A: Is the cutoff frequency of the product Rds-On-Drain-Source-Resistance?
Q: Yes, the product's Rds-On-Drain-Source-Resistance is indeed 860 mOhms
A: Is the cutoff frequency of the product Transistor-Polarity?
Q: Yes, the product's Transistor-Polarity is indeed N-Channel
A: At what frequency does the Typical-Turn-Off-Delay-Time?
Q: The product Typical-Turn-Off-Delay-Time is 19.3 ns.
A: What is the Typical-Turn-On-Delay-Time of the product?
Q: The Typical-Turn-On-Delay-Time of the product is 7.6 ns.
A: At what frequency does the Qg-Gate-Charge?
Q: The product Qg-Gate-Charge is 8.8 nC.
