STGB20H60DF

STGB20H60DF Overview

Product belongs to the 600-650V IGBTs series. Digi-ReelR Alternate Packaging is the packaging method for this product TO-263-3, D2Pak (2 Leads + Tab), TO-263AB The Standard for this product is CMOS/TTL. Surface Mount mounting type Supplier device package: D2PAK Maximum current collector Ic is 40A . Maximum collector-emitter breakdown voltage of 600V The Current-Collector-Pulsed-Icm is rated at 80A. The Vce-on-Max-Vge-Ic is rated at 2V @ 15V, 20A. 42.5ns/177ns Td-on-off at 25°C; Operating temperature: 400V, 20A, 10 Ohm, 15V

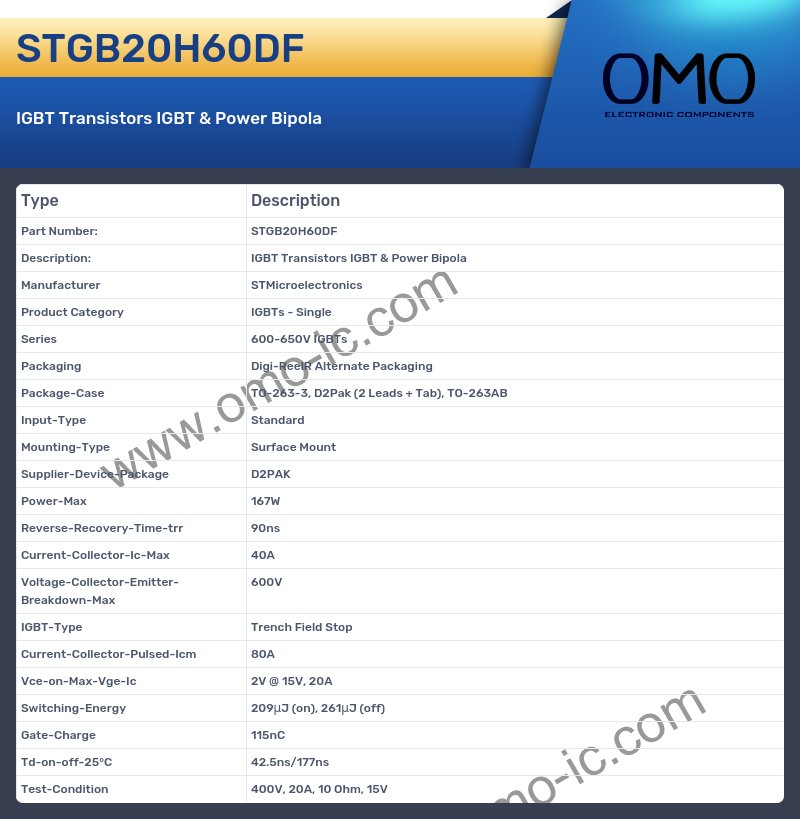

STGB20H60DF Image

STGB20H60DF Specifications

• Manufacturer STMicroelectronics
• Product Category IGBTs - Single
• Series 600-650V IGBTs
• Packaging Digi-ReelR Alternate Packaging
• Package-Case TO-263-3, D2Pak (2 Leads + Tab), TO-263AB
• Input-Type Standard
• Mounting-Type Surface Mount
• Supplier-Device-Package D2PAK
• Power-Max 167W
• Reverse-Recovery-Time-trr 90ns
• Current-Collector-Ic-Max 40A
• Voltage-Collector-Emitter-Breakdown-Max 600V
• IGBT-Type Trench Field Stop
• Current-Collector-Pulsed-Icm 80A
• Vce-on-Max-Vge-Ic 2V @ 15V, 20A
• Switching-Energy 209μJ (on), 261μJ (off)
• Gate-Charge 115nC
• Td-on-off-25°C 42.5ns/177ns
• Test-Condition 400V, 20A, 10 Ohm, 15V

STGB20H60DF FAQ

• A: What is the Series of the product?

  Q: The Series of the product is 600-650V IGBTs.

• A: At what frequency does the Packaging?

  Q: The product Packaging is Digi-ReelR Alternate Packaging.

• A: At what frequency does the Package-Case?

  Q: The product Package-Case is TO-263-3, D2Pak (2 Leads + Tab), TO-263AB.

• A: What is the Input-Type of the product?

  Q: The Input-Type of the product is Standard.

• A: Is the cutoff frequency of the product Mounting-Type?

  Q: Yes, the product's Mounting-Type is indeed Surface Mount

• A: At what frequency does the Supplier-Device-Package?

  Q: The product Supplier-Device-Package is D2PAK.

• A: At what frequency does the Current-Collector-Ic-Max?

  Q: The product Current-Collector-Ic-Max is 40A.

• A: What is the Voltage-Collector-Emitter-Breakdown-Max of the product?

  Q: The Voltage-Collector-Emitter-Breakdown-Max of the product is 600V.

• A: Is the cutoff frequency of the product Current-Collector-Pulsed-Icm?

  Q: Yes, the product's Current-Collector-Pulsed-Icm is indeed 80A

• A: Is the cutoff frequency of the product Vce-on-Max-Vge-Ic?

  Q: Yes, the product's Vce-on-Max-Vge-Ic is indeed 2V @ 15V, 20A

• A: At what frequency does the Td-on-off-25°C?

  Q: The product Td-on-off-25°C is 42.5ns/177ns.

• A: Is the cutoff frequency of the product Test-Condition?

  Q: Yes, the product's Test-Condition is indeed 400V, 20A, 10 Ohm, 15V
