| Mfr. #: | STGD6NC60HDT4 |
|---|---|
| 製造商: | STMicroelectronics |
| 描述: | IGBT 600V 15A 56W DPAK |
| 生命週期: | 製造商新產品 |
| 數據表: | STGD6NC60HDT4 數據表 |
Product belongs to the PowerMESH series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.012346 oz SMD/SMT Mounting-Style TO-252-3, DPak (2 Leads + Tab), SC-63 The Standard for this product is CMOS/TTL. Surface Mount mounting type Supplier device package: D-Pak Configuration Single Maximum current collector Ic is 15A . Maximum collector-emitter breakdown voltage of 600V The Current-Collector-Pulsed-Icm is rated at 21A. The Vce-on-Max-Vge-Ic is rated at 2.5V @ 15V, 3A. 12ns/76ns Td-on-off at 25°C; Operating temperature: 390V, 3A, 10 Ohm, 15V Power-off control: 50 W Maximum operating temperature of + 150 C Minimum operating temperature: - 55 C Rated VCEO up to 600 V Saturation voltage between collector and emitter is 1.9 V Maximum-Gate-Emitter-Voltage: +/- 20 V Maximal 15 A Collector Current of Continuity;
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

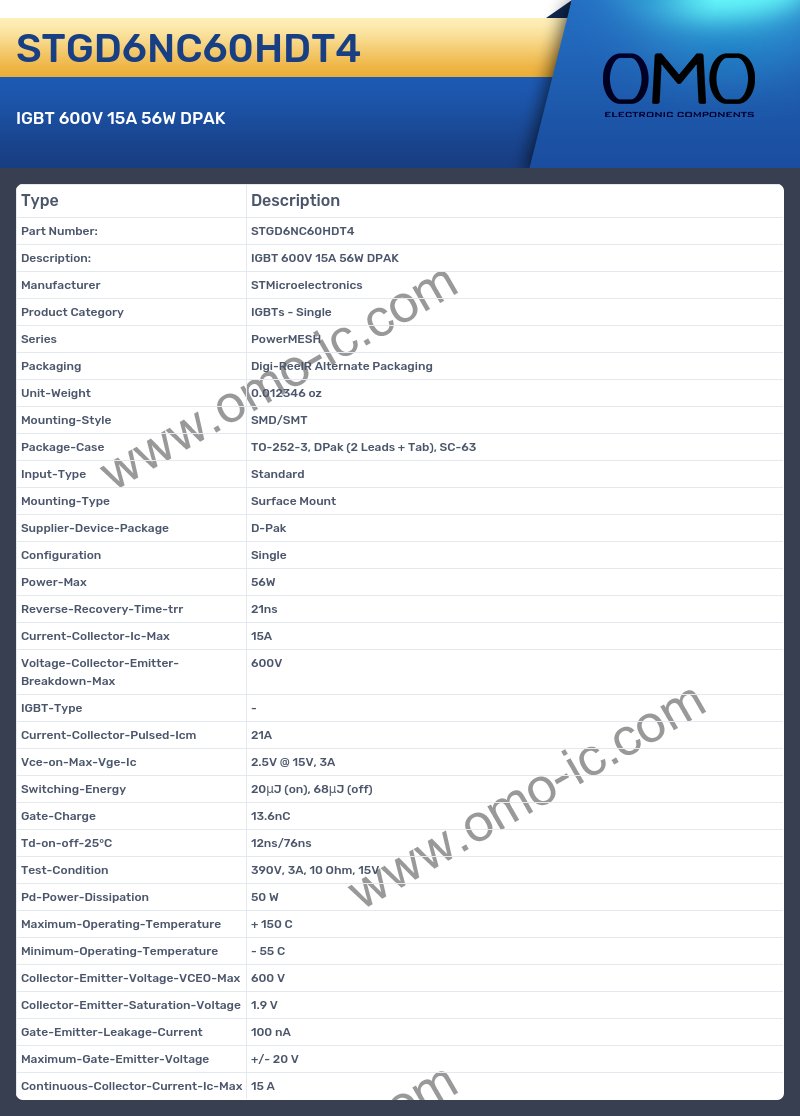

STGD6NC60HDT4 Specifications
