STGF7NC60HD

STGF7NC60HD Overview

Product belongs to the PowerMESH series. Tube is the packaging method for this product Weight of 0.081130 oz Through Hole Mounting-Style TO-220-3 Full Pack The Standard for this product is CMOS/TTL. Through Hole mounting type Supplier device package: TO-220FP Configuration Single Maximum current collector Ic is 10A . Maximum collector-emitter breakdown voltage of 600V The Current-Collector-Pulsed-Icm is rated at 50A. The Vce-on-Max-Vge-Ic is rated at 2.5V @ 15V, 7A. 18.5ns/72ns Td-on-off at 25°C; Operating temperature: 390V, 7A, 10 Ohm, 15V Power-off control: 25 W Maximum operating temperature of + 150 C Minimum operating temperature: - 55 C Rated VCEO up to 600 V Saturation voltage between collector and emitter is 2.5 V 10 A Continuous Collector Current at 25°C Maximum-Gate-Emitter-Voltage: +/- 20 V Maximal 10 A Collector Current of Continuity;

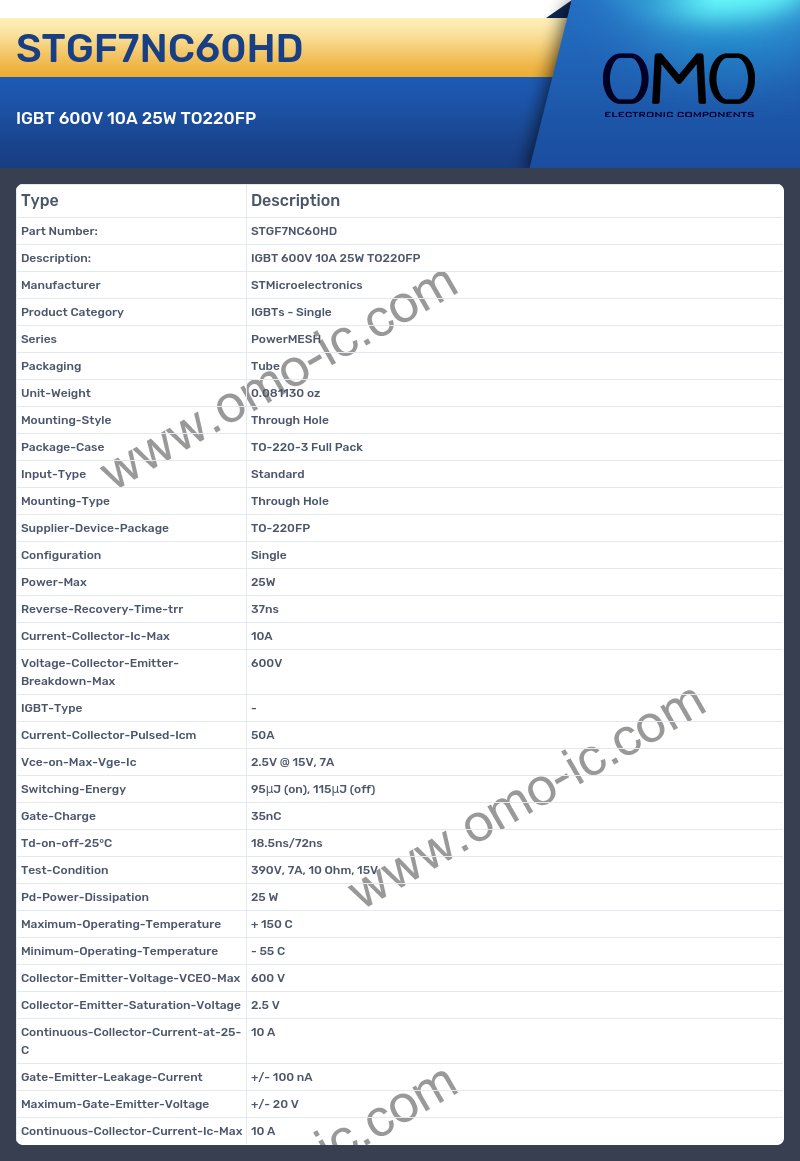

STGF7NC60HD Image

STGF7NC60HD Specifications

• Manufacturer STMicroelectronics
• Product Category IGBTs - Single
• Series PowerMESH
• Packaging Tube
• Unit-Weight 0.081130 oz
• Mounting-Style Through Hole
• Package-Case TO-220-3 Full Pack
• Input-Type Standard
• Mounting-Type Through Hole
• Supplier-Device-Package TO-220FP
• Configuration Single
• Power-Max 25W
• Reverse-Recovery-Time-trr 37ns
• Current-Collector-Ic-Max 10A
• Voltage-Collector-Emitter-Breakdown-Max 600V
• IGBT-Type -
• Current-Collector-Pulsed-Icm 50A
• Vce-on-Max-Vge-Ic 2.5V @ 15V, 7A
• Switching-Energy 95μJ (on), 115μJ (off)
• Gate-Charge 35nC
• Td-on-off-25°C 18.5ns/72ns
• Test-Condition 390V, 7A, 10 Ohm, 15V
• Pd-Power-Dissipation 25 W
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 55 C
• Collector-Emitter-Voltage-VCEO-Max 600 V
• Collector-Emitter-Saturation-Voltage 2.5 V
• Continuous-Collector-Current-at-25-C 10 A
• Gate-Emitter-Leakage-Current +/- 100 nA
• Maximum-Gate-Emitter-Voltage +/- 20 V
• Continuous-Collector-Current-Ic-Max 10 A
