STGIPS20C60

STGIPS20C60 Overview

Product belongs to the SLLIMM series. This product is categorized as IGBT Silicon Modules Type: IGBT Tube is the packaging method for this product Through Hole Mounting-Style Trade name: SLIMM. 25-DIP Module Configuration 3 Phase Voltage of 600V; This product is designed with 2500Vrms voltage isolation for maximum safety and reliability. Power-off control: 46 W Maximum operating temperature of + 150 C Minimum operating temperature: - 40 C Rated VCEO up to 600 V Saturation voltage between collector and emitter is 1.7 V 20 A Continuous Collector Current at 25°C

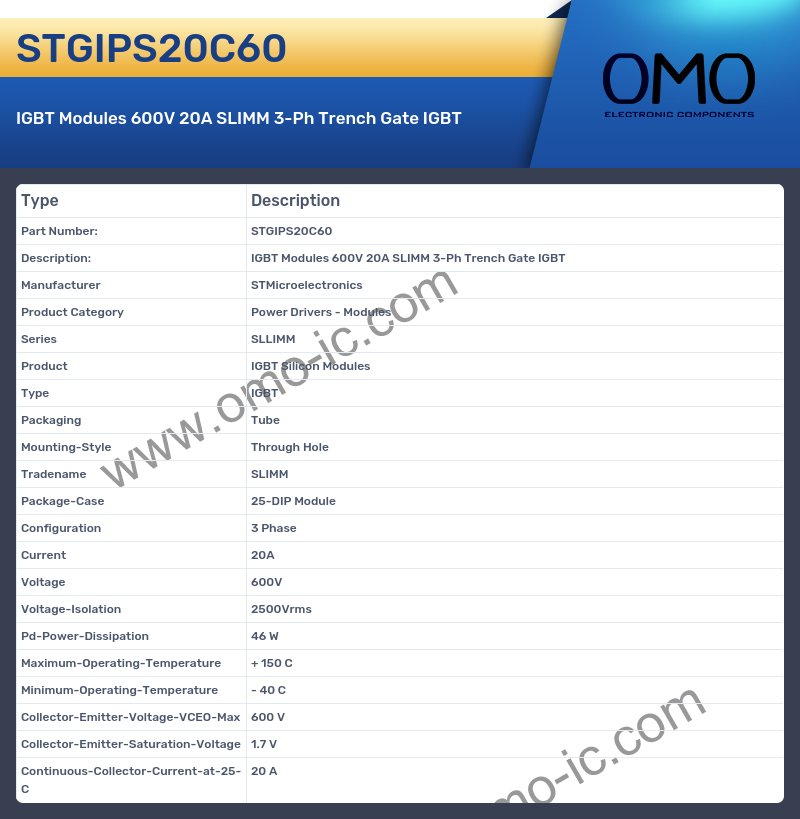

STGIPS20C60 Image

STGIPS20C60 Specifications

• Manufacturer STMicroelectronics
• Product Category Power Drivers - Modules
• Series SLLIMM
• Product IGBT Silicon Modules
• Type IGBT
• Packaging Tube
• Mounting-Style Through Hole
• Tradename SLIMM
• Package-Case 25-DIP Module
• Configuration 3 Phase
• Current 20A
• Voltage 600V
• Voltage-Isolation 2500Vrms
• Pd-Power-Dissipation 46 W
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 40 C
• Collector-Emitter-Voltage-VCEO-Max 600 V
• Collector-Emitter-Saturation-Voltage 1.7 V
• Continuous-Collector-Current-at-25-C 20 A
