STGP30H65F

STGP30H65F Overview

Product belongs to the 600-650V IGBTs series. Tube is the packaging method for this product Weight of 0.211644 oz Through Hole Mounting-Style TO-220-3 The Standard for this product is CMOS/TTL. Through Hole mounting type Supplier device package: TO-220 Configuration Single Maximum current collector Ic is 60A . Maximum collector-emitter breakdown voltage of 650V The Current-Collector-Pulsed-Icm is rated at 120A. The Vce-on-Max-Vge-Ic is rated at 2.4V @ 15V, 30A. 50ns/160ns Td-on-off at 25°C; Operating temperature: 400V, 30A, 10 Ohm, 15V Power-off control: 260 W Maximum operating temperature of + 175 C Minimum operating temperature: - 55 C Rated VCEO up to 650 V Saturation voltage between collector and emitter is 2.4 V 60 A Continuous Collector Current at 25°C Maximum-Gate-Emitter-Voltage: +/- 20 V Maximal 30 A Collector Current of Continuity;

STGP30H65F Image

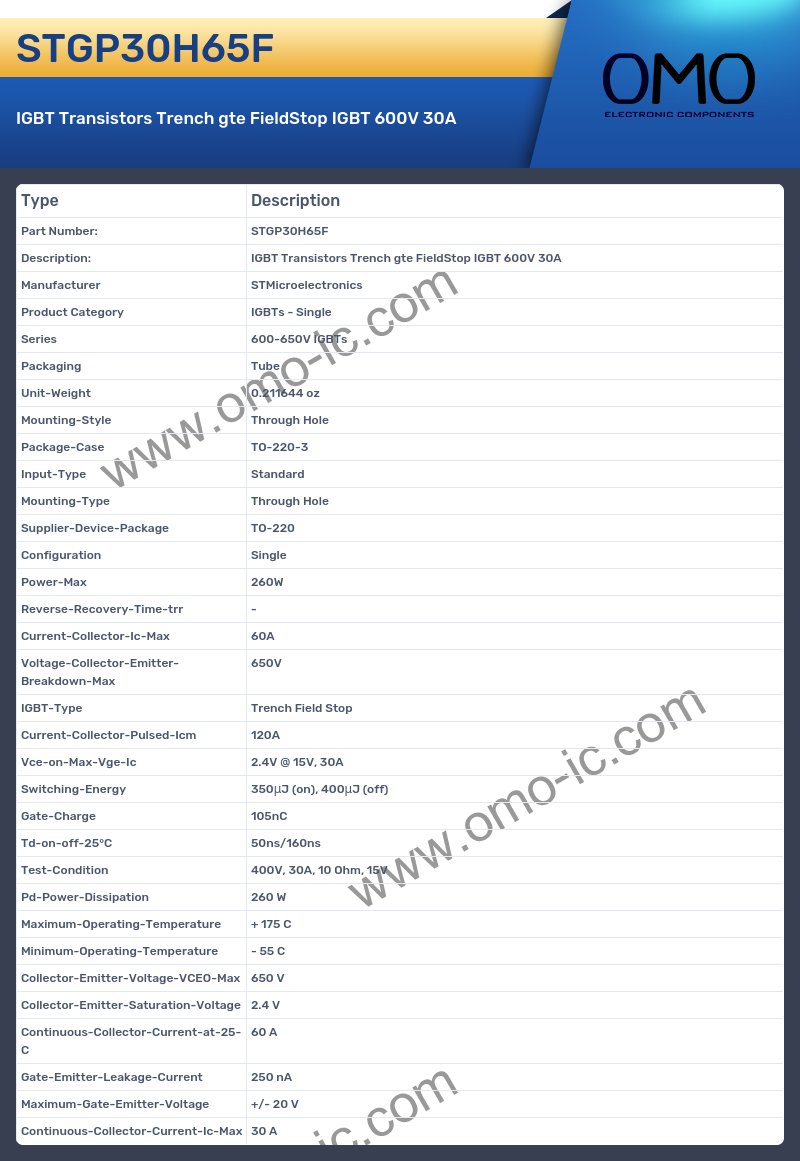

STGP30H65F Specifications

• Manufacturer STMicroelectronics
• Product Category IGBTs - Single
• Series 600-650V IGBTs
• Packaging Tube
• Unit-Weight 0.211644 oz
• Mounting-Style Through Hole
• Package-Case TO-220-3
• Input-Type Standard
• Mounting-Type Through Hole
• Supplier-Device-Package TO-220
• Configuration Single
• Power-Max 260W
• Reverse-Recovery-Time-trr -
• Current-Collector-Ic-Max 60A
• Voltage-Collector-Emitter-Breakdown-Max 650V
• IGBT-Type Trench Field Stop
• Current-Collector-Pulsed-Icm 120A
• Vce-on-Max-Vge-Ic 2.4V @ 15V, 30A
• Switching-Energy 350μJ (on), 400μJ (off)
• Gate-Charge 105nC
• Td-on-off-25°C 50ns/160ns
• Test-Condition 400V, 30A, 10 Ohm, 15V
• Pd-Power-Dissipation 260 W
• Maximum-Operating-Temperature + 175 C
• Minimum-Operating-Temperature - 55 C
• Collector-Emitter-Voltage-VCEO-Max 650 V
• Collector-Emitter-Saturation-Voltage 2.4 V
• Continuous-Collector-Current-at-25-C 60 A
• Gate-Emitter-Leakage-Current 250 nA
• Maximum-Gate-Emitter-Voltage +/- 20 V
• Continuous-Collector-Current-Ic-Max 30 A
