STGP30V60DF

STGP30V60DF Overview

Product belongs to the 600-650V IGBTs series. Tube is the packaging method for this product Weight of 0.081130 oz Through Hole Mounting-Style TO-220-3 The Standard for this product is CMOS/TTL. Through Hole mounting type Supplier device package: TO-220 Configuration Single Maximum current collector Ic is 60A . Maximum collector-emitter breakdown voltage of 600V The Current-Collector-Pulsed-Icm is rated at 120A. The Vce-on-Max-Vge-Ic is rated at 2.3V @ 15V, 30A. 45ns/189ns Td-on-off at 25°C; Operating temperature: 400V, 30A, 10 Ohm, 15V Power-off control: 258 W Maximum operating temperature of + 175 C Minimum operating temperature: - 55 C Rated VCEO up to 600 V Saturation voltage between collector and emitter is 2.35 V 60 A Continuous Collector Current at 25°C Maximum-Gate-Emitter-Voltage: 20 V

STGP30V60DF Image

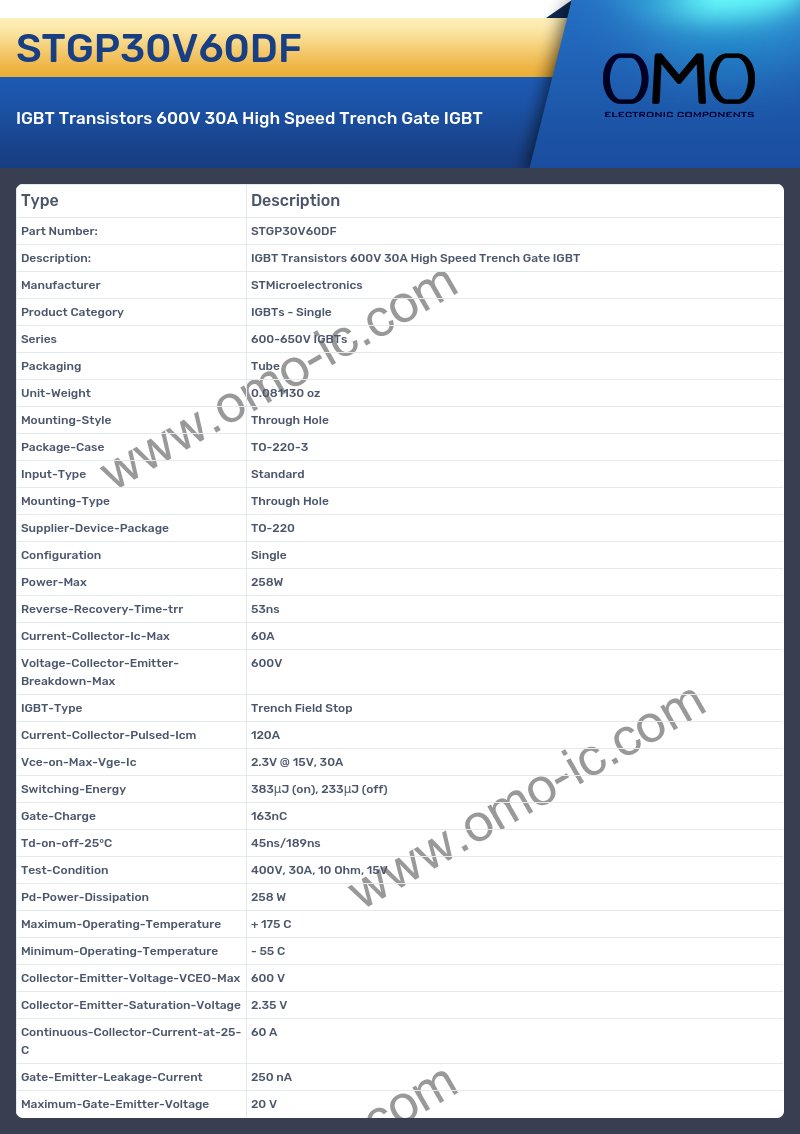

STGP30V60DF Specifications

• Manufacturer STMicroelectronics
• Product Category IGBTs - Single
• Series 600-650V IGBTs
• Packaging Tube
• Unit-Weight 0.081130 oz
• Mounting-Style Through Hole
• Package-Case TO-220-3
• Input-Type Standard
• Mounting-Type Through Hole
• Supplier-Device-Package TO-220
• Configuration Single
• Power-Max 258W
• Reverse-Recovery-Time-trr 53ns
• Current-Collector-Ic-Max 60A
• Voltage-Collector-Emitter-Breakdown-Max 600V
• IGBT-Type Trench Field Stop
• Current-Collector-Pulsed-Icm 120A
• Vce-on-Max-Vge-Ic 2.3V @ 15V, 30A
• Switching-Energy 383μJ (on), 233μJ (off)
• Gate-Charge 163nC
• Td-on-off-25°C 45ns/189ns
• Test-Condition 400V, 30A, 10 Ohm, 15V
• Pd-Power-Dissipation 258 W
• Maximum-Operating-Temperature + 175 C
• Minimum-Operating-Temperature - 55 C
• Collector-Emitter-Voltage-VCEO-Max 600 V
• Collector-Emitter-Saturation-Voltage 2.35 V
• Continuous-Collector-Current-at-25-C 60 A
• Gate-Emitter-Leakage-Current 250 nA
• Maximum-Gate-Emitter-Voltage 20 V
