| Mfr. #: | STGW20V60DF |
|---|---|
| 製造商: | STMicroelectronics |
| 描述: | IGBT Transistors 600V 20A High Speed Trench Gate IGBT |
| 生命週期: | 製造商新產品 |
| 數據表: | STGW20V60DF 數據表 |
Product belongs to the 600-650V IGBTs series. Tube is the packaging method for this product Weight of 0.229281 oz Through Hole Mounting-Style TO-247-3 The Standard for this product is CMOS/TTL. Through Hole mounting type Supplier device package: TO-247 Configuration Single Maximum current collector Ic is 40A . Maximum collector-emitter breakdown voltage of 600V The Current-Collector-Pulsed-Icm is rated at 80A. The Vce-on-Max-Vge-Ic is rated at 2.2V @ 15V, 20A. 38ns/149ns Td-on-off at 25°C; Operating temperature: 400V, 20A, 15V Power-off control: 167 W Maximum operating temperature of + 175 C Minimum operating temperature: - 55 C Rated VCEO up to 600 V Saturation voltage between collector and emitter is 2.3 V 40 A Continuous Collector Current at 25°C Maximum-Gate-Emitter-Voltage: 20 V
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

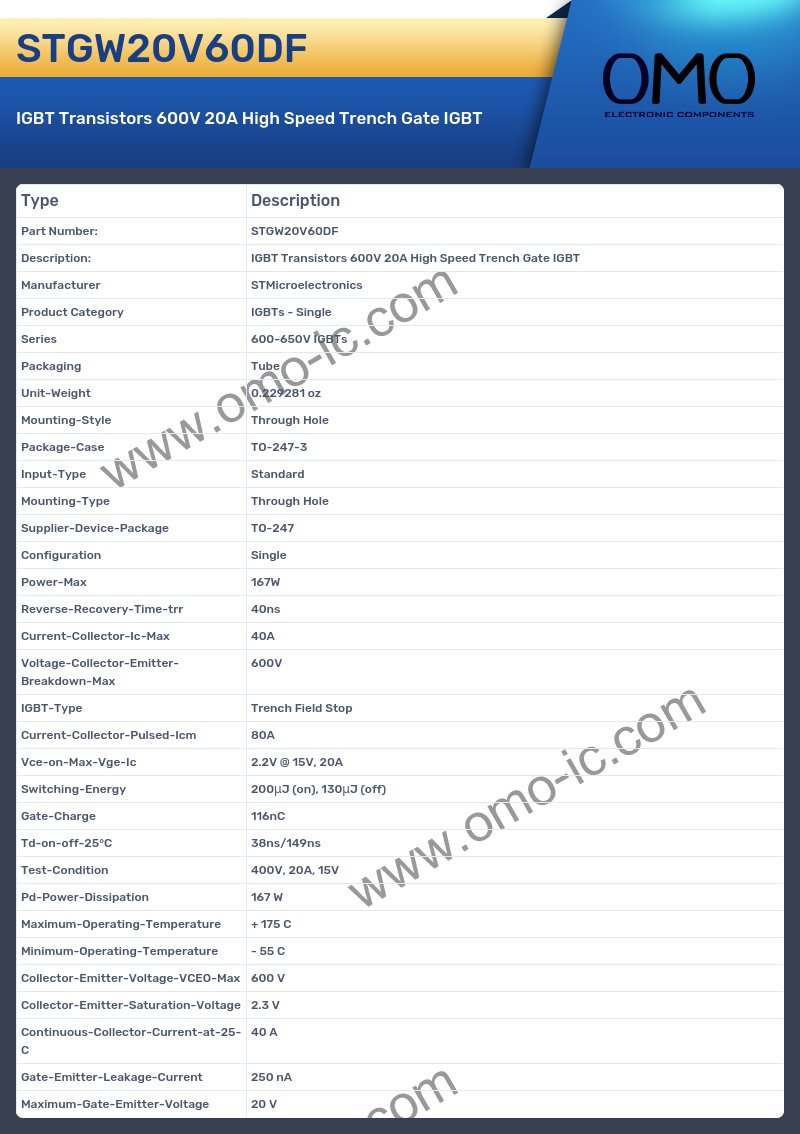

STGW20V60DF Specifications
A: Is the cutoff frequency of the product Series?
Q: Yes, the product's Series is indeed 600-650V IGBTs
A: At what frequency does the Packaging?
Q: The product Packaging is Tube.
A: What is the Unit-Weight of the product?
Q: The Unit-Weight of the product is 0.229281 oz.
A: What is the Mounting-Style of the product?
Q: The Mounting-Style of the product is Through Hole.
A: What is the Package-Case of the product?
Q: The Package-Case of the product is TO-247-3.
A: Is the cutoff frequency of the product Input-Type?
Q: Yes, the product's Input-Type is indeed Standard
A: What is the Mounting-Type of the product?
Q: The Mounting-Type of the product is Through Hole.
A: Is the cutoff frequency of the product Supplier-Device-Package?
Q: Yes, the product's Supplier-Device-Package is indeed TO-247
A: What is the Configuration of the product?
Q: The Configuration of the product is Single.
A: Is the cutoff frequency of the product Current-Collector-Ic-Max?
Q: Yes, the product's Current-Collector-Ic-Max is indeed 40A
A: At what frequency does the Voltage-Collector-Emitter-Breakdown-Max?
Q: The product Voltage-Collector-Emitter-Breakdown-Max is 600V.
A: Is the cutoff frequency of the product Current-Collector-Pulsed-Icm?
Q: Yes, the product's Current-Collector-Pulsed-Icm is indeed 80A
A: What is the Vce-on-Max-Vge-Ic of the product?
Q: The Vce-on-Max-Vge-Ic of the product is 2.2V @ 15V, 20A.
A: Is the cutoff frequency of the product Td-on-off-25°C?
Q: Yes, the product's Td-on-off-25°C is indeed 38ns/149ns
A: At what frequency does the Test-Condition?
Q: The product Test-Condition is 400V, 20A, 15V.
A: Is the cutoff frequency of the product Pd-Power-Dissipation?
Q: Yes, the product's Pd-Power-Dissipation is indeed 167 W
A: At what frequency does the Maximum-Operating-Temperature?
Q: The product Maximum-Operating-Temperature is + 175 C.
A: What is the Minimum-Operating-Temperature of the product?
Q: The Minimum-Operating-Temperature of the product is - 55 C.
A: What is the Collector-Emitter-Voltage-VCEO-Max of the product?
Q: The Collector-Emitter-Voltage-VCEO-Max of the product is 600 V.
A: Is the cutoff frequency of the product Collector-Emitter-Saturation-Voltage?
Q: Yes, the product's Collector-Emitter-Saturation-Voltage is indeed 2.3 V
A: What is the Continuous-Collector-Current-at-25-C of the product?
Q: The Continuous-Collector-Current-at-25-C of the product is 40 A.
A: What is the Maximum-Gate-Emitter-Voltage of the product?
Q: The Maximum-Gate-Emitter-Voltage of the product is 20 V.
