STGW30M65DF2

STGW30M65DF2 Overview

Product belongs to the - series. Tube is the packaging method for this product TO-247-3 The Standard for this product is CMOS/TTL. Through Hole mounting type Supplier device package: TO-247 Maximum current collector Ic is 60A . Maximum collector-emitter breakdown voltage of 650V The Current-Collector-Pulsed-Icm is rated at 120A. The Vce-on-Max-Vge-Ic is rated at 2V @ 15V, 30A. 31.6ns/115ns Td-on-off at 25°C; Operating temperature: 400V, 30A, 10 Ohm, 15V

STGW30M65DF2 Image

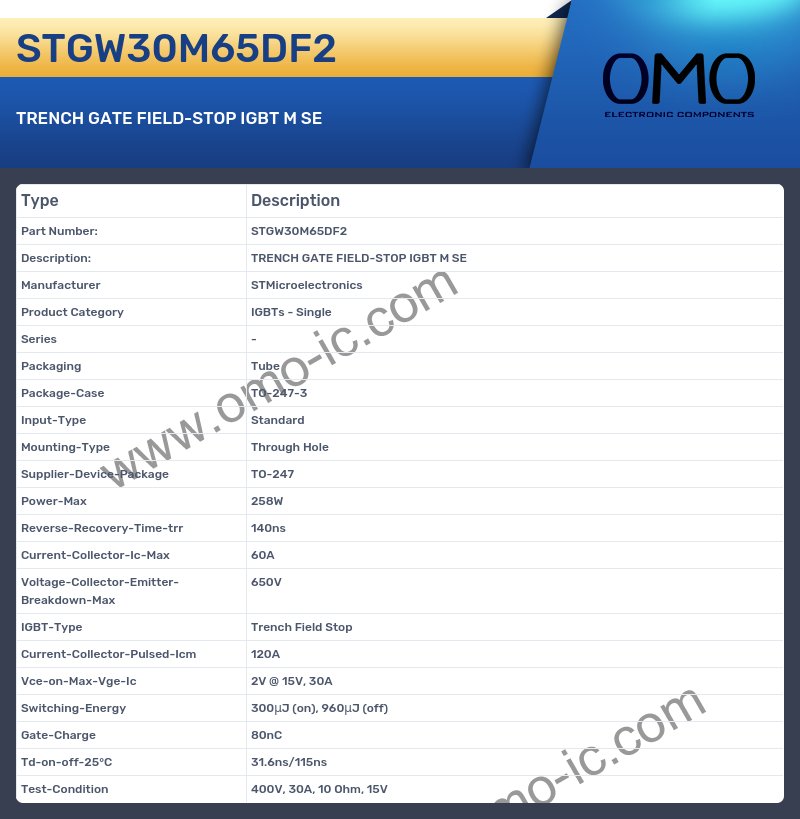

STGW30M65DF2 Specifications

• Manufacturer STMicroelectronics
• Product Category IGBTs - Single
• Series -
• Packaging Tube
• Package-Case TO-247-3
• Input-Type Standard
• Mounting-Type Through Hole
• Supplier-Device-Package TO-247
• Power-Max 258W
• Reverse-Recovery-Time-trr 140ns
• Current-Collector-Ic-Max 60A
• Voltage-Collector-Emitter-Breakdown-Max 650V
• IGBT-Type Trench Field Stop
• Current-Collector-Pulsed-Icm 120A
• Vce-on-Max-Vge-Ic 2V @ 15V, 30A
• Switching-Energy 300μJ (on), 960μJ (off)
• Gate-Charge 80nC
• Td-on-off-25°C 31.6ns/115ns
• Test-Condition 400V, 30A, 10 Ohm, 15V
