STGW60H65DF

STGW60H65DF Overview

Product belongs to the 600-650V IGBTs series. Tube is the packaging method for this product Weight of 0.229281 oz Through Hole Mounting-Style TO-247-3 The Standard for this product is CMOS/TTL. Through Hole mounting type Supplier device package: TO-247 Maximum current collector Ic is 120A . Maximum collector-emitter breakdown voltage of 650V The Current-Collector-Pulsed-Icm is rated at 240A. The Vce-on-Max-Vge-Ic is rated at 1.9V @ 15V, 60A. 67ns/165ns Td-on-off at 25°C; Operating temperature: 400V, 60A, 10 Ohm, 15V Power-off control: 360 W Rated VCEO up to 650 V Saturation voltage between collector and emitter is 2.1 V 120 A Continuous Collector Current at 25°C Maximum-Gate-Emitter-Voltage: 20 V

STGW60H65DF Image

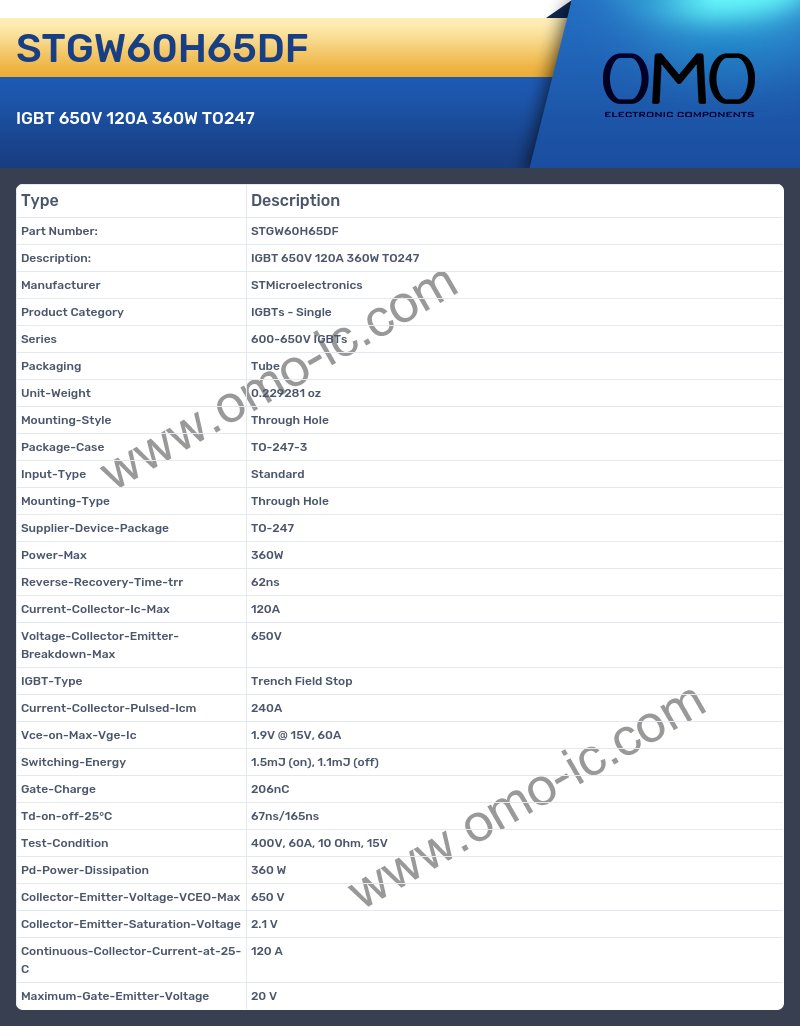

STGW60H65DF Specifications

• Manufacturer STMicroelectronics
• Product Category IGBTs - Single
• Series 600-650V IGBTs
• Packaging Tube
• Unit-Weight 0.229281 oz
• Mounting-Style Through Hole
• Package-Case TO-247-3
• Input-Type Standard
• Mounting-Type Through Hole
• Supplier-Device-Package TO-247
• Power-Max 360W
• Reverse-Recovery-Time-trr 62ns
• Current-Collector-Ic-Max 120A
• Voltage-Collector-Emitter-Breakdown-Max 650V
• IGBT-Type Trench Field Stop
• Current-Collector-Pulsed-Icm 240A
• Vce-on-Max-Vge-Ic 1.9V @ 15V, 60A
• Switching-Energy 1.5mJ (on), 1.1mJ (off)
• Gate-Charge 206nC
• Td-on-off-25°C 67ns/165ns
• Test-Condition 400V, 60A, 10 Ohm, 15V
• Pd-Power-Dissipation 360 W
• Collector-Emitter-Voltage-VCEO-Max 650 V
• Collector-Emitter-Saturation-Voltage 2.1 V
• Continuous-Collector-Current-at-25-C 120 A
• Maximum-Gate-Emitter-Voltage 20 V
