| Mfr. #: | STGWT40V60DLF |
|---|---|
| 製造商: | STMicroelectronics |
| 描述: | IGBT Transistors 600V 40A High Speed Trench Gate IGBT |
| 生命週期: | 製造商新產品 |
| 數據表: | STGWT40V60DLF 數據表 |
Product belongs to the 600-650V IGBTs series. Tube is the packaging method for this product Weight of 0.238311 oz Through Hole Mounting-Style TO-3P-3, SC-65-3 The Standard for this product is CMOS/TTL. Through Hole mounting type Supplier device package: TO-3P Configuration Single Maximum current collector Ic is 80A . Maximum collector-emitter breakdown voltage of 600V The Current-Collector-Pulsed-Icm is rated at 160A. The Vce-on-Max-Vge-Ic is rated at 2.3V @ 15V, 40A. -/208ns Td-on-off at 25°C; Operating temperature: 400V, 40A, 10 Ohm, 15V Power-off control: 283 W Maximum operating temperature of + 175 C Minimum operating temperature: - 55 C Rated VCEO up to 600 V Saturation voltage between collector and emitter is 2.35 V 80 A Continuous Collector Current at 25°C Maximum-Gate-Emitter-Voltage: 20 V
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

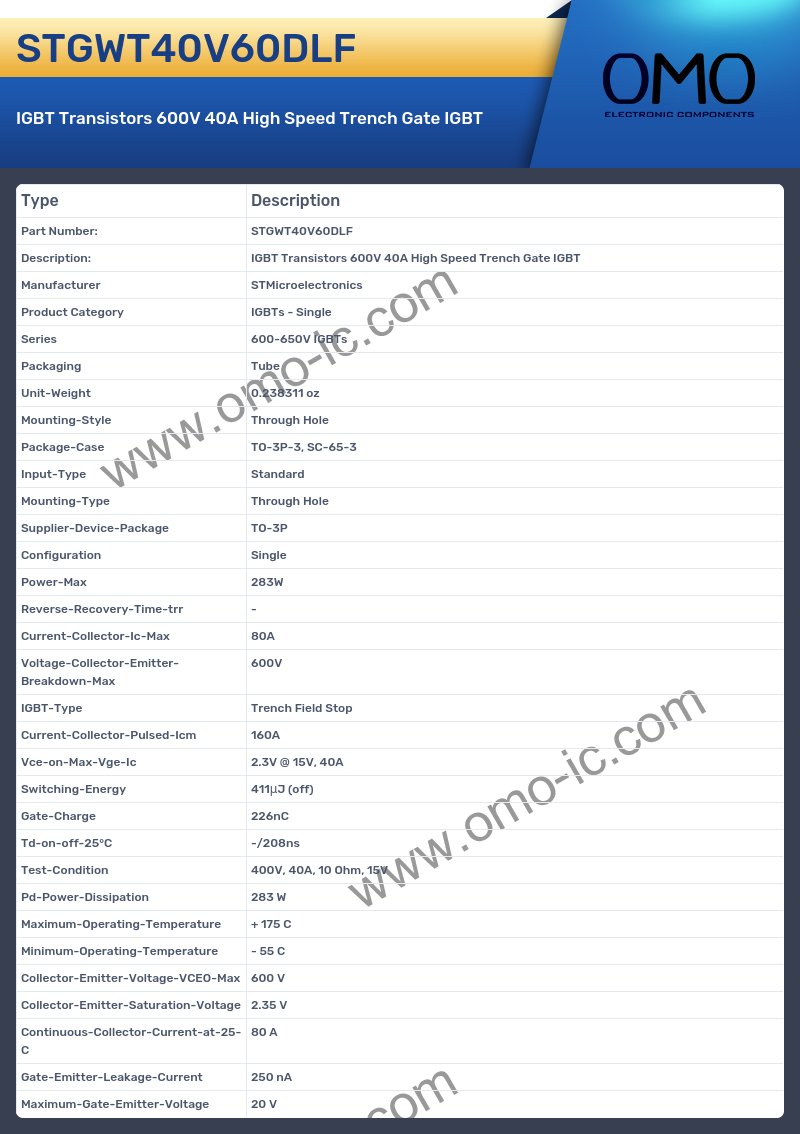

STGWT40V60DLF Specifications
