| Mfr. #: | STGWT60H65FB |
|---|---|
| 製造商: | STMicroelectronics |
| 描述: | IGBT Transistors 650V 60A HSpd trench gate field-stop IGBT |
| 生命週期: | 製造商新產品 |
| 數據表: | STGWT60H65FB 數據表 |
Product belongs to the 600-650V IGBTs series. Tube is the packaging method for this product Weight of 0.238311 oz Through Hole Mounting-Style TO-3P-3, SC-65-3 The Standard for this product is CMOS/TTL. Through Hole mounting type Supplier device package: TO-3P Configuration Single Maximum current collector Ic is 80A . Maximum collector-emitter breakdown voltage of 650V The Current-Collector-Pulsed-Icm is rated at 240A. The Vce-on-Max-Vge-Ic is rated at 2.3V @ 15V, 60A. 51ns/160ns Td-on-off at 25°C; Operating temperature: 400V, 60A, 5 Ohm, 15V Power-off control: 375 W Maximum operating temperature of + 175 C Minimum operating temperature: - 40 C Rated VCEO up to 650 V Saturation voltage between collector and emitter is 1.6 V 80 A Continuous Collector Current at 25°C Maximum-Gate-Emitter-Voltage: +/- 20 V Maximal 60 A Collector Current of Continuity;
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

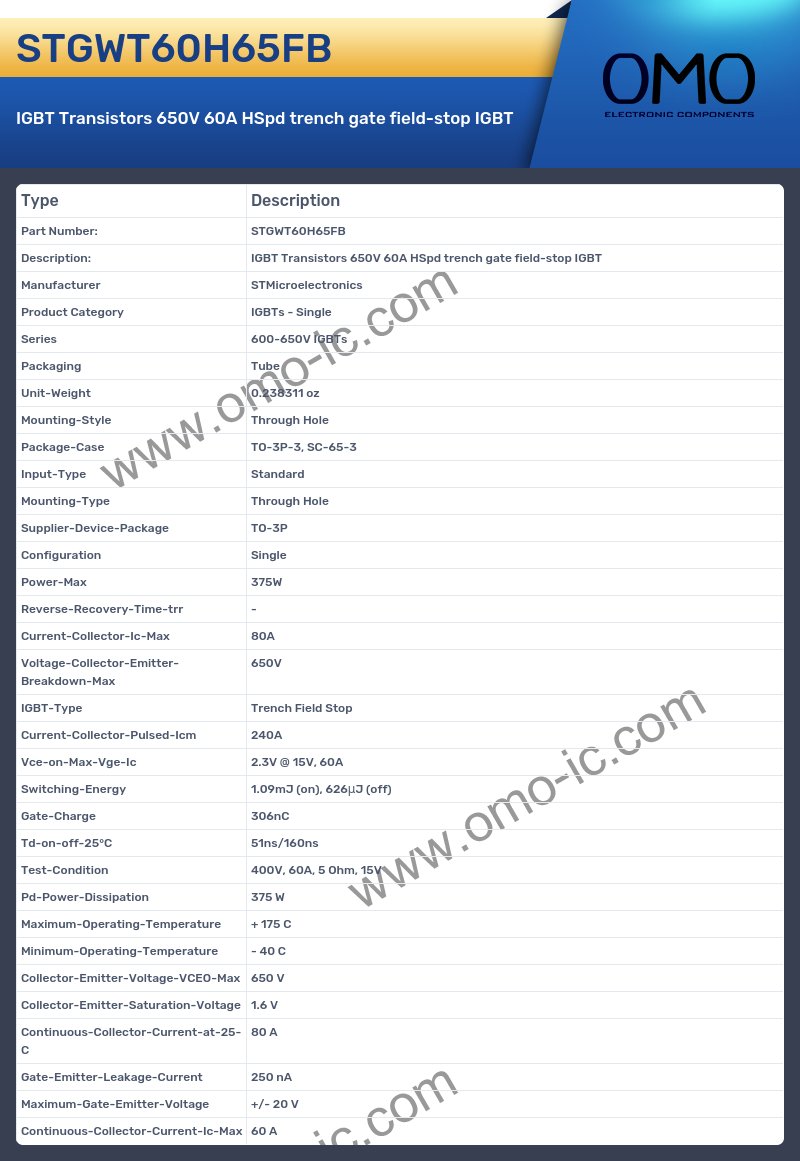

STGWT60H65FB Specifications
A: What is the Series of the product?
Q: The Series of the product is 600-650V IGBTs.
A: Is the cutoff frequency of the product Packaging?
Q: Yes, the product's Packaging is indeed Tube
A: At what frequency does the Unit-Weight?
Q: The product Unit-Weight is 0.238311 oz.
A: What is the Mounting-Style of the product?
Q: The Mounting-Style of the product is Through Hole.
A: At what frequency does the Package-Case?
Q: The product Package-Case is TO-3P-3, SC-65-3.
A: What is the Input-Type of the product?
Q: The Input-Type of the product is Standard.
A: Is the cutoff frequency of the product Mounting-Type?
Q: Yes, the product's Mounting-Type is indeed Through Hole
A: Is the cutoff frequency of the product Supplier-Device-Package?
Q: Yes, the product's Supplier-Device-Package is indeed TO-3P
A: At what frequency does the Configuration?
Q: The product Configuration is Single.
A: What is the Current-Collector-Ic-Max of the product?
Q: The Current-Collector-Ic-Max of the product is 80A.
A: At what frequency does the Voltage-Collector-Emitter-Breakdown-Max?
Q: The product Voltage-Collector-Emitter-Breakdown-Max is 650V.
A: What is the Current-Collector-Pulsed-Icm of the product?
Q: The Current-Collector-Pulsed-Icm of the product is 240A.
A: At what frequency does the Vce-on-Max-Vge-Ic?
Q: The product Vce-on-Max-Vge-Ic is 2.3V @ 15V, 60A.
A: Is the cutoff frequency of the product Td-on-off-25°C?
Q: Yes, the product's Td-on-off-25°C is indeed 51ns/160ns
A: Is the cutoff frequency of the product Test-Condition?
Q: Yes, the product's Test-Condition is indeed 400V, 60A, 5 Ohm, 15V
A: Is the cutoff frequency of the product Pd-Power-Dissipation?
Q: Yes, the product's Pd-Power-Dissipation is indeed 375 W
A: What is the Maximum-Operating-Temperature of the product?
Q: The Maximum-Operating-Temperature of the product is + 175 C.
A: Is the cutoff frequency of the product Minimum-Operating-Temperature?
Q: Yes, the product's Minimum-Operating-Temperature is indeed - 40 C
A: Is the cutoff frequency of the product Collector-Emitter-Voltage-VCEO-Max?
Q: Yes, the product's Collector-Emitter-Voltage-VCEO-Max is indeed 650 V
A: At what frequency does the Collector-Emitter-Saturation-Voltage?
Q: The product Collector-Emitter-Saturation-Voltage is 1.6 V.
A: Is the cutoff frequency of the product Continuous-Collector-Current-at-25-C?
Q: Yes, the product's Continuous-Collector-Current-at-25-C is indeed 80 A
A: What is the Maximum-Gate-Emitter-Voltage of the product?
Q: The Maximum-Gate-Emitter-Voltage of the product is +/- 20 V.
A: Is the cutoff frequency of the product Continuous-Collector-Current-Ic-Max?
Q: Yes, the product's Continuous-Collector-Current-Ic-Max is indeed 60 A
