| Mfr. #: | STH270N4F3-2 |
|---|---|
| 製造商: | STMicroelectronics |
| 描述: | MOSFET N-CH 40V 180A H2PAK-2 |
| 生命週期: | 製造商新產品 |
| 數據表: | STH270N4F3-2 數據表 |
Product belongs to the N-channel STripFET series. Reel is the packaging method for this product Weight of 0.139332 oz SMD/SMT Mounting-Style Trade name: STripFET. TO-252-3 Si is the technology used. Number of channels: 1 Channel Configuration Single Transistor type: 1 N-Channel Power-off control: 300 W Maximum operating temperature of + 175 C Minimum operating temperature: - 55 C This product has a 45 ns of 16 ns. This product has a 180 ns of 16 ns. This product's 20 V. The ID of continuous drain current is 180 A. This product has a Vds-Drain-Source-Breakdown-Voltageof 40 V. This product has a 2 V Vgs-th gate-source threshold voltage for efficient power management. The 1.4 mOhms for this product is 12 Ohms. The transistor polarity is N-Channel. 'Typical-Turn-Off-Delay-Time' of 110 ns This product has a 25 ns. Qg-Gate-Charge is 110 nC. This product operates in Enhancement channel mode for optimal performance.
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

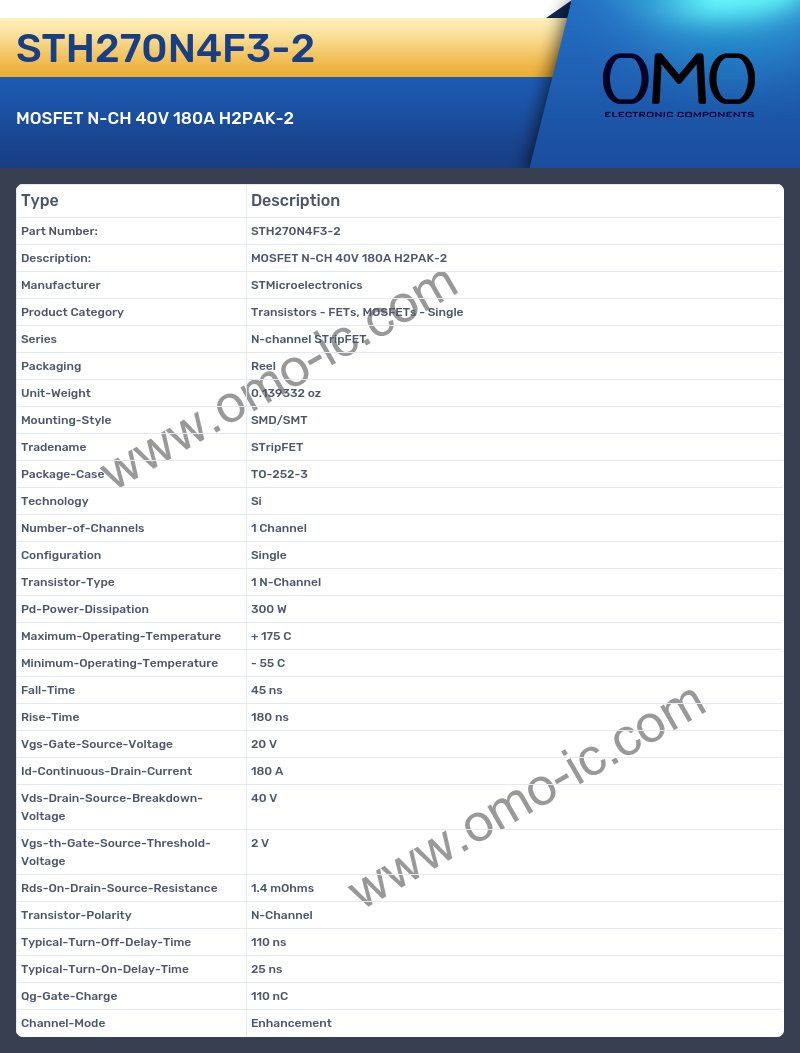

STH270N4F3-2 Specifications
A: What is the Series of the product?
Q: The Series of the product is N-channel STripFET.
A: What is the Packaging of the product?
Q: The Packaging of the product is Reel.
A: At what frequency does the Unit-Weight?
Q: The product Unit-Weight is 0.139332 oz.
A: At what frequency does the Mounting-Style?
Q: The product Mounting-Style is SMD/SMT.
A: What is the Tradename of the product?
Q: The Tradename of the product is STripFET.
A: At what frequency does the Package-Case?
Q: The product Package-Case is TO-252-3.
A: What is the Technology of the product?
Q: The Technology of the product is Si.
A: At what frequency does the Number-of-Channels?
Q: The product Number-of-Channels is 1 Channel.
A: What is the Configuration of the product?
Q: The Configuration of the product is Single.
A: Is the cutoff frequency of the product Transistor-Type?
Q: Yes, the product's Transistor-Type is indeed 1 N-Channel
A: Is the cutoff frequency of the product Pd-Power-Dissipation?
Q: Yes, the product's Pd-Power-Dissipation is indeed 300 W
A: At what frequency does the Maximum-Operating-Temperature?
Q: The product Maximum-Operating-Temperature is + 175 C.
A: Is the cutoff frequency of the product Minimum-Operating-Temperature?
Q: Yes, the product's Minimum-Operating-Temperature is indeed - 55 C
A: What is the Fall-Time of the product?
Q: The Fall-Time of the product is 45 ns.
A: What is the Rise-Time of the product?
Q: The Rise-Time of the product is 180 ns.
A: What is the Vgs-Gate-Source-Voltage of the product?
Q: The Vgs-Gate-Source-Voltage of the product is 20 V.
A: What is the Id-Continuous-Drain-Current of the product?
Q: The Id-Continuous-Drain-Current of the product is 180 A.
A: At what frequency does the Vds-Drain-Source-Breakdown-Voltage?
Q: The product Vds-Drain-Source-Breakdown-Voltage is 40 V.
A: Is the cutoff frequency of the product Vgs-th-Gate-Source-Threshold-Voltage?
Q: Yes, the product's Vgs-th-Gate-Source-Threshold-Voltage is indeed 2 V
A: Is the cutoff frequency of the product Rds-On-Drain-Source-Resistance?
Q: Yes, the product's Rds-On-Drain-Source-Resistance is indeed 1.4 mOhms
A: Is the cutoff frequency of the product Transistor-Polarity?
Q: Yes, the product's Transistor-Polarity is indeed N-Channel
A: What is the Typical-Turn-Off-Delay-Time of the product?
Q: The Typical-Turn-Off-Delay-Time of the product is 110 ns.
A: What is the Typical-Turn-On-Delay-Time of the product?
Q: The Typical-Turn-On-Delay-Time of the product is 25 ns.
A: Is the cutoff frequency of the product Qg-Gate-Charge?
Q: Yes, the product's Qg-Gate-Charge is indeed 110 nC
A: Is the cutoff frequency of the product Channel-Mode?
Q: Yes, the product's Channel-Mode is indeed Enhancement
