| Mfr. #: | STH270N8F7-6 |
|---|---|
| 製造商: | STMicroelectronics |
| 描述: | MOSFET N-CH 80V 180A H2PAK-6 |
| 生命週期: | 製造商新產品 |
| 數據表: | STH270N8F7-6 數據表 |

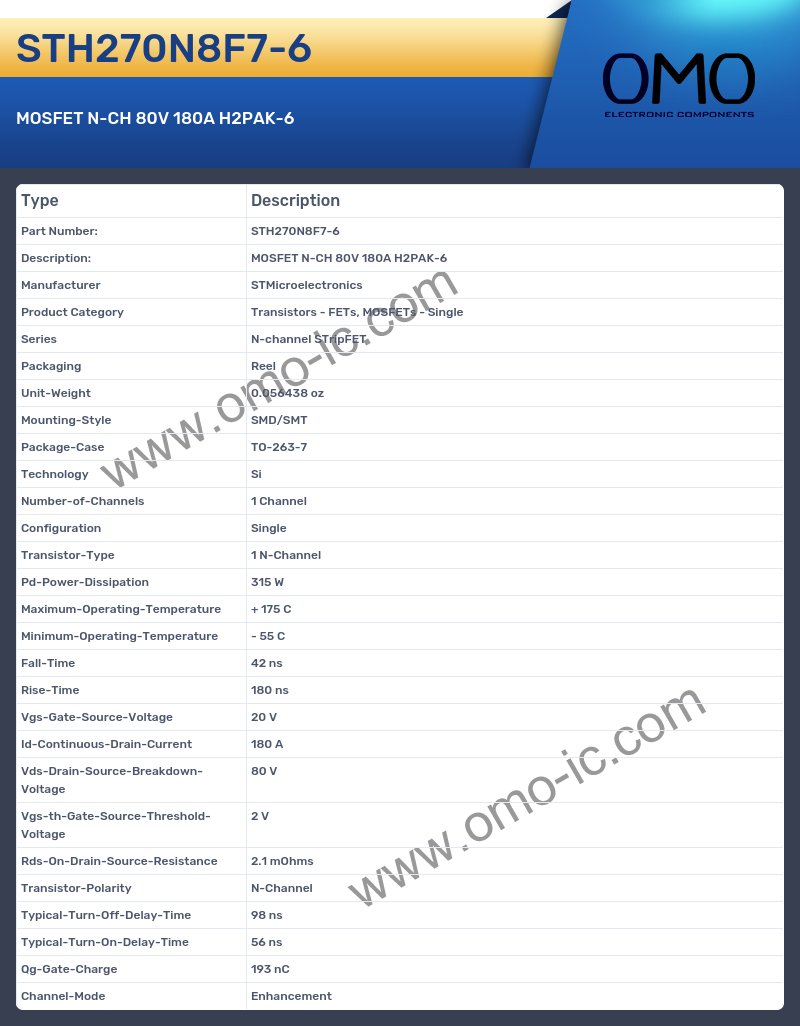

Product belongs to the N-channel STripFET series. Reel is the packaging method for this product Weight of 0.056438 oz SMD/SMT Mounting-Style TO-263-7 Si is the technology used. Number of channels: 1 Channel Configuration Single Transistor type: 1 N-Channel Power-off control: 315 W Maximum operating temperature of + 175 C Minimum operating temperature: - 55 C This product has a 42 ns of 16 ns. This product has a 180 ns of 16 ns. This product's 20 V. The ID of continuous drain current is 180 A. This product has a Vds-Drain-Source-Breakdown-Voltageof 80 V. This product has a 2 V Vgs-th gate-source threshold voltage for efficient power management. The 2.1 mOhms for this product is 12 Ohms. The transistor polarity is N-Channel. 'Typical-Turn-Off-Delay-Time' of 98 ns This product has a 56 ns. Qg-Gate-Charge is 193 nC. This product operates in Enhancement channel mode for optimal performance.
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
STH270N8F7-6 Specifications
A: At what frequency does the Series?
Q: The product Series is N-channel STripFET.
A: Is the cutoff frequency of the product Packaging?
Q: Yes, the product's Packaging is indeed Reel
A: Is the cutoff frequency of the product Unit-Weight?
Q: Yes, the product's Unit-Weight is indeed 0.056438 oz
A: What is the Mounting-Style of the product?
Q: The Mounting-Style of the product is SMD/SMT.
A: What is the Package-Case of the product?
Q: The Package-Case of the product is TO-263-7.
A: What is the Technology of the product?
Q: The Technology of the product is Si.
A: What is the Number-of-Channels of the product?
Q: The Number-of-Channels of the product is 1 Channel.
A: At what frequency does the Configuration?
Q: The product Configuration is Single.
A: Is the cutoff frequency of the product Transistor-Type?
Q: Yes, the product's Transistor-Type is indeed 1 N-Channel
A: At what frequency does the Pd-Power-Dissipation?
Q: The product Pd-Power-Dissipation is 315 W.
A: Is the cutoff frequency of the product Maximum-Operating-Temperature?
Q: Yes, the product's Maximum-Operating-Temperature is indeed + 175 C
A: At what frequency does the Minimum-Operating-Temperature?
Q: The product Minimum-Operating-Temperature is - 55 C.
A: What is the Fall-Time of the product?
Q: The Fall-Time of the product is 42 ns.
A: What is the Rise-Time of the product?
Q: The Rise-Time of the product is 180 ns.
A: What is the Vgs-Gate-Source-Voltage of the product?
Q: The Vgs-Gate-Source-Voltage of the product is 20 V.
A: Is the cutoff frequency of the product Id-Continuous-Drain-Current?
Q: Yes, the product's Id-Continuous-Drain-Current is indeed 180 A
A: Is the cutoff frequency of the product Vds-Drain-Source-Breakdown-Voltage?
Q: Yes, the product's Vds-Drain-Source-Breakdown-Voltage is indeed 80 V
A: Is the cutoff frequency of the product Vgs-th-Gate-Source-Threshold-Voltage?
Q: Yes, the product's Vgs-th-Gate-Source-Threshold-Voltage is indeed 2 V
A: What is the Rds-On-Drain-Source-Resistance of the product?
Q: The Rds-On-Drain-Source-Resistance of the product is 2.1 mOhms.
A: At what frequency does the Transistor-Polarity?
Q: The product Transistor-Polarity is N-Channel.
A: Is the cutoff frequency of the product Typical-Turn-Off-Delay-Time?
Q: Yes, the product's Typical-Turn-Off-Delay-Time is indeed 98 ns
A: What is the Typical-Turn-On-Delay-Time of the product?
Q: The Typical-Turn-On-Delay-Time of the product is 56 ns.
A: At what frequency does the Qg-Gate-Charge?
Q: The product Qg-Gate-Charge is 193 nC.
A: What is the Channel-Mode of the product?
Q: The Channel-Mode of the product is Enhancement.
