| Mfr. #: | STH310N10F7-2 |
|---|---|
| 製造商: | STMicroelectronics |
| 描述: | MOSFET N-CH 100V 180A H2PAK-2 |
| 生命週期: | 製造商新產品 |
| 數據表: | STH310N10F7-2 數據表 |
Product belongs to the DeepGATE, STripFET VII series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.139332 oz SMD/SMT Mounting-Style Trade name: STripFET. TO-263-3, D2Pak (2 Leads + Tab) Variant Si is the technology used. Operational temperature range: -55°C ~ 175°C (TJ) Surface Mount mounting type Number of channels: 1 Channel Supplier device package: H2PAK Configuration Single This product uses an MOSFET N-Channel, Metal Oxide FET-Type transistor. Transistor type: 1 N-Channel 100V This product has an 12800pF @ 25V value of 300pF @ 25V. This product's Standard. 180A (Tc) continuous drain-ID current at 25°C; This product has an 2.5 mOhm @ 60A, 10V of 12 Ohm @ 150mA, 0V. Power-off control: 315 W Maximum operating temperature of + 175 C Minimum operating temperature: - 55 C This product has a 40 ns of 16 ns. This product has a 108 ns of 16 ns. This product's 20 V. The ID of continuous drain current is 180 A. This product has a Vds-Drain-Source-Breakdown-Voltageof 100 V. This product has a 3.8 V Vgs-th gate-source threshold voltage for efficient power management. The 2.5 mOhms for this product is 12 Ohms. The transistor polarity is N-Channel. 'Typical-Turn-Off-Delay-Time' of 148 ns This product has a 62 ns. Qg-Gate-Charge is 180 nC.
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

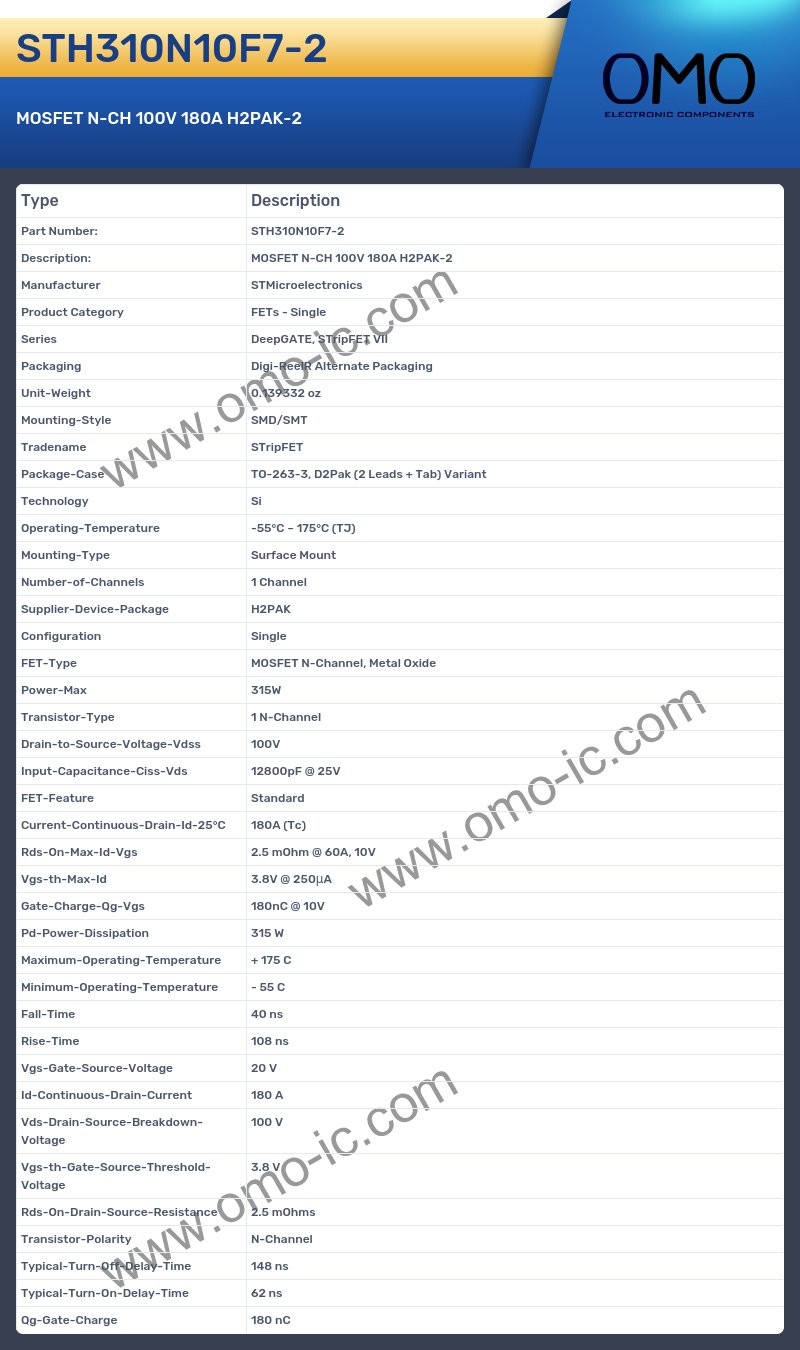

STH310N10F7-2 Specifications
A: At what frequency does the Series?
Q: The product Series is DeepGATE, STripFET VII.
A: Is the cutoff frequency of the product Packaging?
Q: Yes, the product's Packaging is indeed Digi-ReelR Alternate Packaging
A: Is the cutoff frequency of the product Unit-Weight?
Q: Yes, the product's Unit-Weight is indeed 0.139332 oz
A: What is the Mounting-Style of the product?
Q: The Mounting-Style of the product is SMD/SMT.
A: Is the cutoff frequency of the product Tradename?
Q: Yes, the product's Tradename is indeed STripFET
A: What is the Package-Case of the product?
Q: The Package-Case of the product is TO-263-3, D2Pak (2 Leads + Tab) Variant.
A: Is the cutoff frequency of the product Technology?
Q: Yes, the product's Technology is indeed Si
A: At what frequency does the Operating-Temperature?
Q: The product Operating-Temperature is -55°C ~ 175°C (TJ).
A: What is the Mounting-Type of the product?
Q: The Mounting-Type of the product is Surface Mount.
A: At what frequency does the Number-of-Channels?
Q: The product Number-of-Channels is 1 Channel.
A: What is the Supplier-Device-Package of the product?
Q: The Supplier-Device-Package of the product is H2PAK.
A: What is the Configuration of the product?
Q: The Configuration of the product is Single.
A: Is the cutoff frequency of the product FET-Type?
Q: Yes, the product's FET-Type is indeed MOSFET N-Channel, Metal Oxide
A: What is the Transistor-Type of the product?
Q: The Transistor-Type of the product is 1 N-Channel.
A: Is the cutoff frequency of the product Drain-to-Source-Voltage-Vdss?
Q: Yes, the product's Drain-to-Source-Voltage-Vdss is indeed 100V
A: At what frequency does the Input-Capacitance-Ciss-Vds?
Q: The product Input-Capacitance-Ciss-Vds is 12800pF @ 25V.
A: What is the FET-Feature of the product?
Q: The FET-Feature of the product is Standard.
A: What is the Current-Continuous-Drain-Id-25°C of the product?
Q: The Current-Continuous-Drain-Id-25°C of the product is 180A (Tc).
A: Is the cutoff frequency of the product Rds-On-Max-Id-Vgs?
Q: Yes, the product's Rds-On-Max-Id-Vgs is indeed 2.5 mOhm @ 60A, 10V
A: At what frequency does the Pd-Power-Dissipation?
Q: The product Pd-Power-Dissipation is 315 W.
A: At what frequency does the Maximum-Operating-Temperature?
Q: The product Maximum-Operating-Temperature is + 175 C.
A: Is the cutoff frequency of the product Minimum-Operating-Temperature?
Q: Yes, the product's Minimum-Operating-Temperature is indeed - 55 C
A: At what frequency does the Fall-Time?
Q: The product Fall-Time is 40 ns.
A: At what frequency does the Rise-Time?
Q: The product Rise-Time is 108 ns.
A: Is the cutoff frequency of the product Vgs-Gate-Source-Voltage?
Q: Yes, the product's Vgs-Gate-Source-Voltage is indeed 20 V
A: What is the Id-Continuous-Drain-Current of the product?
Q: The Id-Continuous-Drain-Current of the product is 180 A.
A: What is the Vds-Drain-Source-Breakdown-Voltage of the product?
Q: The Vds-Drain-Source-Breakdown-Voltage of the product is 100 V.
A: What is the Vgs-th-Gate-Source-Threshold-Voltage of the product?
Q: The Vgs-th-Gate-Source-Threshold-Voltage of the product is 3.8 V.
A: What is the Rds-On-Drain-Source-Resistance of the product?
Q: The Rds-On-Drain-Source-Resistance of the product is 2.5 mOhms.
A: What is the Transistor-Polarity of the product?
Q: The Transistor-Polarity of the product is N-Channel.
A: What is the Typical-Turn-Off-Delay-Time of the product?
Q: The Typical-Turn-Off-Delay-Time of the product is 148 ns.
A: What is the Typical-Turn-On-Delay-Time of the product?
Q: The Typical-Turn-On-Delay-Time of the product is 62 ns.
A: Is the cutoff frequency of the product Qg-Gate-Charge?
Q: Yes, the product's Qg-Gate-Charge is indeed 180 nC
