STL150N3LLH5

STL150N3LLH5 Overview

Product belongs to the N-channel STripFET series. Reel is the packaging method for this product SMD/SMT Mounting-Style PowerFlat-8 Si is the technology used. Number of channels: 1 Channel Configuration Single Transistor type: 1 N-Channel Power-off control: 80 W Maximum operating temperature of + 150 C Minimum operating temperature: - 55 C This product has a 47.8 ns of 16 ns. This product has a 30.8 ns of 16 ns. This product's 22 V. The ID of continuous drain current is 150 A. This product has a Vds-Drain-Source-Breakdown-Voltageof 30 V. The 1.75 mOhms for this product is 12 Ohms. The transistor polarity is N-Channel. 'Typical-Turn-Off-Delay-Time' of 65.8 ns This product has a 17.2 ns. This product operates in Enhancement channel mode for optimal performance.

STL150N3LLH5 Image

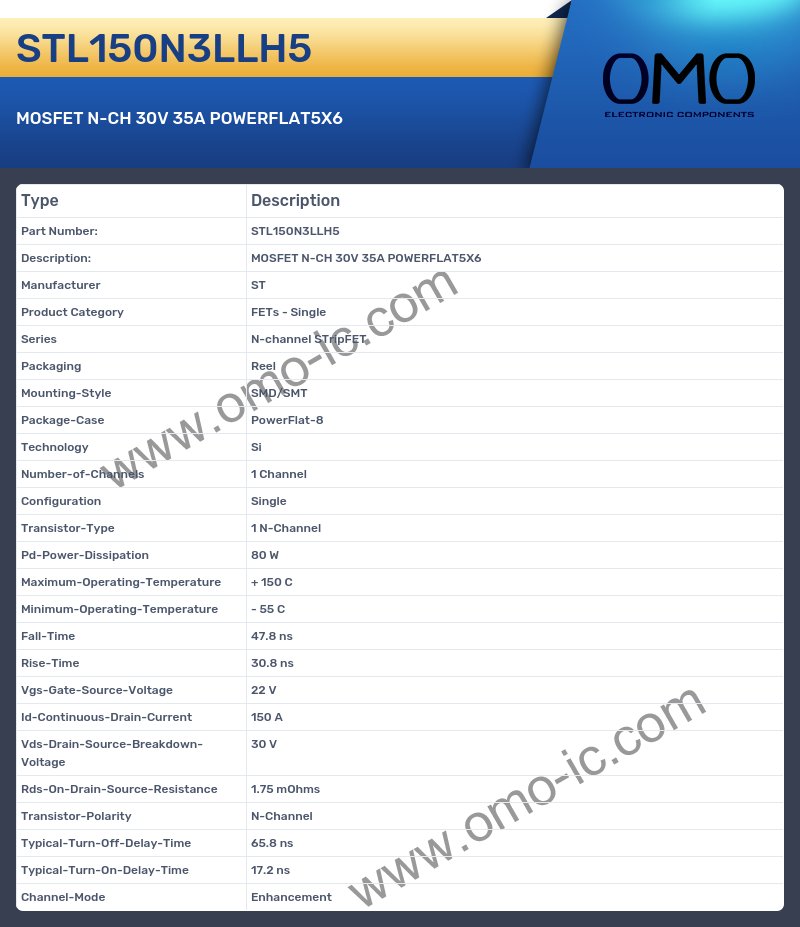

STL150N3LLH5 Specifications

• Manufacturer ST
• Product Category FETs - Single
• Series N-channel STripFET
• Packaging Reel
• Mounting-Style SMD/SMT
• Package-Case PowerFlat-8
• Technology Si
• Number-of-Channels 1 Channel
• Configuration Single
• Transistor-Type 1 N-Channel
• Pd-Power-Dissipation 80 W
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 55 C
• Fall-Time 47.8 ns
• Rise-Time 30.8 ns
• Vgs-Gate-Source-Voltage 22 V
• Id-Continuous-Drain-Current 150 A
• Vds-Drain-Source-Breakdown-Voltage 30 V
• Rds-On-Drain-Source-Resistance 1.75 mOhms
• Transistor-Polarity N-Channel
• Typical-Turn-Off-Delay-Time 65.8 ns
• Typical-Turn-On-Delay-Time 17.2 ns
• Channel-Mode Enhancement
