STL150N3LLH6

STL150N3LLH6 Overview

Product belongs to the N-channel STripFET series. Reel is the packaging method for this product SMD/SMT Mounting-Style PowerFlat-8 Si is the technology used. Number of channels: 1 Channel Configuration Single Quad Drain Triple Source Transistor type: 1 N-Channel Power-off control: 80 W Maximum operating temperature of + 150 C Minimum operating temperature: - 55 C This product has a 46 ns of 16 ns. This product has a 18 ns of 16 ns. This product's 20 V. The ID of continuous drain current is 150 A. This product has a Vds-Drain-Source-Breakdown-Voltageof 30 V. The 2.4 mOhms for this product is 12 Ohms. The transistor polarity is N-Channel. 'Typical-Turn-Off-Delay-Time' of 75 ns This product has a 17 ns. This product operates in Enhancement channel mode for optimal performance.

STL150N3LLH6 Image

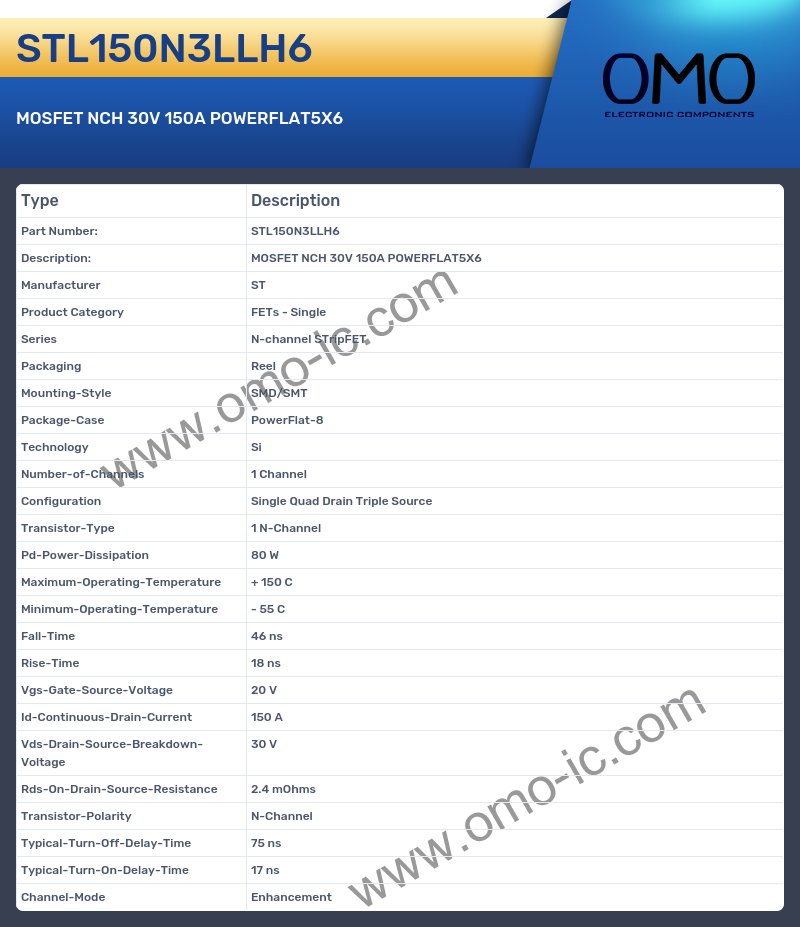

STL150N3LLH6 Specifications

• Manufacturer ST
• Product Category FETs - Single
• Series N-channel STripFET
• Packaging Reel
• Mounting-Style SMD/SMT
• Package-Case PowerFlat-8
• Technology Si
• Number-of-Channels 1 Channel
• Configuration Single Quad Drain Triple Source
• Transistor-Type 1 N-Channel
• Pd-Power-Dissipation 80 W
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 55 C
• Fall-Time 46 ns
• Rise-Time 18 ns
• Vgs-Gate-Source-Voltage 20 V
• Id-Continuous-Drain-Current 150 A
• Vds-Drain-Source-Breakdown-Voltage 30 V
• Rds-On-Drain-Source-Resistance 2.4 mOhms
• Transistor-Polarity N-Channel
• Typical-Turn-Off-Delay-Time 75 ns
• Typical-Turn-On-Delay-Time 17 ns
• Channel-Mode Enhancement
