STL7N60M2

STL7N60M2 Overview

Reel is the packaging method for this product SMD/SMT Mounting-Style PowerFlat-10 Si is the technology used. Number of channels: 1 Channel Configuration 1 N-Channel Transistor type: 1 N-Channel Power-off control: 67 W Maximum operating temperature of + 150 C This product has a 15.9 ns of 16 ns. This product has a 7.2 ns of 16 ns. This product's +/- 25 V. The ID of continuous drain current is 5 A. This product has a Vds-Drain-Source-Breakdown-Voltageof 600 V. This product has a 2 V Vgs-th gate-source threshold voltage for efficient power management. The 1.05 Ohms for this product is 12 Ohms. The transistor polarity is N-Channel. 'Typical-Turn-Off-Delay-Time' of 19.3 ns This product has a 7.6 ns. Qg-Gate-Charge is 8.8 nC. This product operates in Enhancement channel mode for optimal performance.

STL7N60M2 Image

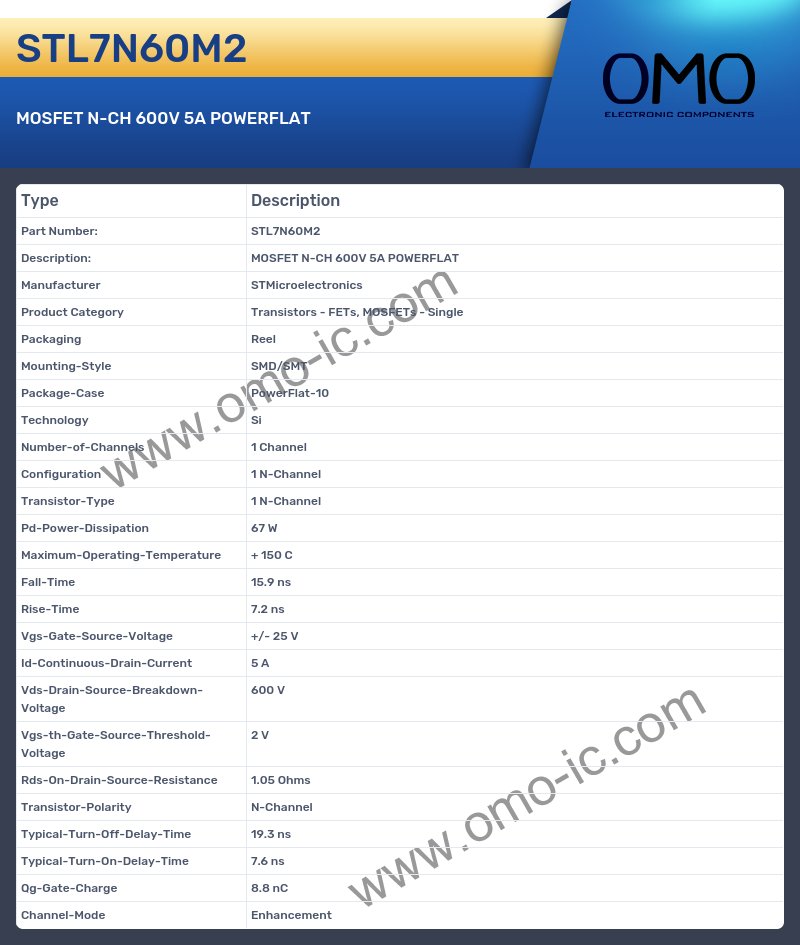

STL7N60M2 Specifications

• Manufacturer STMicroelectronics
• Product Category Transistors - FETs, MOSFETs - Single
• Packaging Reel
• Mounting-Style SMD/SMT
• Package-Case PowerFlat-10
• Technology Si
• Number-of-Channels 1 Channel
• Configuration 1 N-Channel
• Transistor-Type 1 N-Channel
• Pd-Power-Dissipation 67 W
• Maximum-Operating-Temperature + 150 C
• Fall-Time 15.9 ns
• Rise-Time 7.2 ns
• Vgs-Gate-Source-Voltage +/- 25 V
• Id-Continuous-Drain-Current 5 A
• Vds-Drain-Source-Breakdown-Voltage 600 V
• Vgs-th-Gate-Source-Threshold-Voltage 2 V
• Rds-On-Drain-Source-Resistance 1.05 Ohms
• Transistor-Polarity N-Channel
• Typical-Turn-Off-Delay-Time 19.3 ns
• Typical-Turn-On-Delay-Time 7.6 ns
• Qg-Gate-Charge 8.8 nC
• Channel-Mode Enhancement
