STM706PAM6F Overview

Product belongs to the STM706P series. Type: Simple Reset/Power-On Reset Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.017870 oz SMD/SMT Mounting-Style SO-8 Operational temperature range: -40°C ~ 85°C (TA) Surface Mount mounting type Output-Type: Active High Push-Pull Supplier device package: 8-SOIC The Push-Pull, Totem Pole. This product's Active High. This product has 1 monitored voltages. The reset timeout for this product is 160 ms Minimum. This product's 2.63V. Power-off control: 320 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C 40 uA is 92 nA. This product does not have No Backup capability. Maximum supply voltage of 5.5 V Minimum supply voltage is 1 V This product includes Watchdog This product's 3 V is 2.32 V. This product can only 1 Input at a time. This product features a Manual Reset function that allows for manual reset. This product does not support No Chip Enable. This product does not have Yes capability.

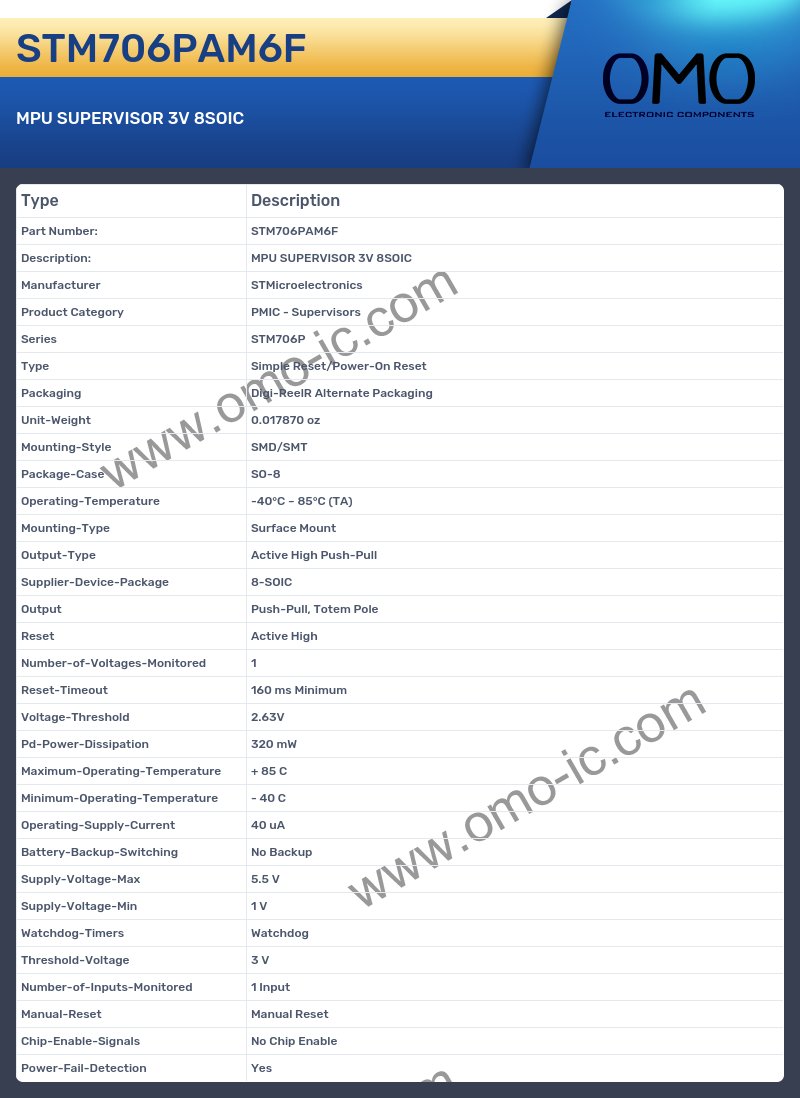

STM706PAM6F Image

STM706PAM6F Specifications

• Manufacturer STMicroelectronics
• Product Category PMIC - Supervisors
• Series STM706P
• Type Simple Reset/Power-On Reset
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.017870 oz
• Mounting-Style SMD/SMT
• Package-Case SO-8
• Operating-Temperature -40°C ~ 85°C (TA)
• Mounting-Type Surface Mount
• Output-Type Active High Push-Pull
• Supplier-Device-Package 8-SOIC
• Output Push-Pull, Totem Pole
• Reset Active High
• Number-of-Voltages-Monitored 1
• Reset-Timeout 160 ms Minimum
• Voltage-Threshold 2.63V
• Pd-Power-Dissipation 320 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 40 uA
• Battery-Backup-Switching No Backup
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 1 V
• Watchdog-Timers Watchdog
• Threshold-Voltage 3 V
• Number-of-Inputs-Monitored 1 Input
• Manual-Reset Manual Reset
• Chip-Enable-Signals No Chip Enable
• Power-Fail-Detection Yes
