STM8S103K3U6

STM8S103K3U6 Overview

Product belongs to the STM8S series. Tray Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style VFQFPN-32 EP Operational temperature range: -40°C ~ 85°C (TA) Supplier device package: 32-UFQFPN (5x5) This product has 28 I/O ports for versatile connectivity. Operating frequency: 16MHz Program memory type: FLASH I2C, IrDA, LIN, SPI, UART/USART interface Supply Voltage: 2.95 V ~ 5.5 V 8-Bit architecture Internal oscillator type Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C I2C SPI UART interface type Processor Core: STM8 The 8 bit. Maximum supply voltage of 5.5 V Minimum supply voltage is 2.95 V Maximum clock frequency of 16 MHz Number of ADC Channels: 4 This product has 28 I/O connections. This product has a 1 kB data RAM size, providing ample storage for complex applications. This product features 7 Timer number of timers and counters. This product features a high-precision 10 bit, ensuring accurate data conversion.

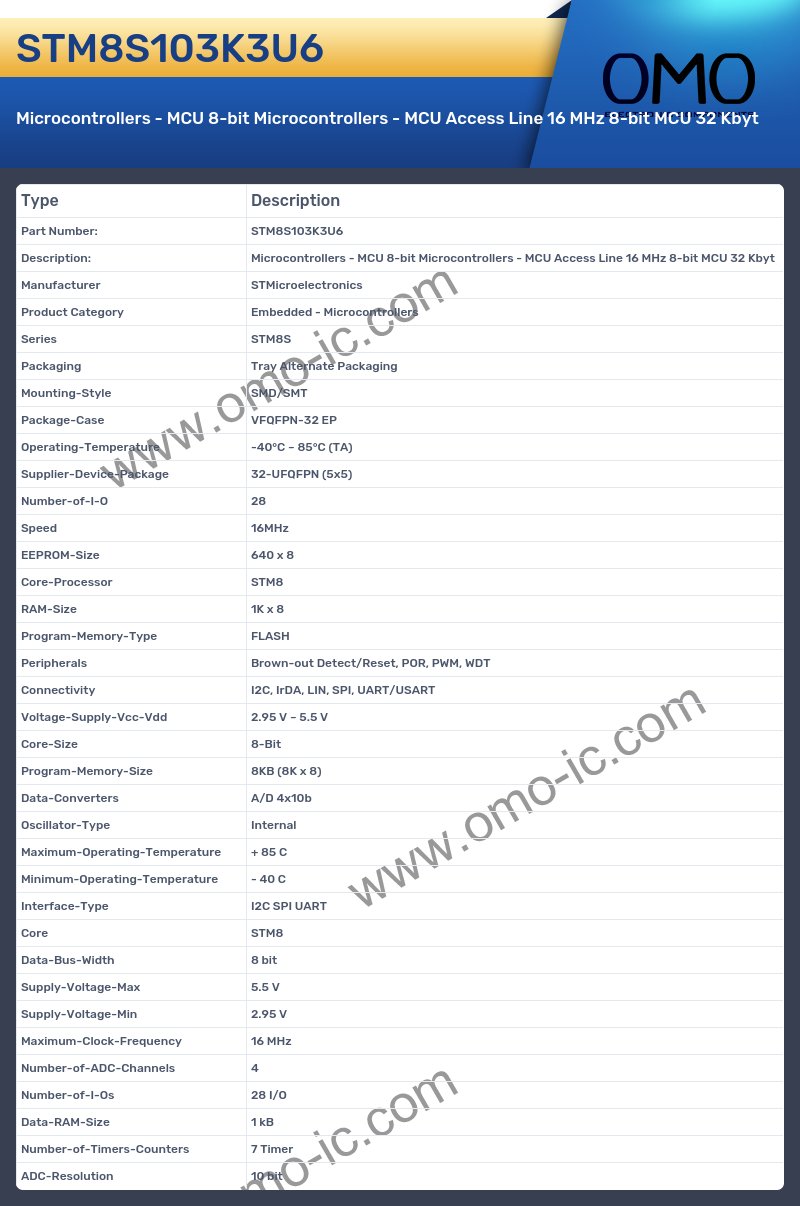

STM8S103K3U6 Image

STM8S103K3U6 Specifications

• Manufacturer STMicroelectronics
• Product Category Embedded - Microcontrollers
• Series STM8S
• Packaging Tray Alternate Packaging
• Mounting-Style SMD/SMT
• Package-Case VFQFPN-32 EP
• Operating-Temperature -40°C ~ 85°C (TA)
• Supplier-Device-Package 32-UFQFPN (5x5)
• Number-of-I-O 28
• Speed 16MHz
• EEPROM-Size 640 x 8
• Core-Processor STM8
• RAM-Size 1K x 8
• Program-Memory-Type FLASH
• Peripherals Brown-out Detect/Reset, POR, PWM, WDT
• Connectivity I2C, IrDA, LIN, SPI, UART/USART
• Voltage-Supply-Vcc-Vdd 2.95 V ~ 5.5 V
• Core-Size 8-Bit
• Program-Memory-Size 8KB (8K x 8)
• Data-Converters A/D 4x10b
• Oscillator-Type Internal
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Interface-Type I2C SPI UART
• Core STM8
• Data-Bus-Width 8 bit
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 2.95 V
• Maximum-Clock-Frequency 16 MHz
• Number-of-ADC-Channels 4
• Number-of-I-Os 28 I/O
• Data-RAM-Size 1 kB
• Number-of-Timers-Counters 7 Timer
• ADC-Resolution 10 bit
