| Mfr. #: | STN2NF10 |
|---|---|
| 製造商: | STMicroelectronics |
| 描述: | MOSFET N-CH 100V 2.4A SOT-223 |
| 生命週期: | 製造商新產品 |
| 數據表: | STN2NF10 數據表 |
Product belongs to the STripFET II series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.004395 oz SMD/SMT Mounting-Style TO-261-4, TO-261AA Si is the technology used. Operational temperature range: -55°C ~ 150°C (TJ) Surface Mount mounting type Number of channels: 1 Channel Supplier device package: SOT-223 Configuration Single Dual Drain This product uses an MOSFET N-Channel, Metal Oxide FET-Type transistor. Transistor type: 1 N-Channel 100V This product has an 280pF @ 25V value of 300pF @ 25V. This product's Standard. 2.4A (Tc) continuous drain-ID current at 25°C; This product has an 260 mOhm @ 1.2A, 10V of 12 Ohm @ 150mA, 0V. Power-off control: 3.3 W Maximum operating temperature of + 150 C Minimum operating temperature: - 55 C This product has a 3 ns of 16 ns. This product has a 10 ns of 16 ns. This product's 20 V. The ID of continuous drain current is 2 A. This product has a Vds-Drain-Source-Breakdown-Voltageof 100 V. The 260 mOhms for this product is 12 Ohms. The transistor polarity is N-Channel. 'Typical-Turn-Off-Delay-Time' of 20 ns This product has a 6 ns. This product features a 2.5 S of 500 S for high performance. This product operates in Enhancement channel mode for optimal performance.
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

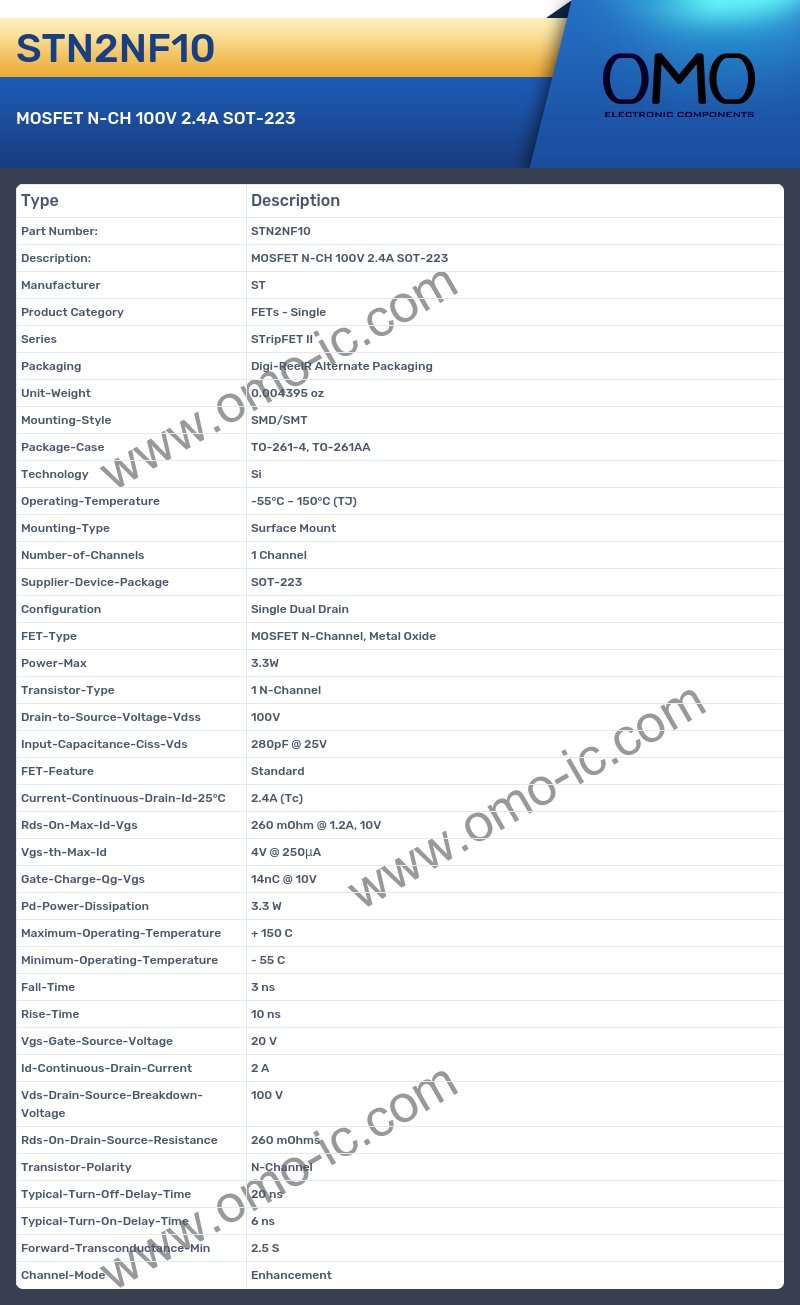

STN2NF10 Specifications
A: Is the cutoff frequency of the product Series?
Q: Yes, the product's Series is indeed STripFET II
A: What is the Packaging of the product?
Q: The Packaging of the product is Digi-ReelR Alternate Packaging.
A: What is the Unit-Weight of the product?
Q: The Unit-Weight of the product is 0.004395 oz.
A: What is the Mounting-Style of the product?
Q: The Mounting-Style of the product is SMD/SMT.
A: Is the cutoff frequency of the product Package-Case?
Q: Yes, the product's Package-Case is indeed TO-261-4, TO-261AA
A: Is the cutoff frequency of the product Technology?
Q: Yes, the product's Technology is indeed Si
A: At what frequency does the Operating-Temperature?
Q: The product Operating-Temperature is -55°C ~ 150°C (TJ).
A: What is the Mounting-Type of the product?
Q: The Mounting-Type of the product is Surface Mount.
A: Is the cutoff frequency of the product Number-of-Channels?
Q: Yes, the product's Number-of-Channels is indeed 1 Channel
A: What is the Supplier-Device-Package of the product?
Q: The Supplier-Device-Package of the product is SOT-223.
A: Is the cutoff frequency of the product Configuration?
Q: Yes, the product's Configuration is indeed Single Dual Drain
A: Is the cutoff frequency of the product FET-Type?
Q: Yes, the product's FET-Type is indeed MOSFET N-Channel, Metal Oxide
A: At what frequency does the Transistor-Type?
Q: The product Transistor-Type is 1 N-Channel.
A: At what frequency does the Drain-to-Source-Voltage-Vdss?
Q: The product Drain-to-Source-Voltage-Vdss is 100V.
A: What is the Input-Capacitance-Ciss-Vds of the product?
Q: The Input-Capacitance-Ciss-Vds of the product is 280pF @ 25V.
A: Is the cutoff frequency of the product FET-Feature?
Q: Yes, the product's FET-Feature is indeed Standard
A: Is the cutoff frequency of the product Current-Continuous-Drain-Id-25°C?
Q: Yes, the product's Current-Continuous-Drain-Id-25°C is indeed 2.4A (Tc)
A: Is the cutoff frequency of the product Rds-On-Max-Id-Vgs?
Q: Yes, the product's Rds-On-Max-Id-Vgs is indeed 260 mOhm @ 1.2A, 10V
A: Is the cutoff frequency of the product Pd-Power-Dissipation?
Q: Yes, the product's Pd-Power-Dissipation is indeed 3.3 W
A: At what frequency does the Maximum-Operating-Temperature?
Q: The product Maximum-Operating-Temperature is + 150 C.
A: At what frequency does the Minimum-Operating-Temperature?
Q: The product Minimum-Operating-Temperature is - 55 C.
A: What is the Fall-Time of the product?
Q: The Fall-Time of the product is 3 ns.
A: Is the cutoff frequency of the product Rise-Time?
Q: Yes, the product's Rise-Time is indeed 10 ns
A: Is the cutoff frequency of the product Vgs-Gate-Source-Voltage?
Q: Yes, the product's Vgs-Gate-Source-Voltage is indeed 20 V
A: At what frequency does the Id-Continuous-Drain-Current?
Q: The product Id-Continuous-Drain-Current is 2 A.
A: Is the cutoff frequency of the product Vds-Drain-Source-Breakdown-Voltage?
Q: Yes, the product's Vds-Drain-Source-Breakdown-Voltage is indeed 100 V
A: What is the Rds-On-Drain-Source-Resistance of the product?
Q: The Rds-On-Drain-Source-Resistance of the product is 260 mOhms.
A: What is the Transistor-Polarity of the product?
Q: The Transistor-Polarity of the product is N-Channel.
A: What is the Typical-Turn-Off-Delay-Time of the product?
Q: The Typical-Turn-Off-Delay-Time of the product is 20 ns.
A: At what frequency does the Typical-Turn-On-Delay-Time?
Q: The product Typical-Turn-On-Delay-Time is 6 ns.
A: At what frequency does the Forward-Transconductance-Min?
Q: The product Forward-Transconductance-Min is 2.5 S.
A: Is the cutoff frequency of the product Channel-Mode?
Q: Yes, the product's Channel-Mode is indeed Enhancement
