STN715

STN715 Overview

Product belongs to the STN715 series. Reel is the packaging method for this product Weight of 0.006632 oz SMD/SMT Mounting-Style SOT-223 Configuration Single Power-off control: 1.6 W Maximum operating temperature of + 150 C Minimum operating temperature: - 65 C Rated VCEO up to 80 V The transistor polarity is NPN. Saturation voltage between collector and emitter is 0.5 V The 140 V voltage rating is 40 V. 5 V rating of 5 V Max DC collector current: 1.5 A Gain-Bandwidth-Product: 50 MHz This product is capable of handling a 1.5 A continuous collector current. Minimum hfe for DC collector-base gain is 140.

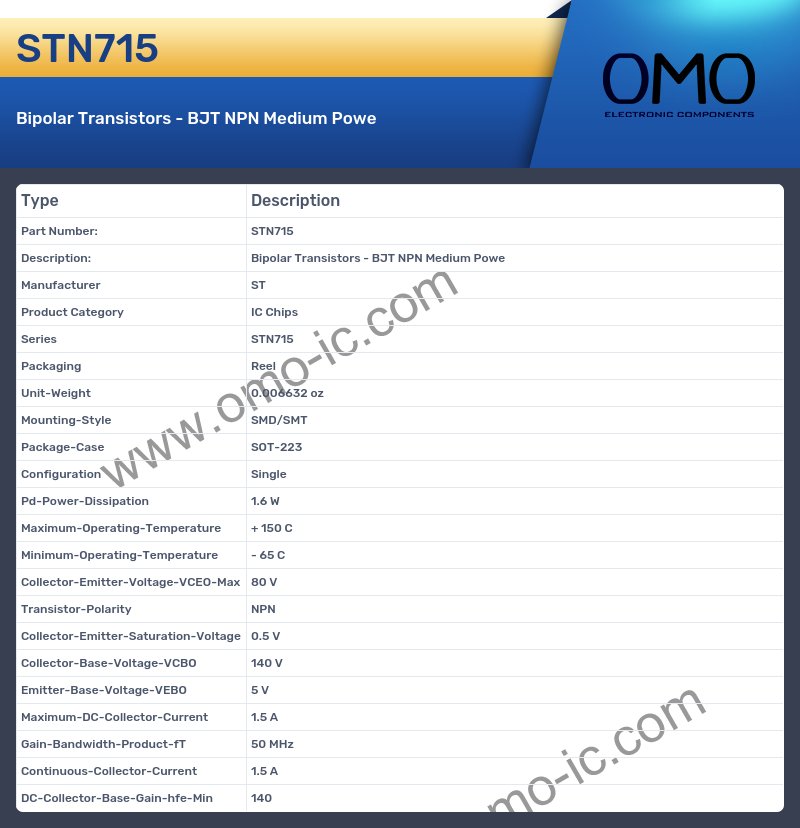

STN715 Image

STN715 Specifications

• Manufacturer ST
• Product Category IC Chips
• Series STN715
• Packaging Reel
• Unit-Weight 0.006632 oz
• Mounting-Style SMD/SMT
• Package-Case SOT-223
• Configuration Single
• Pd-Power-Dissipation 1.6 W
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 65 C
• Collector-Emitter-Voltage-VCEO-Max 80 V
• Transistor-Polarity NPN
• Collector-Emitter-Saturation-Voltage 0.5 V
• Collector-Base-Voltage-VCBO 140 V
• Emitter-Base-Voltage-VEBO 5 V
• Maximum-DC-Collector-Current 1.5 A
• Gain-Bandwidth-Product-fT 50 MHz
• Continuous-Collector-Current 1.5 A
• DC-Collector-Base-Gain-hfe-Min 140
