| Mfr. #: | STP120N4F6 |
|---|---|
| 製造商: | STMicroelectronics |
| 描述: | MOSFET N-CH 40V 80A TO-220AB |
| 生命週期: | 製造商新產品 |
| 數據表: | STP120N4F6 數據表 |

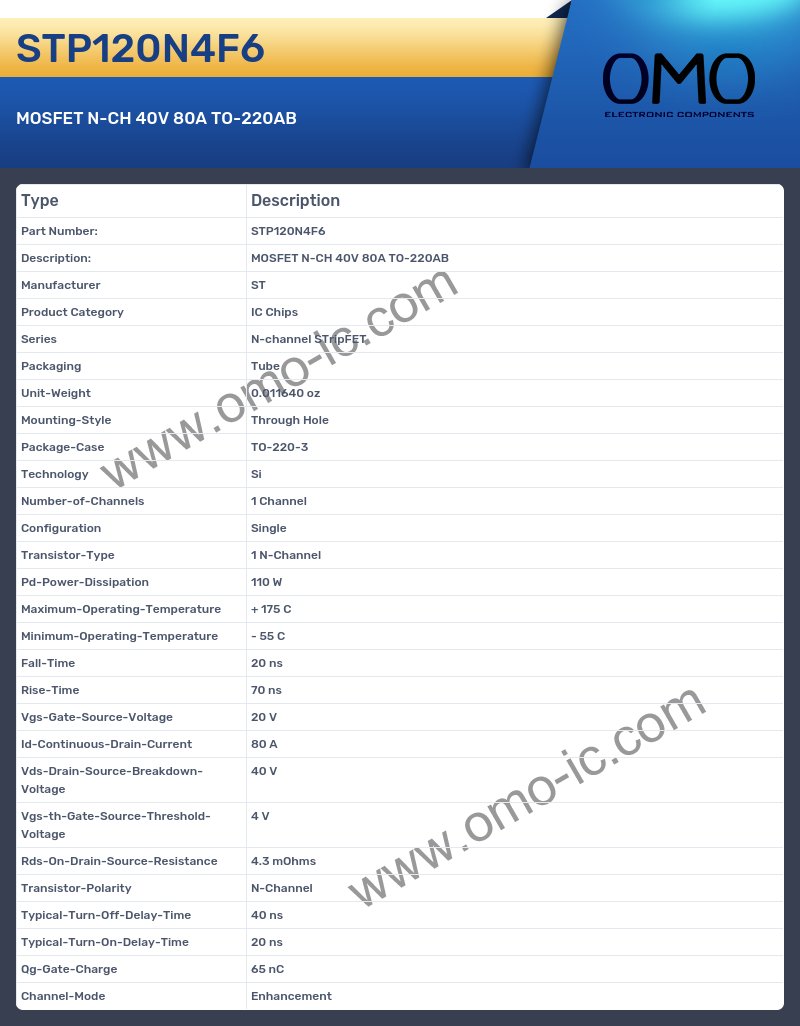

Product belongs to the N-channel STripFET series. Tube is the packaging method for this product Weight of 0.011640 oz Through Hole Mounting-Style TO-220-3 Si is the technology used. Number of channels: 1 Channel Configuration Single Transistor type: 1 N-Channel Power-off control: 110 W Maximum operating temperature of + 175 C Minimum operating temperature: - 55 C This product has a 20 ns of 16 ns. This product has a 70 ns of 16 ns. This product's 20 V. The ID of continuous drain current is 80 A. This product has a Vds-Drain-Source-Breakdown-Voltageof 40 V. This product has a 4 V Vgs-th gate-source threshold voltage for efficient power management. The 4.3 mOhms for this product is 12 Ohms. The transistor polarity is N-Channel. 'Typical-Turn-Off-Delay-Time' of 40 ns This product has a 20 ns. Qg-Gate-Charge is 65 nC. This product operates in Enhancement channel mode for optimal performance.
