STP77N6F6

STP77N6F6 Overview

Product belongs to the N-channel STripFET series. Tube is the packaging method for this product Weight of 0.011640 oz Through Hole Mounting-Style TO-220-3 Si is the technology used. Power-off control: 80 W Maximum operating temperature of + 175 C Minimum operating temperature: - 55 C The ID of continuous drain current is 77 A. This product has a Vds-Drain-Source-Breakdown-Voltageof 60 V. The 7.9 mOhms for this product is 12 Ohms. The transistor polarity is N-Channel. Qg-Gate-Charge is 76 nC.

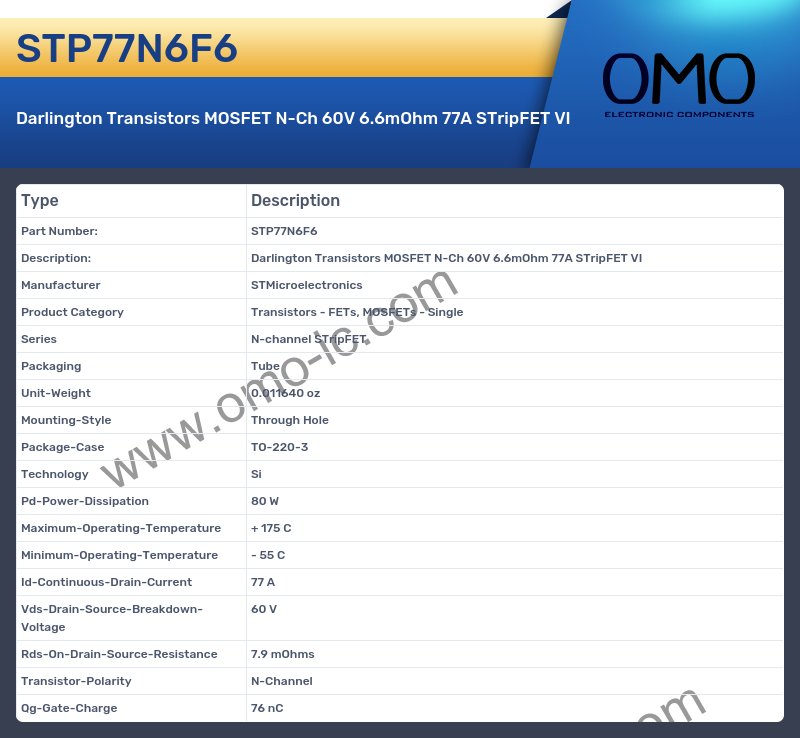

STP77N6F6 Image

STP77N6F6 Specifications

• Manufacturer STMicroelectronics
• Product Category Transistors - FETs, MOSFETs - Single
• Series N-channel STripFET
• Packaging Tube
• Unit-Weight 0.011640 oz
• Mounting-Style Through Hole
• Package-Case TO-220-3
• Technology Si
• Pd-Power-Dissipation 80 W
• Maximum-Operating-Temperature + 175 C
• Minimum-Operating-Temperature - 55 C
• Id-Continuous-Drain-Current 77 A
• Vds-Drain-Source-Breakdown-Voltage 60 V
• Rds-On-Drain-Source-Resistance 7.9 mOhms
• Transistor-Polarity N-Channel
• Qg-Gate-Charge 76 nC
