| Mfr. #: | STP80NF03L-04 |
|---|---|
| 製造商: | STMicroelectronics |
| 描述: | MOSFET N-CH 30V 80A TO-220 |
| 生命週期: | 製造商新產品 |
| 數據表: | STP80NF03L-04 數據表 |
Product belongs to the STP80NF03L series. Tube is the packaging method for this product Weight of 0.011640 oz Through Hole Mounting-Style TO-220-3 Si is the technology used. Number of channels: 1 Channel Configuration Single Transistor type: 1 N-Channel Power-off control: 300 W Maximum operating temperature of + 175 C Minimum operating temperature: - 65 C This product has a 95 ns of 16 ns. This product has a 270 ns of 16 ns. This product's 20 V. The ID of continuous drain current is 80 A. This product has a Vds-Drain-Source-Breakdown-Voltageof 30 V. The 4 mOhms for this product is 12 Ohms. The transistor polarity is N-Channel. 'Typical-Turn-Off-Delay-Time' of 110 ns This product has a 30 ns. This product features a 50 S of 500 S for high performance. This product operates in Enhancement channel mode for optimal performance.
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

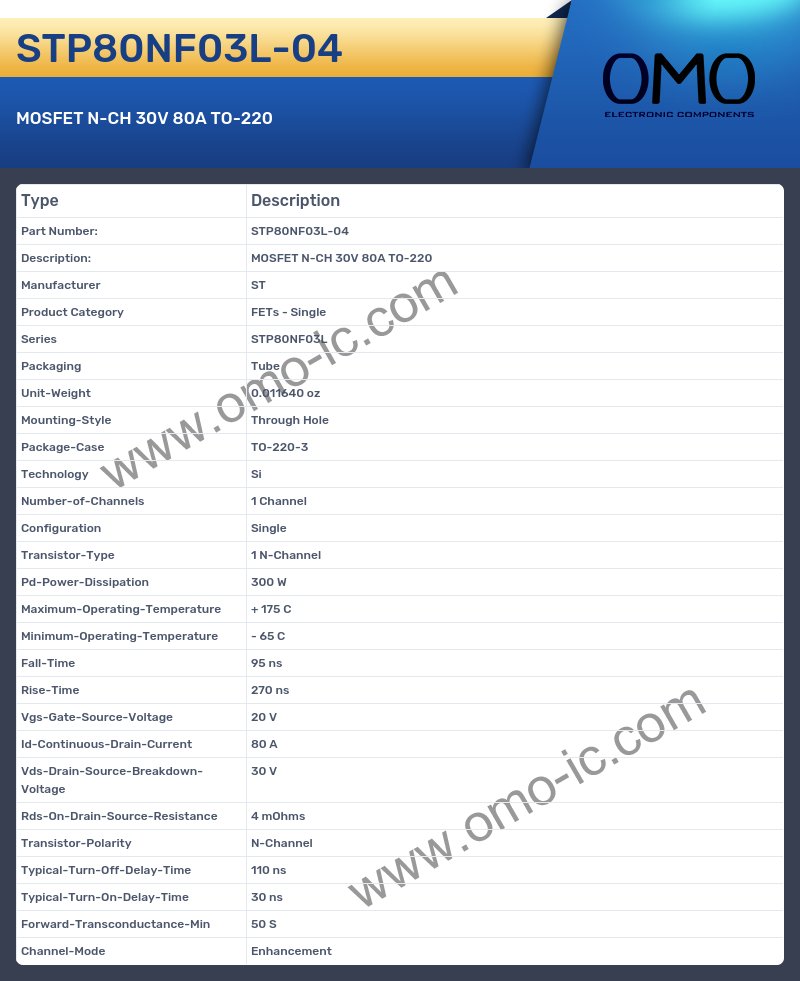

STP80NF03L-04 Specifications
