STPS30120DJF-TR

STPS30120DJF-TR Overview

Product belongs to the STPS30120DJF series. Digi-ReelR Alternate Packaging is the packaging method for this product 8-PowerVDFN Si is the technology used. Surface Mount mounting type Supplier device package: PowerFlat (5x6) Operating frequency: Fast Recovery = 200mA (Io) Schottky diode type The 35μA @ 120V Current-Reverse-Leakage-Vr 1. Vf Max 920mV @ 30A is the Voltage-Forward; Maximum DC reverse voltage 120V The 30A Current-Average-Rectified-Io; The capacitance value of this product is - for maximum efficiency. Operating-Temperature-Junction: 150°C (Max) Power-off control: - Maximum operating temperature of + 150 C Minimum operating temperature: - 65 C Vf-Forward-Voltage: 920 mV Ir-Reverse-Current is 16 mA. If-Forward-Current is 30 A. VRRM (120 V) Reverse Voltage 200 A IFSM Forward Surge Current The - TRR-Reverse-Recovery-time

STPS30120DJF-TR Image

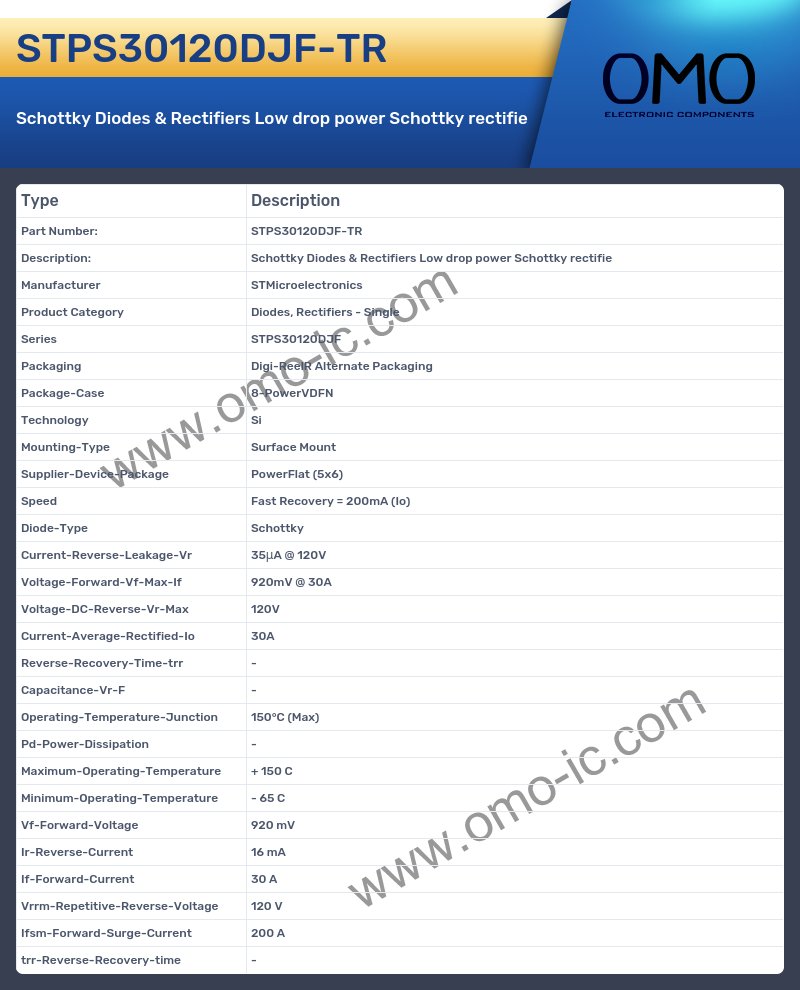

STPS30120DJF-TR Specifications

• Manufacturer STMicroelectronics
• Product Category Diodes, Rectifiers - Single
• Series STPS30120DJF
• Packaging Digi-ReelR Alternate Packaging
• Package-Case 8-PowerVDFN
• Technology Si
• Mounting-Type Surface Mount
• Supplier-Device-Package PowerFlat (5x6)
• Speed Fast Recovery = 200mA (Io)
• Diode-Type Schottky
• Current-Reverse-Leakage-Vr 35μA @ 120V
• Voltage-Forward-Vf-Max-If 920mV @ 30A
• Voltage-DC-Reverse-Vr-Max 120V
• Current-Average-Rectified-Io 30A
• Reverse-Recovery-Time-trr -
• Capacitance-Vr-F -
• Operating-Temperature-Junction 150°C (Max)
• Pd-Power-Dissipation -
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 65 C
• Vf-Forward-Voltage 920 mV
• Ir-Reverse-Current 16 mA
• If-Forward-Current 30 A
• Vrrm-Repetitive-Reverse-Voltage 120 V
• Ifsm-Forward-Surge-Current 200 A
• trr-Reverse-Recovery-time -
