STTH8L06G

STTH8L06G Overview

Product belongs to the STTH8L06 series. This product is categorized as Ultra Fast Recovery Rectifiers Tube Alternate Packaging is the packaging method for this product Weight of 0.070548 oz SMD/SMT Mounting-Style TO-263-3, D2Pak (2 Leads + Tab), TO-263AB Surface Mount mounting type Supplier device package: D2PAK Configuration Single Operating frequency: Fast Recovery = 200mA (Io) Standard diode type The 8μA @ 600V Current-Reverse-Leakage-Vr 1. Vf Max 1.3V @ 8A is the Voltage-Forward; Maximum DC reverse voltage 600V The 8A Current-Average-Rectified-Io; The capacitance value of this product is - for maximum efficiency. Operating-Temperature-Junction: 175°C (Max) Maximum operating temperature of + 175 C Minimum operating temperature: - 40 C Vf-Forward-Voltage: 1.3 V VR Reverse Voltage of 600 V Ir-Reverse-Current is 8 uA. If-Forward-Current is 8 A. Maximum Surge Current: 120 A

STTH8L06G Image

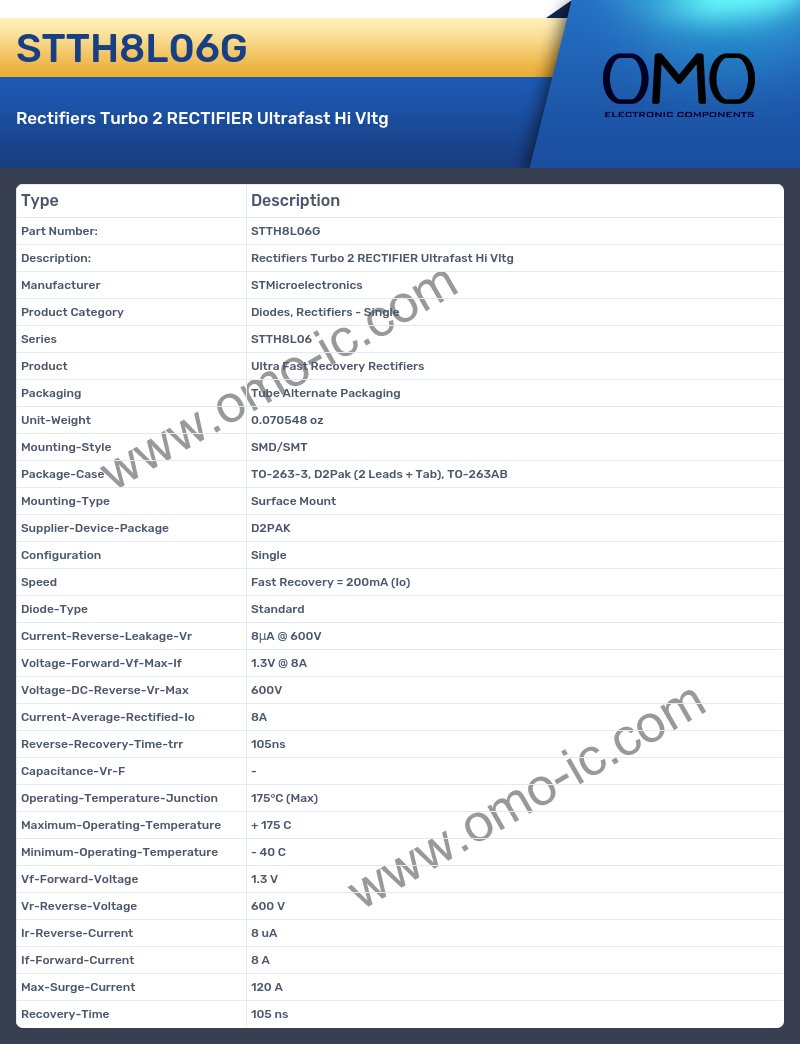

STTH8L06G Specifications

• Manufacturer STMicroelectronics
• Product Category Diodes, Rectifiers - Single
• Series STTH8L06
• Product Ultra Fast Recovery Rectifiers
• Packaging Tube Alternate Packaging
• Unit-Weight 0.070548 oz
• Mounting-Style SMD/SMT
• Package-Case TO-263-3, D2Pak (2 Leads + Tab), TO-263AB
• Mounting-Type Surface Mount
• Supplier-Device-Package D2PAK
• Configuration Single
• Speed Fast Recovery = 200mA (Io)
• Diode-Type Standard
• Current-Reverse-Leakage-Vr 8μA @ 600V
• Voltage-Forward-Vf-Max-If 1.3V @ 8A
• Voltage-DC-Reverse-Vr-Max 600V
• Current-Average-Rectified-Io 8A
• Reverse-Recovery-Time-trr 105ns
• Capacitance-Vr-F -
• Operating-Temperature-Junction 175°C (Max)
• Maximum-Operating-Temperature + 175 C
• Minimum-Operating-Temperature - 40 C
• Vf-Forward-Voltage 1.3 V
• Vr-Reverse-Voltage 600 V
• Ir-Reverse-Current 8 uA
• If-Forward-Current 8 A
• Max-Surge-Current 120 A
• Recovery-Time 105 ns
