STW48N60DM2

STW48N60DM2 Overview

Weight of 1.340411 oz Through Hole Mounting-Style TO-247-3 Si is the technology used. Number of channels: 1 Channel Configuration 1 N-Channel Power-off control: 300 W Maximum operating temperature of + 150 C Minimum operating temperature: - 55 C This product has a 9.8 ns of 16 ns. This product has a 27 ns of 16 ns. This product's +/- 25 V. The ID of continuous drain current is 40 A. This product has a Vds-Drain-Source-Breakdown-Voltageof 600 V. This product has a 3 V Vgs-th gate-source threshold voltage for efficient power management. The 79 mOhms for this product is 12 Ohms. The transistor polarity is N-Channel. 'Typical-Turn-Off-Delay-Time' of 131 ns This product has a 27 ns. Qg-Gate-Charge is 70 nC. This product operates in Enhancement channel mode for optimal performance.

STW48N60DM2 Image

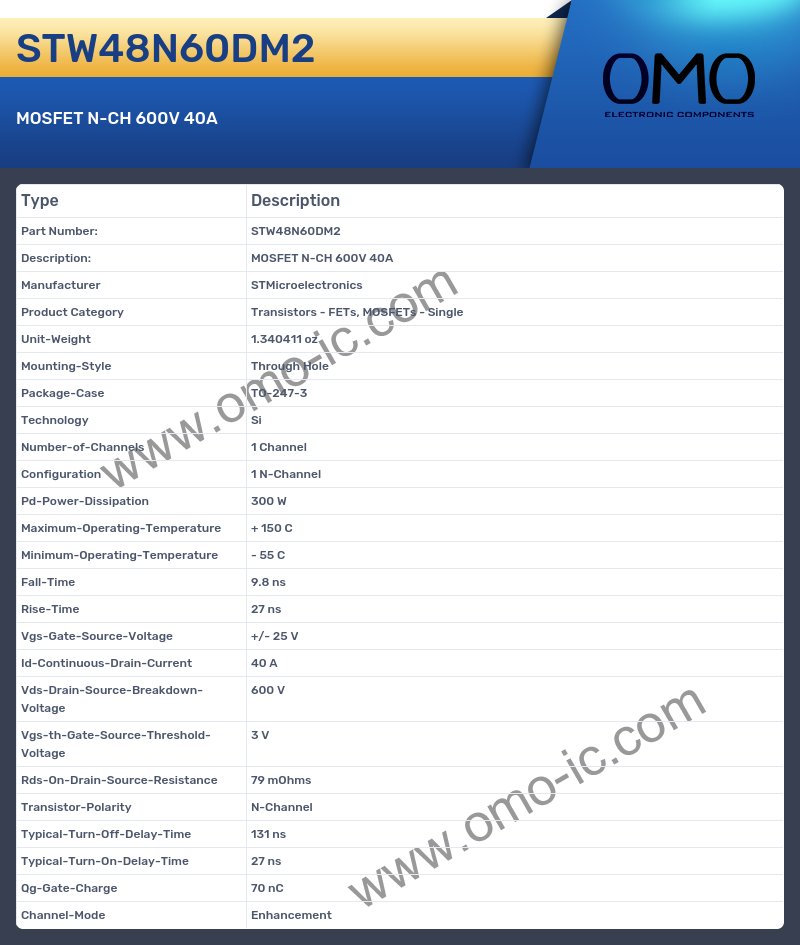

STW48N60DM2 Specifications

• Manufacturer STMicroelectronics
• Product Category Transistors - FETs, MOSFETs - Single
• Unit-Weight 1.340411 oz
• Mounting-Style Through Hole
• Package-Case TO-247-3
• Technology Si
• Number-of-Channels 1 Channel
• Configuration 1 N-Channel
• Pd-Power-Dissipation 300 W
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 55 C
• Fall-Time 9.8 ns
• Rise-Time 27 ns
• Vgs-Gate-Source-Voltage +/- 25 V
• Id-Continuous-Drain-Current 40 A
• Vds-Drain-Source-Breakdown-Voltage 600 V
• Vgs-th-Gate-Source-Threshold-Voltage 3 V
• Rds-On-Drain-Source-Resistance 79 mOhms
• Transistor-Polarity N-Channel
• Typical-Turn-Off-Delay-Time 131 ns
• Typical-Turn-On-Delay-Time 27 ns
• Qg-Gate-Charge 70 nC
• Channel-Mode Enhancement
