TB5D2HDWR

TB5D2HDWR Overview

Product belongs to the TB5D2H series. Type: Driver Tape & Reel (TR) Alternate Packaging is the packaging method for this product Weight of 0.014148 oz SMD/SMT Mounting-Style SOIC-16 Wide The TTL for this product is CMOS/TTL. Operational temperature range: -40°C ~ 85°C Surface Mount mounting type Output-Type: PECL Voltage Supply Range: 3 V ~ 5.5 V Supplier device package: 16-SOIC This product has a 4/0 number of drivers and receivers. Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C 40 mA is 92 nA. Maximum supply voltage of 5.5 V Minimum supply voltage is 3 V Number-of-Drivers: 4 Driver

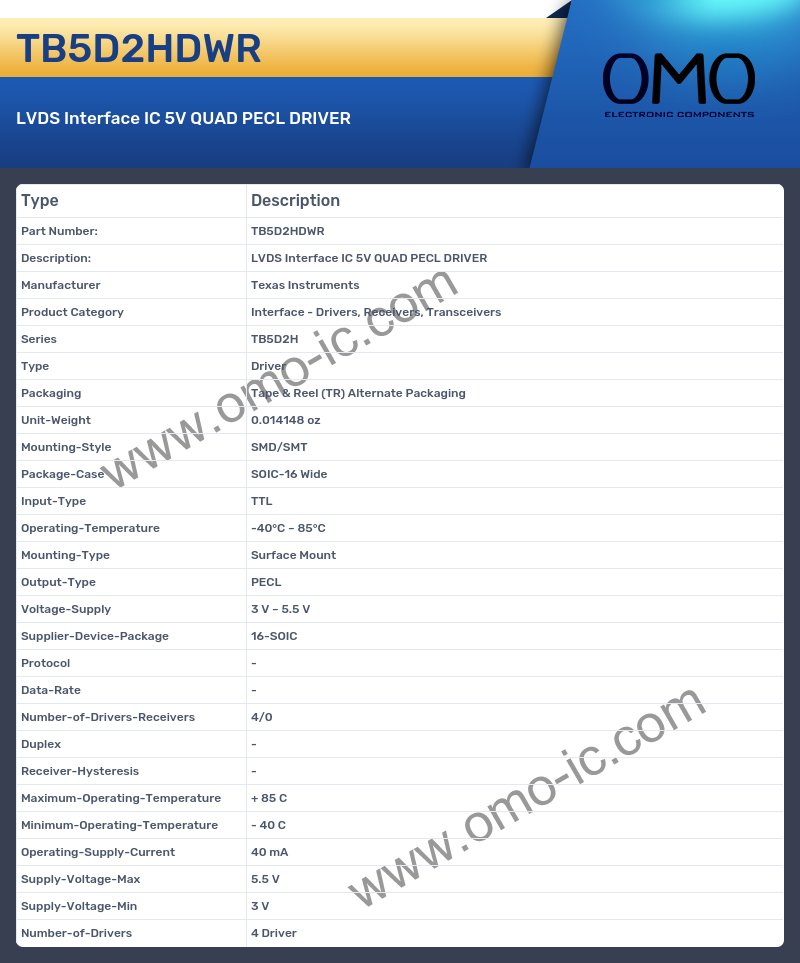

TB5D2HDWR Image

TB5D2HDWR Specifications

• Manufacturer Texas Instruments
• Product Category Interface - Drivers, Receivers, Transceivers
• Series TB5D2H
• Type Driver
• Packaging Tape & Reel (TR) Alternate Packaging
• Unit-Weight 0.014148 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-16 Wide
• Input-Type TTL
• Operating-Temperature -40°C ~ 85°C
• Mounting-Type Surface Mount
• Output-Type PECL
• Voltage-Supply 3 V ~ 5.5 V
• Supplier-Device-Package 16-SOIC
• Protocol -
• Data-Rate -
• Number-of-Drivers-Receivers 4/0
• Duplex -
• Receiver-Hysteresis -
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 40 mA
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 3 V
• Number-of-Drivers 4 Driver
