TC2185-3.0VCTTR

TC2185-3.0VCTTR Overview

Product belongs to the - series. This product is categorized as LDO Regulators Type: LDO with Shutdown Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.001058 oz SMD/SMT Mounting-Style SOT-23-5 Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Output-Type: Fixed Supplier device package: SOT-23-5 Up to 6V voltage input Number-of-Outputs: 1 Output Output voltage: 3V Positive Fixed regulator topology The product has 1 of 1. Power-off control: 0.318 W Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Output voltage: 3 V 55 uA is 92 nA. Maximum Input Voltage: 6 V Output current: 150 mA The product's 2.7 V is 5.1 V. Load regulation is 0.43 %. The voltage regulation accuracy of this product is 0.4 %. Input bias current of 55 uA The 0.09 V at 100 mA. The maximum 210 mV is 360 mV. This product's 0.05 % is 0.01 %/V. The product's 55 dB is -20 dB.

TC2185-3.0VCTTR Image

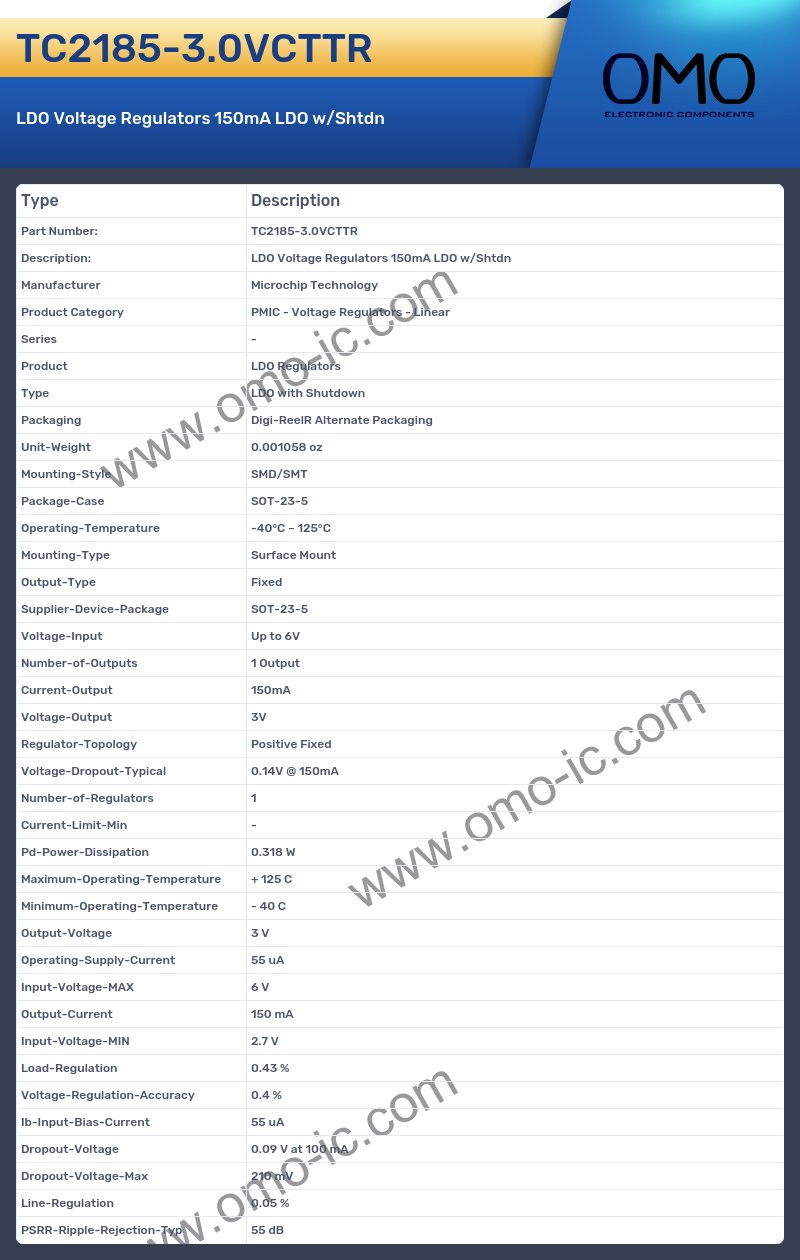

TC2185-3.0VCTTR Specifications

• Manufacturer Microchip Technology
• Product Category PMIC - Voltage Regulators - Linear
• Series -
• Product LDO Regulators
• Type LDO with Shutdown
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.001058 oz
• Mounting-Style SMD/SMT
• Package-Case SOT-23-5
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Surface Mount
• Output-Type Fixed
• Supplier-Device-Package SOT-23-5
• Voltage-Input Up to 6V
• Number-of-Outputs 1 Output
• Current-Output 150mA
• Voltage-Output 3V
• Regulator-Topology Positive Fixed
• Voltage-Dropout-Typical 0.14V @ 150mA
• Number-of-Regulators 1
• Current-Limit-Min -
• Pd-Power-Dissipation 0.318 W
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 3 V
• Operating-Supply-Current 55 uA
• Input-Voltage-MAX 6 V
• Output-Current 150 mA
• Input-Voltage-MIN 2.7 V
• Load-Regulation 0.43 %
• Voltage-Regulation-Accuracy 0.4 %
• Ib-Input-Bias-Current 55 uA
• Dropout-Voltage 0.09 V at 100 mA
• Dropout-Voltage-Max 210 mV
• Line-Regulation 0.05 %
• PSRR-Ripple-Rejection-Typ 55 dB
