TC4420CPA

TC4420CPA Overview

This product is categorized as MOSFET Gate Drivers Type: Low Side Tube is the packaging method for this product Weight of 0.032805 oz Through Hole Mounting-Style Configuration Non-Inverting Number-of-Outputs: 1 Power-off control: 730 mW Maximum operating temperature of + 70 C Minimum operating temperature: 0 C 3 mA is 92 nA. This product has a 35 ns of 16 ns. This product has a 35 ns of 16 ns. Maximum supply voltage of 18 V Minimum supply voltage is 4.5 V PDIP-8 Number-of-Drivers: 1 Driver

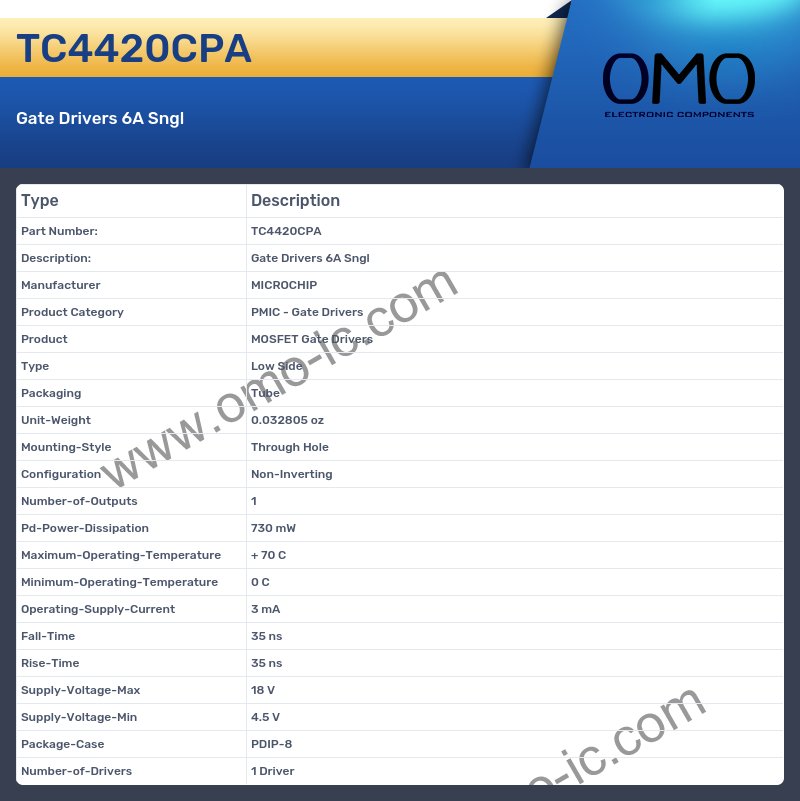

TC4420CPA Image

TC4420CPA Specifications

• Manufacturer MICROCHIP
• Product Category PMIC - Gate Drivers
• Product MOSFET Gate Drivers
• Type Low Side
• Packaging Tube
• Unit-Weight 0.032805 oz
• Mounting-Style Through Hole
• Configuration Non-Inverting
• Number-of-Outputs 1
• Pd-Power-Dissipation 730 mW
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Operating-Supply-Current 3 mA
• Fall-Time 35 ns
• Rise-Time 35 ns
• Supply-Voltage-Max 18 V
• Supply-Voltage-Min 4.5 V
• Package-Case PDIP-8
• Number-of-Drivers 1 Driver
