TC682COA713 Overview

Product belongs to the - series. Type: Charge Pump Tape & Reel (TR) Alternate Packaging is the packaging method for this product Weight of 0.006596 oz SMD/SMT Mounting-Style SOIC-Narrow-8 Operational temperature range: 0°C ~ 70°C (TA) Surface Mount mounting type Output-Type: Fixed Product function is Ratiometric. Supplier device package: 8-SOIC Number-of-Outputs: 1 Topology: Charge Pump feedback This product features 'Frequency-Switching' at 12kHz for optimal performance. The Negative. Minimum fixed output voltage is -2Vin . The value of No is included as a product attribute. The minimum input voltage is 2.4V. The 5.5V. Maximum operating temperature of + 70 C Minimum operating temperature: 0 C Output voltage: - 10 V Output current: 10 mA

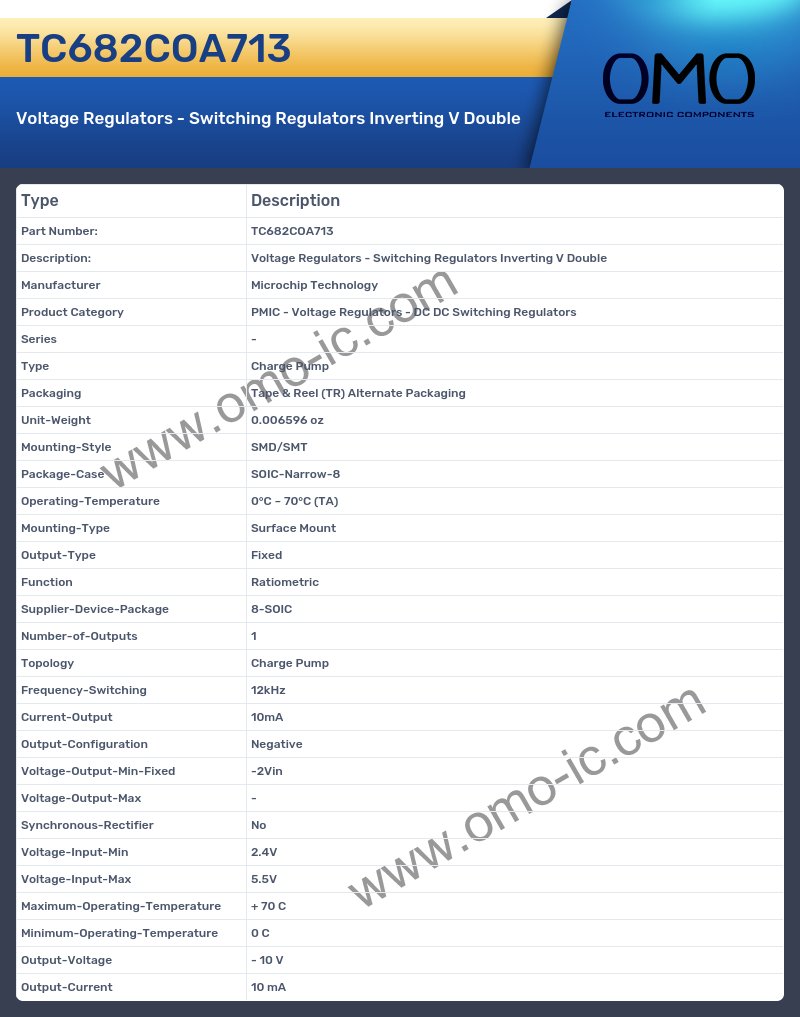

TC682COA713 Image

TC682COA713 Specifications

• Manufacturer Microchip Technology
• Product Category PMIC - Voltage Regulators - DC DC Switching Regulators
• Series -
• Type Charge Pump
• Packaging Tape & Reel (TR) Alternate Packaging
• Unit-Weight 0.006596 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-Narrow-8
• Operating-Temperature 0°C ~ 70°C (TA)
• Mounting-Type Surface Mount
• Output-Type Fixed
• Function Ratiometric
• Supplier-Device-Package 8-SOIC
• Number-of-Outputs 1
• Topology Charge Pump
• Frequency-Switching 12kHz
• Current-Output 10mA
• Output-Configuration Negative
• Voltage-Output-Min-Fixed -2Vin
• Voltage-Output-Max -
• Synchronous-Rectifier No
• Voltage-Input-Min 2.4V
• Voltage-Input-Max 5.5V
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Output-Voltage - 10 V
• Output-Current 10 mA
