TC7109CPL

TC7109CPL Overview

Product belongs to the - series. This product is categorized as Analog to Digital Converters Tube is the packaging method for this product Weight of 0.210004 oz Through Hole Mounting-Style PDIP-40 The Differential for this product is CMOS/TTL. Operational temperature range: 0°C ~ 70°C Number of channels: 1 Channel Supplier device package: 40-PDIP This product's 30. Data-Interface: Parallel 12 bits The Voltage-Supply-Analog is 5V. The Voltage Supply Digital for this product is 5V. Configuration ADC The architecture of this product is Dual Slope . External is the reference type. 1 units Power-off control: 1230 mW Maximum operating temperature of + 70 C Minimum operating temperature: 0 C Parallel interface type Number-of-Converters: 1 Converter 10 S/s Sampling Rate Integral Nonlinearity: +/- 1 Counts

TC7109CPL Image

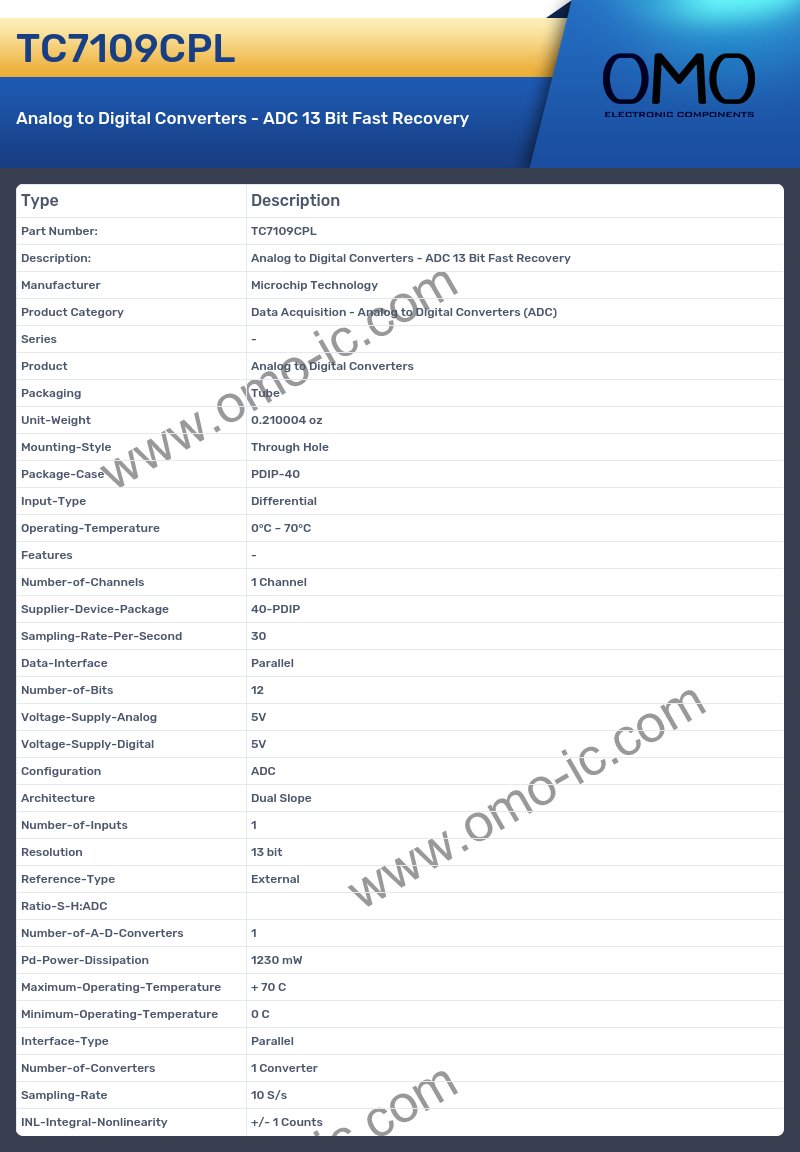

TC7109CPL Specifications

• Manufacturer Microchip Technology
• Product Category Data Acquisition - Analog to Digital Converters (ADC)
• Series -
• Product Analog to Digital Converters
• Packaging Tube
• Unit-Weight 0.210004 oz
• Mounting-Style Through Hole
• Package-Case PDIP-40
• Input-Type Differential
• Operating-Temperature 0°C ~ 70°C
• Features -
• Number-of-Channels 1 Channel
• Supplier-Device-Package 40-PDIP
• Sampling-Rate-Per-Second 30
• Data-Interface Parallel
• Number-of-Bits 12
• Voltage-Supply-Analog 5V
• Voltage-Supply-Digital 5V
• Configuration ADC
• Architecture Dual Slope
• Number-of-Inputs 1
• Resolution 13 bit
• Reference-Type External
• Ratio-S-H:ADC
• Number-of-A-D-Converters 1
• Pd-Power-Dissipation 1230 mW
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Interface-Type Parallel
• Number-of-Converters 1 Converter
• Sampling-Rate 10 S/s
• INL-Integral-Nonlinearity +/- 1 Counts
