| Mfr. #: | TIP107 |
|---|---|
| 製造商: | STMicroelectronics |
| 描述: | TRANS PNP DARL 100V 8A TO220AB |
| 生命週期: | 製造商新產品 |
| 數據表: | TIP107 數據表 |
Product belongs to the Darlingtons series. Tube is the packaging method for this product The TIP107_NL is listed as a Part-Aliase. Weight of 0.042823 oz Through Hole Mounting-Style TO-220-3 Through Hole mounting type Supplier device package: TO-220AB Configuration Single Transistor type: PNP - Darlington Maximum current collector Ic is 8A . Maximum collector-emitter breakdown voltage of 100V DC current gain minimum (hFE) of Ic/Vce at 1000 @ 3A, 4V. Product Attribute: Vce-Saturation-Max-Ib-Ic: 2.5V @ 80mA, 8A Maximum operating temperature of + 150 C Minimum operating temperature: - 65 C Rated VCEO up to 100 V The transistor polarity is PNP. The 100 V voltage rating is 40 V. 5 V rating of 5 V Max DC collector current: 8 A Minimum hfe for DC collector-base gain is 1000 at 3 A at 4 V 200 at 8 A at 4 V. 50 uA Maximum Collector Cut-off Current;
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

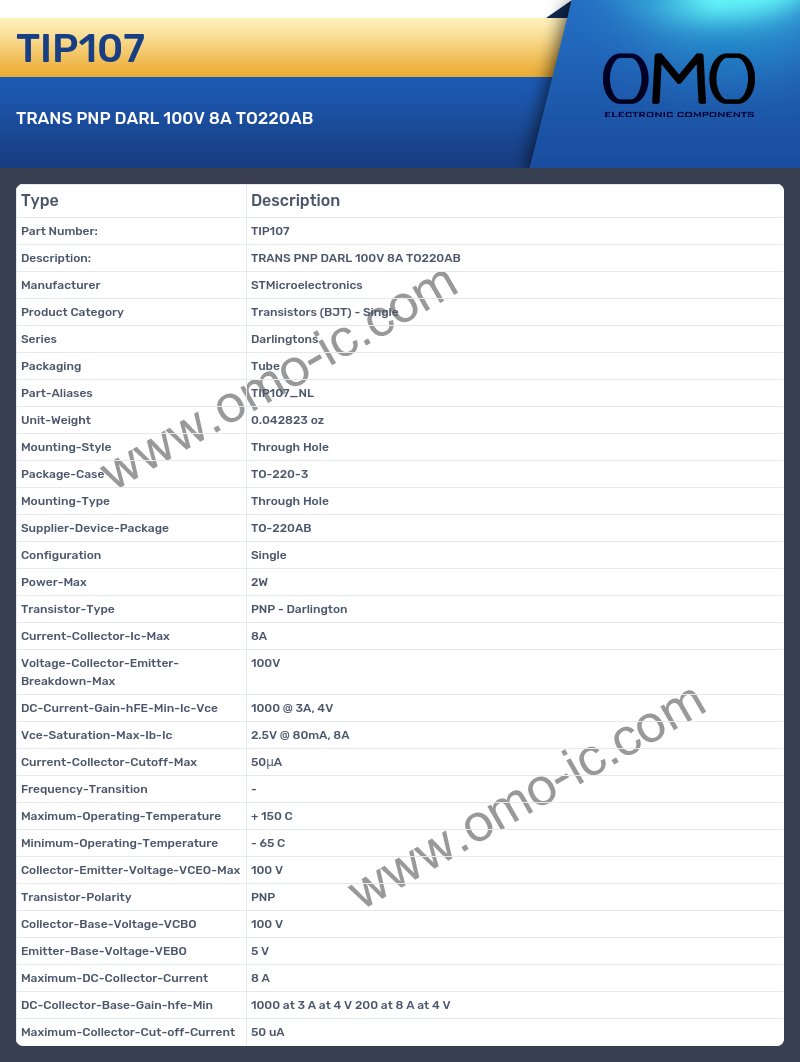

TIP107 Specifications
A: What is the Series of the product?
Q: The Series of the product is Darlingtons.
A: At what frequency does the Packaging?
Q: The product Packaging is Tube.
A: At what frequency does the Part-Aliases?
Q: The product Part-Aliases is TIP107_NL.
A: At what frequency does the Unit-Weight?
Q: The product Unit-Weight is 0.042823 oz.
A: At what frequency does the Mounting-Style?
Q: The product Mounting-Style is Through Hole.
A: Is the cutoff frequency of the product Package-Case?
Q: Yes, the product's Package-Case is indeed TO-220-3
A: Is the cutoff frequency of the product Mounting-Type?
Q: Yes, the product's Mounting-Type is indeed Through Hole
A: At what frequency does the Supplier-Device-Package?
Q: The product Supplier-Device-Package is TO-220AB.
A: What is the Configuration of the product?
Q: The Configuration of the product is Single.
A: Is the cutoff frequency of the product Transistor-Type?
Q: Yes, the product's Transistor-Type is indeed PNP - Darlington
A: At what frequency does the Current-Collector-Ic-Max?
Q: The product Current-Collector-Ic-Max is 8A.
A: Is the cutoff frequency of the product Voltage-Collector-Emitter-Breakdown-Max?
Q: Yes, the product's Voltage-Collector-Emitter-Breakdown-Max is indeed 100V
A: Is the cutoff frequency of the product DC-Current-Gain-hFE-Min-Ic-Vce?
Q: Yes, the product's DC-Current-Gain-hFE-Min-Ic-Vce is indeed 1000 @ 3A, 4V
A: What is the Vce-Saturation-Max-Ib-Ic of the product?
Q: The Vce-Saturation-Max-Ib-Ic of the product is 2.5V @ 80mA, 8A.
A: What is the Maximum-Operating-Temperature of the product?
Q: The Maximum-Operating-Temperature of the product is + 150 C.
A: What is the Minimum-Operating-Temperature of the product?
Q: The Minimum-Operating-Temperature of the product is - 65 C.
A: What is the Collector-Emitter-Voltage-VCEO-Max of the product?
Q: The Collector-Emitter-Voltage-VCEO-Max of the product is 100 V.
A: At what frequency does the Transistor-Polarity?
Q: The product Transistor-Polarity is PNP.
A: At what frequency does the Collector-Base-Voltage-VCBO?
Q: The product Collector-Base-Voltage-VCBO is 100 V.
A: Is the cutoff frequency of the product Emitter-Base-Voltage-VEBO?
Q: Yes, the product's Emitter-Base-Voltage-VEBO is indeed 5 V
A: Is the cutoff frequency of the product Maximum-DC-Collector-Current?
Q: Yes, the product's Maximum-DC-Collector-Current is indeed 8 A
A: Is the cutoff frequency of the product DC-Collector-Base-Gain-hfe-Min?
Q: Yes, the product's DC-Collector-Base-Gain-hfe-Min is indeed 1000 at 3 A at 4 V 200 at 8 A at 4 V
A: At what frequency does the Maximum-Collector-Cut-off-Current?
Q: The product Maximum-Collector-Cut-off-Current is 50 uA.
