TIP147

TIP147 Overview

Product belongs to the Darlingtons series. Tube is the packaging method for this product Weight of 0.229281 oz Through Hole Mounting-Style TO-247 Configuration Single Maximum operating temperature of + 150 C Rated VCEO up to 100 V The transistor polarity is PNP. The 100 V voltage rating is 40 V. 5 V rating of 5 V Max DC collector current: 10 A Minimum hfe for DC collector-base gain is 500. 1000 uA Maximum Collector Cut-off Current;

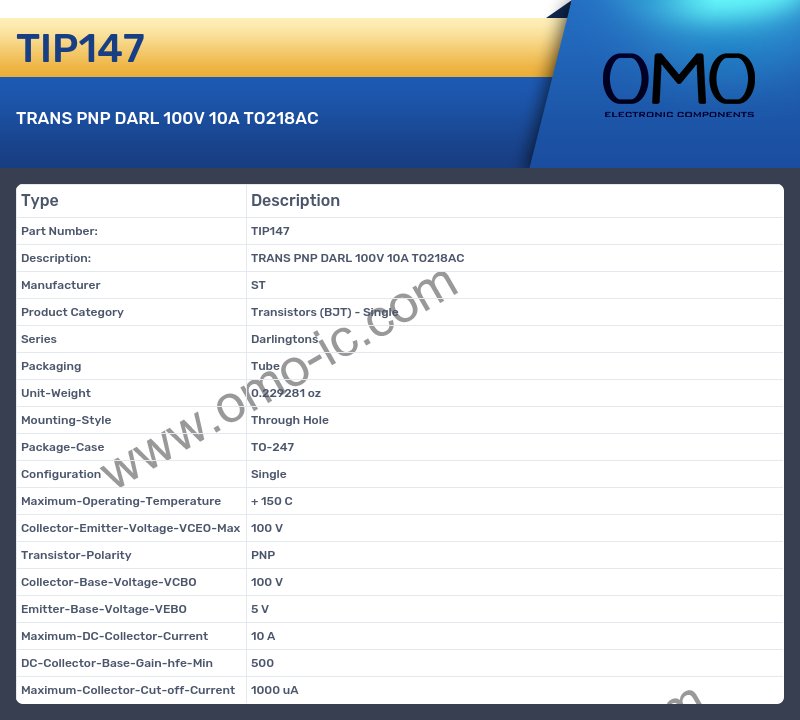

TIP147 Image

TIP147 Specifications

• Manufacturer ST
• Product Category Transistors (BJT) - Single
• Series Darlingtons
• Packaging Tube
• Unit-Weight 0.229281 oz
• Mounting-Style Through Hole
• Package-Case TO-247
• Configuration Single
• Maximum-Operating-Temperature + 150 C
• Collector-Emitter-Voltage-VCEO-Max 100 V
• Transistor-Polarity PNP
• Collector-Base-Voltage-VCBO 100 V
• Emitter-Base-Voltage-VEBO 5 V
• Maximum-DC-Collector-Current 10 A
• DC-Collector-Base-Gain-hfe-Min 500
• Maximum-Collector-Cut-off-Current 1000 uA
