| Mfr. #: | TIP36C |
|---|---|
| 製造商: | STMicroelectronics |
| 描述: | Bipolar Transistors - BJT PNP Gen Pur Powe |
| 生命週期: | 製造商新產品 |
| 數據表: | TIP36C 數據表 |
Product belongs to the TIP36C series. Tube is the packaging method for this product Weight of 0.229281 oz Through Hole Mounting-Style TO-247-3 Through Hole mounting type Supplier device package: TO-247 Configuration Single Transistor type: PNP Maximum current collector Ic is 25A . Maximum collector-emitter breakdown voltage of 100V DC current gain minimum (hFE) of Ic/Vce at 15 @ 15A, 4V. Product Attribute: Vce-Saturation-Max-Ib-Ic: 4V @ 5A, 25A Power-off control: 125 W Maximum operating temperature of + 150 C Minimum operating temperature: - 65 C Rated VCEO up to 100 V The transistor polarity is PNP. Saturation voltage between collector and emitter is 1.8 V The 100 V voltage rating is 40 V. 5 V rating of 5 V Max DC collector current: 25 A Gain-Bandwidth-Product: 3 MHz This product is capable of handling a 25 A continuous collector current. Minimum hfe for DC collector-base gain is 25.
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

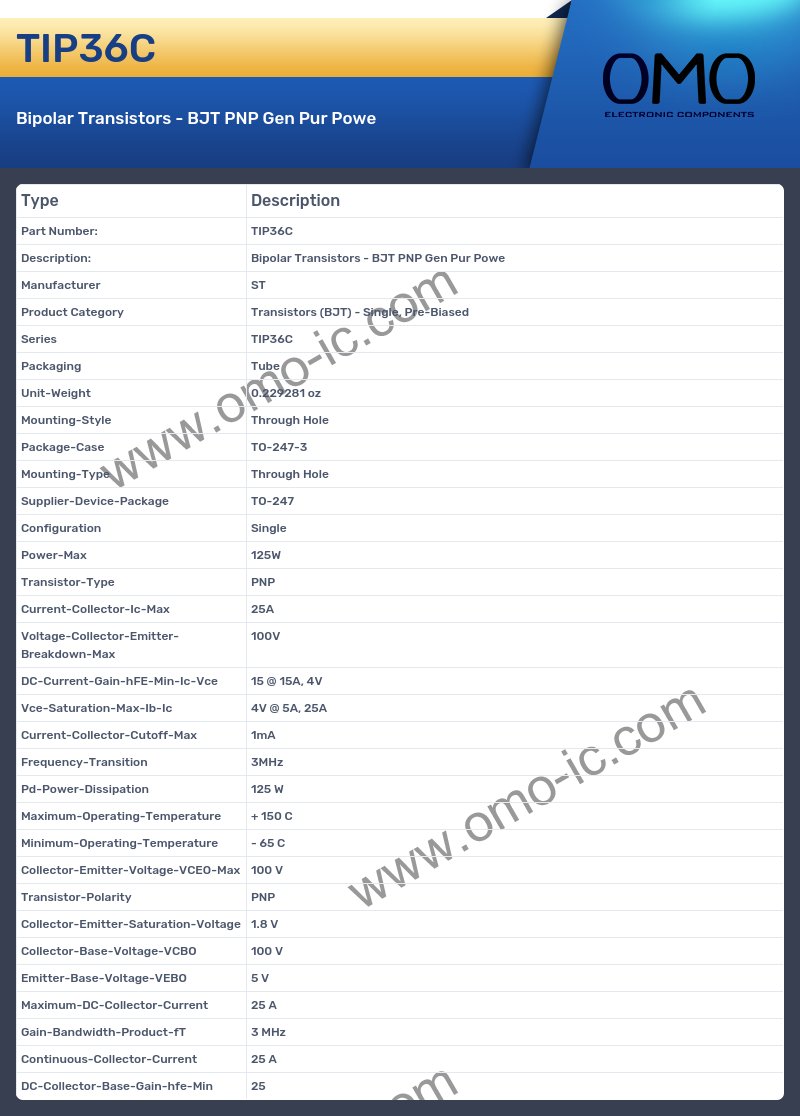

TIP36C Specifications
A: Is the cutoff frequency of the product Series?
Q: Yes, the product's Series is indeed TIP36C
A: At what frequency does the Packaging?
Q: The product Packaging is Tube.
A: Is the cutoff frequency of the product Unit-Weight?
Q: Yes, the product's Unit-Weight is indeed 0.229281 oz
A: At what frequency does the Mounting-Style?
Q: The product Mounting-Style is Through Hole.
A: Is the cutoff frequency of the product Package-Case?
Q: Yes, the product's Package-Case is indeed TO-247-3
A: At what frequency does the Mounting-Type?
Q: The product Mounting-Type is Through Hole.
A: Is the cutoff frequency of the product Supplier-Device-Package?
Q: Yes, the product's Supplier-Device-Package is indeed TO-247
A: Is the cutoff frequency of the product Configuration?
Q: Yes, the product's Configuration is indeed Single
A: What is the Transistor-Type of the product?
Q: The Transistor-Type of the product is PNP.
A: At what frequency does the Current-Collector-Ic-Max?
Q: The product Current-Collector-Ic-Max is 25A.
A: At what frequency does the Voltage-Collector-Emitter-Breakdown-Max?
Q: The product Voltage-Collector-Emitter-Breakdown-Max is 100V.
A: At what frequency does the DC-Current-Gain-hFE-Min-Ic-Vce?
Q: The product DC-Current-Gain-hFE-Min-Ic-Vce is 15 @ 15A, 4V.
A: Is the cutoff frequency of the product Vce-Saturation-Max-Ib-Ic?
Q: Yes, the product's Vce-Saturation-Max-Ib-Ic is indeed 4V @ 5A, 25A
A: At what frequency does the Pd-Power-Dissipation?
Q: The product Pd-Power-Dissipation is 125 W.
A: At what frequency does the Maximum-Operating-Temperature?
Q: The product Maximum-Operating-Temperature is + 150 C.
A: What is the Minimum-Operating-Temperature of the product?
Q: The Minimum-Operating-Temperature of the product is - 65 C.
A: At what frequency does the Collector-Emitter-Voltage-VCEO-Max?
Q: The product Collector-Emitter-Voltage-VCEO-Max is 100 V.
A: What is the Transistor-Polarity of the product?
Q: The Transistor-Polarity of the product is PNP.
A: At what frequency does the Collector-Emitter-Saturation-Voltage?
Q: The product Collector-Emitter-Saturation-Voltage is 1.8 V.
A: What is the Collector-Base-Voltage-VCBO of the product?
Q: The Collector-Base-Voltage-VCBO of the product is 100 V.
A: What is the Emitter-Base-Voltage-VEBO of the product?
Q: The Emitter-Base-Voltage-VEBO of the product is 5 V.
A: What is the Maximum-DC-Collector-Current of the product?
Q: The Maximum-DC-Collector-Current of the product is 25 A.
A: What is the Gain-Bandwidth-Product-fT of the product?
Q: The Gain-Bandwidth-Product-fT of the product is 3 MHz.
A: At what frequency does the Continuous-Collector-Current?
Q: The product Continuous-Collector-Current is 25 A.
A: At what frequency does the DC-Collector-Base-Gain-hfe-Min?
Q: The product DC-Collector-Base-Gain-hfe-Min is 25.
