TL026CPE4 Overview

Product belongs to the TL026 series. This product is categorized as Video Amplifiers Tube Alternate Packaging is the packaging method for this product Weight of 0.015521 oz Through Hole Mounting-Style PDIP-8 Through Hole mounting type Output-Type: Differential Versatile Automatic Gain Control (AGC) applications for maximum usability Number of channels: 1 Channel Supplier device package: 8-PDIP 1 is 8. Voltage supply range: ±3 V ~ 8 V This product has a 22mA of 200μA. The 50MHz The -. Current-Output-Channel is 4mA The amplifier is of General Purpose Amplifier type. Power-off control: 1000 mW Maximum operating temperature of + 70 C Minimum operating temperature: 0 C 27 mA is 92 nA. Input bias current of 30 uA at +/- 6 V The CMRR-Common-Mode-Rejection-Ratio is 60 dB. Gain in voltage per voltage: 85 V/V 50 MHz is the 3-dB bandwidth of the product. 38.59 dB voltage gain

TL026CPE4 Image

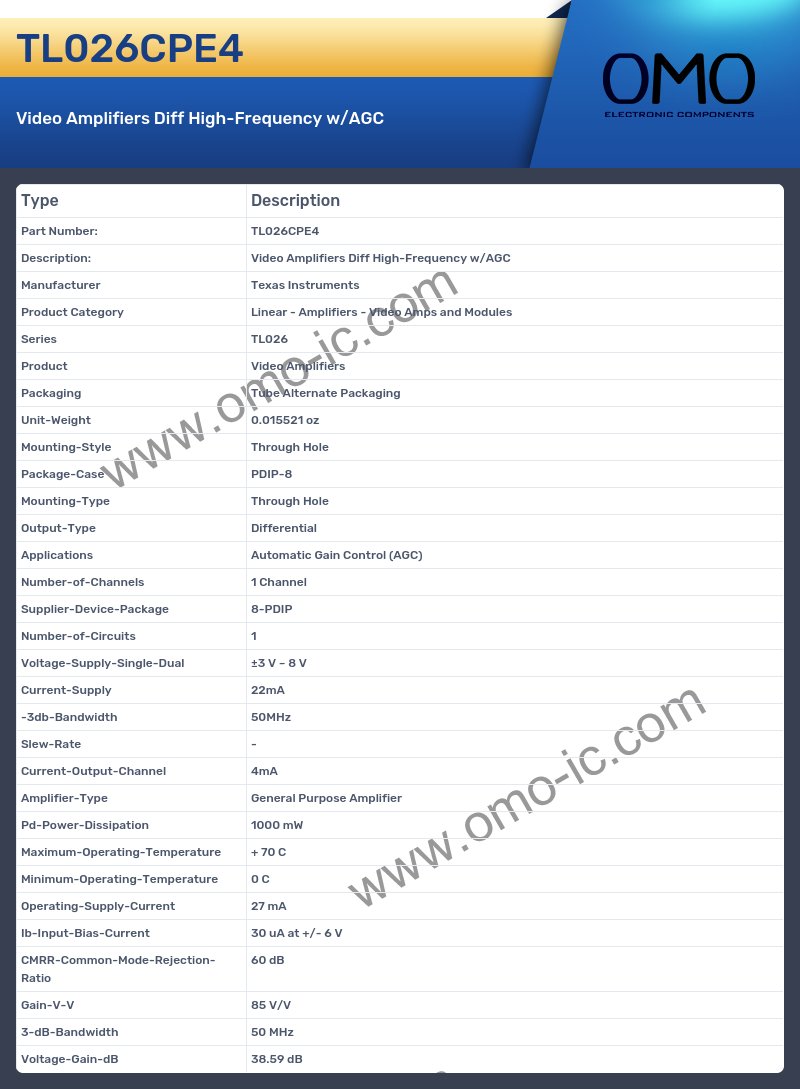

TL026CPE4 Specifications

• Manufacturer Texas Instruments
• Product Category Linear - Amplifiers - Video Amps and Modules
• Series TL026
• Product Video Amplifiers
• Packaging Tube Alternate Packaging
• Unit-Weight 0.015521 oz
• Mounting-Style Through Hole
• Package-Case PDIP-8
• Mounting-Type Through Hole
• Output-Type Differential
• Applications Automatic Gain Control (AGC)
• Number-of-Channels 1 Channel
• Supplier-Device-Package 8-PDIP
• Number-of-Circuits 1
• Voltage-Supply-Single-Dual ±3 V ~ 8 V
• Current-Supply 22mA
• -3db-Bandwidth 50MHz
• Slew-Rate -
• Current-Output-Channel 4mA
• Amplifier-Type General Purpose Amplifier
• Pd-Power-Dissipation 1000 mW
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Operating-Supply-Current 27 mA
• Ib-Input-Bias-Current 30 uA at +/- 6 V
• CMRR-Common-Mode-Rejection-Ratio 60 dB
• Gain-V-V 85 V/V
• 3-dB-Bandwidth 50 MHz
• Voltage-Gain-dB 38.59 dB
